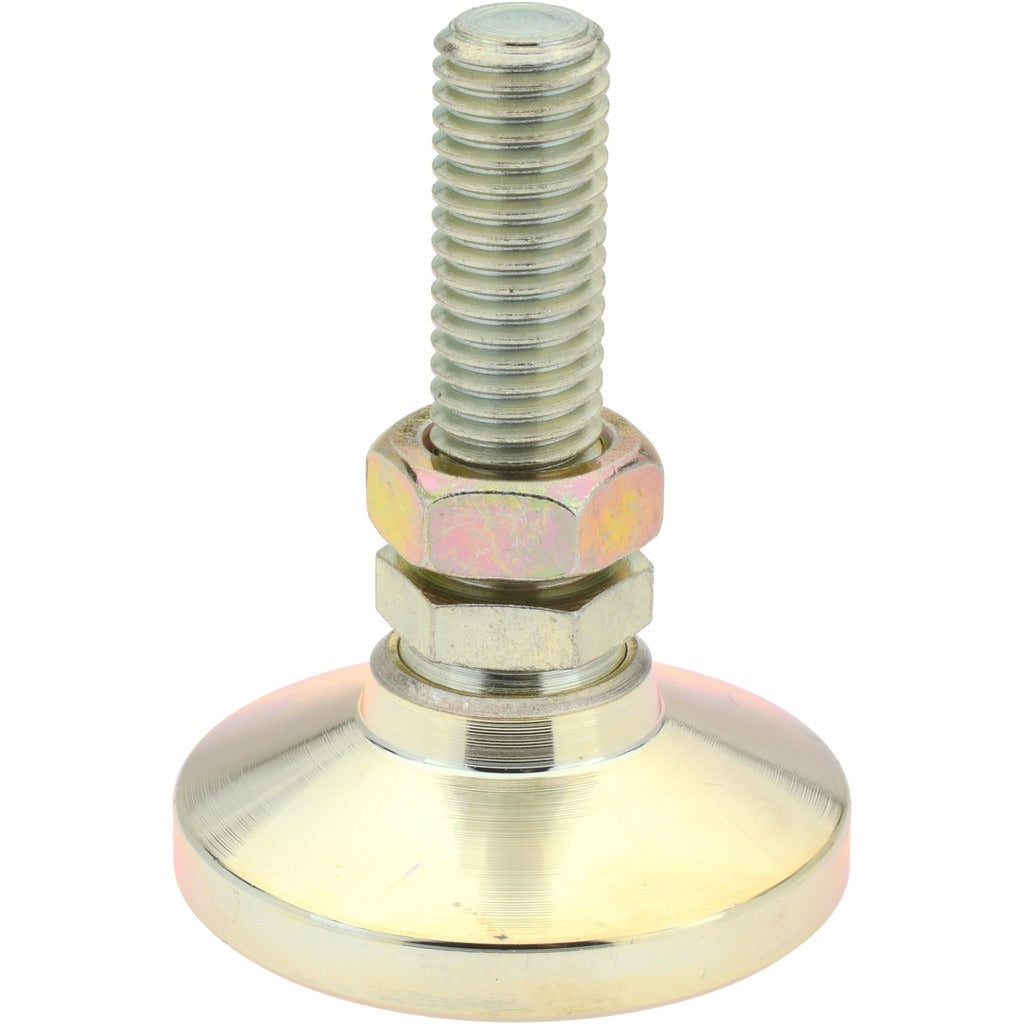

Gibraltar BSW-3Z-G Studded Pivotal Leveling Mount 6000 Lb

Product Description

The GIBRALTAR BSW-3Z-G is a studded pivotal leveling mount designed to support and precisely level industrial machinery, equipment frames, and structural assemblies. The mount features a steel pad base and a threaded steel stud, allowing it to pivot and adjust to uneven floor surfaces while maintaining a stable footing. It carries a static load capacity of 6,000 pounds, making it suitable for heavy-duty applications. The 5/8-11 bolt thread provides a secure, standardized connection point. Installers in industrial maintenance, millwright, and general mechanical trades rely on this type of hardware for equipment alignment and vibration isolation tasks.

This leveling mount is suited for use in commercial and light industrial environments where machinery, conveyor supports, workbenches, or equipment stands require firm and adjustable floor contact. The pivoting pad compensates for minor floor irregularities without requiring shims or additional hardware. The compact base diameter of 2.5 inches keeps the footprint manageable even in tight equipment layouts. It is typically installed during initial machine positioning or when re-leveling equipment after relocation.

Key Features

• 6,000 lb static load capacity for heavy-duty equipment support
• Pivotal steel pad base accommodates uneven or sloped floor surfaces
• 5/8-11 threaded stud for standardized bolt connection
• 2.5 inch base diameter provides stable footing in compact spaces
• All-steel construction for durability in industrial environments
• Overall length of 3.25 inches for moderate height adjustment clearance

Compatibility

Designed as a standard OEM-style leveling mount for industrial machinery, equipment stands, and structural frames requiring adjustable floor support with a 5/8-11 threaded stud connection.

Installation Notes

Installation is typically performed by millwrights or industrial maintenance technicians. Before installing or adjusting leveling mounts, de-energize and lock out all connected equipment per applicable OSHA lockout/tagout procedures. Use a calibrated level and appropriate wrenches to achieve proper machine alignment. Do not exceed the rated load capacity of 6,000 pounds per mount point.
