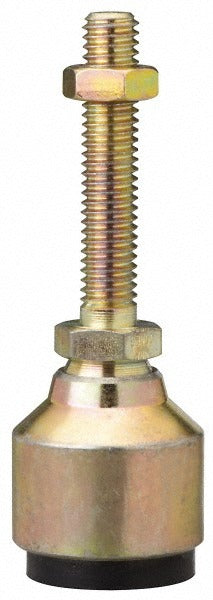

Gibraltar BSW-3L-G Studded Leveling Mount 5/8-11

Product Description

The GIBRALTAR BSW-3L-G is a studded leveling mount designed for industrial and commercial equipment positioning applications. It provides a stable, adjustable base for machinery, workbenches, enclosures, and similar equipment that requires precise floor-level alignment. The mount features a 5/8-11 threaded stud with a 220 lb load capacity, a 2.5-inch base diameter zinc pad, and a zinc stud construction. It is installed by maintenance technicians, millwrights, and mechanical contractors working on equipment leveling and vibration isolation tasks.

This leveling mount suits applications where equipment must be leveled on uneven or hard flooring surfaces, including production floors, service bays, and utility rooms. The 2-inch stud length provides adequate adjustment range for typical floor-level corrections. The 3.875-inch overall length accommodates standard mounting configurations. A 7/8-inch hex size allows for straightforward torquing with common hand tools during installation or periodic re-leveling.

Key Features

• 220 lb load capacity per mount for reliable equipment support
• 5/8-11 threaded stud for secure attachment to equipment bases
• Zinc stud and zinc pad construction for corrosion resistance in shop environments
• 2.5-inch base diameter pad provides stable floor contact footprint
• 2-inch stud length with 3.875-inch overall length for adequate leveling range
• 7/8-inch hex size compatible with standard wrenches for easy adjustment

Compatibility

Designed as an OEM-style replacement or direct-install leveling mount for industrial and commercial equipment requiring 5/8-11 threaded studded leveling feet.

Installation Notes

Leveling mounts of this type are installed by millwrights, maintenance technicians, or mechanical contractors. De-energize and safely support any equipment before adjusting or replacing leveling feet. Use an appropriately sized wrench on the 7/8-inch hex to tighten or adjust the stud position. Verify load distribution across all leveling points before returning equipment to service.
