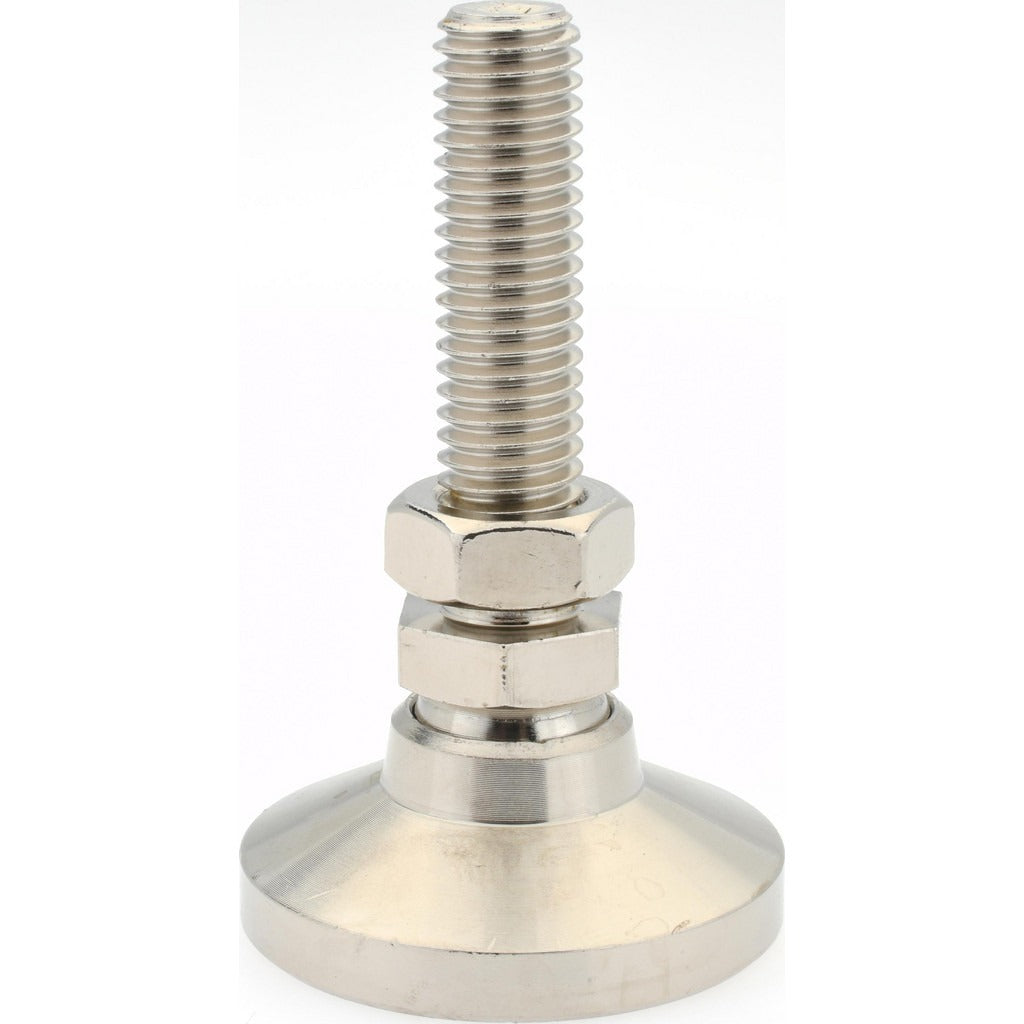

Gibraltar BSW-2N-G Studded Pivotal Leveling Mount 5000 Lb

Product Description

The GIBRALTAR BSW-2N-G is a studded pivotal leveling mount designed to support heavy stationary equipment and provide precise floor-level adjustment in industrial and commercial applications. The mount features a steel stud and a steel pad, giving it a rated load capacity of 5,000 pounds. The pivoting base allows the foot to self-level on uneven surfaces, reducing stress on the stud and the mounted equipment. The overall length measures 3-1/8 inches, making it suited for installations where a compact footprint is required. Millwrights, maintenance technicians, and industrial installers typically specify this hardware when anchoring equipment frames, machinery bases, or skid-mounted assemblies.

This leveling mount is appropriate for use in manufacturing facilities, mechanical rooms, and commercial equipment installations where rigid, adjustable support is needed. The 1-7/8 inch base diameter and 1/2-13 bolt thread size are common dimensions for medium-duty equipment feet, fitting a wide range of machine bases and frames. The pivotal design accommodates minor floor irregularities without shimming, making it a practical choice for both new installations and retrofits where floor surfaces are not perfectly flat.

Key Features

• 5,000 lb load capacity for heavy stationary equipment support
• Pivotal base self-levels on uneven floor surfaces
• Steel stud and steel pad construction for durability
• 1/2-13 bolt thread size for broad hardware compatibility
• 1-7/8 inch base diameter with a compact 3-1/8 inch overall length

Compatibility

Designed as an OEM-style replacement or direct-install leveling mount for industrial machinery, equipment frames, and skid bases requiring a 1/2-13 threaded stud and a pivotal steel foot.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians using standard hand tools. De-energize and lock out any powered equipment before positioning or adjusting leveling mounts. Thread the stud into the equipment base to the appropriate engagement depth before setting the unit on the floor surface. Verify load distribution across all mount points before returning the equipment to service.
