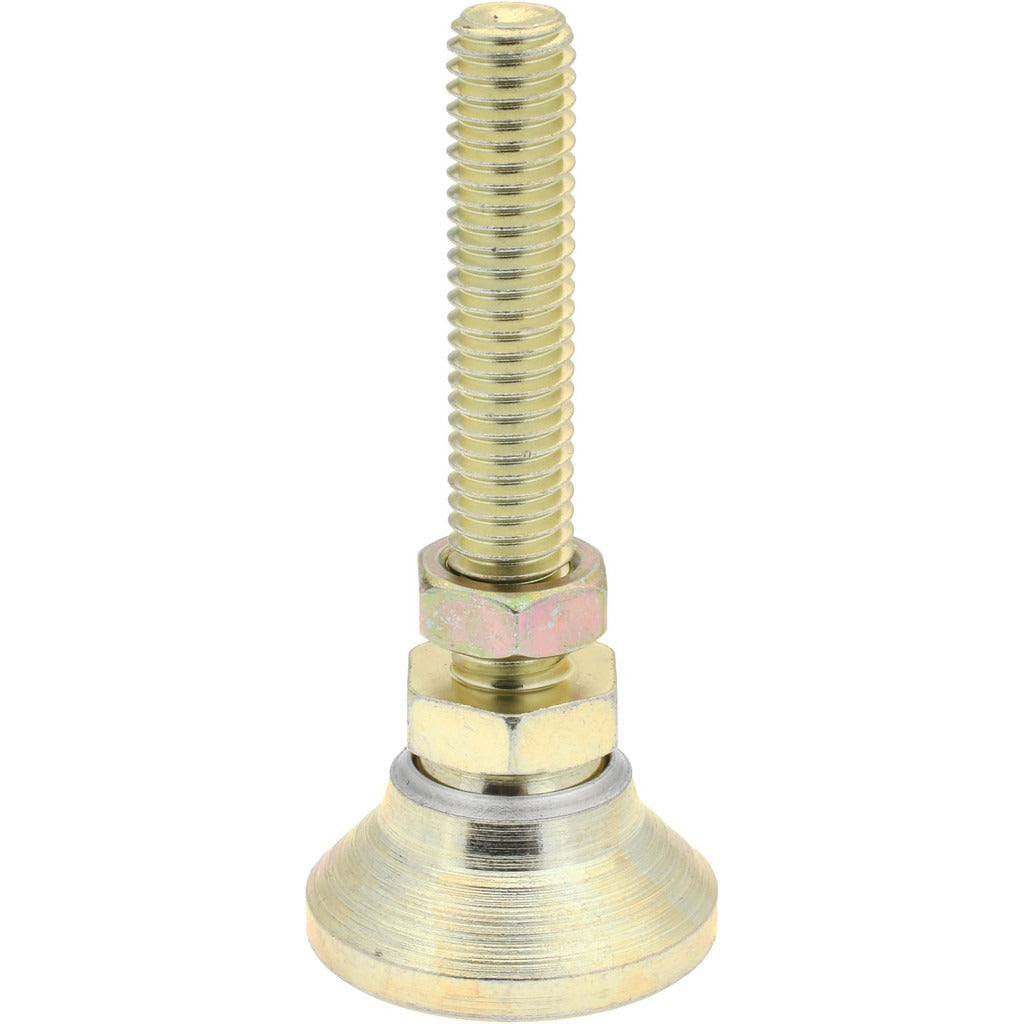

Gibraltar BSW-1Z-G Studded Pivotal Leveling Mount 3750 Lb

Product Description

The GIBRALTAR BSW-1Z-G is a studded pivotal leveling mount designed to provide stable, adjustable support for equipment, machinery, and structural components in trade and industrial applications. The mount features a steel pad and steel stud construction, rated for a load capacity of 3,750 pounds. The pivotal base design allows for angular adjustment to compensate for uneven mounting surfaces, keeping equipment level without shimming. With a 1.25-inch base diameter and an overall length of 2.875 inches, this compact mount is suited for use where space is limited but load-bearing stability is required. Installation is straightforward and is handled by millwrights, pipefitters, HVAC technicians, and general mechanical contractors.

This leveling mount is used in light industrial, commercial mechanical, and HVAC equipment installations where machinery or equipment bases must be leveled on concrete pads, equipment racks, or structural frames. The 3/8-16 bolt thread size is a common standard thread pattern, making it compatible with a wide range of equipment mounting plates and frames. It is appropriate for both new installations and field service adjustments where existing mounts need replacement.

Key Features

• 3,750 lb load capacity for reliable support of heavy equipment
• Pivotal base design allows angular adjustment to level on uneven surfaces
• Steel pad and steel stud construction for durability in mechanical environments
• 3/8-16 bolt thread size matches common equipment mounting hardware
• Compact 1.25-inch base diameter fits tight mounting footprints
• Overall length of 2.875 inches provides moderate height adjustment range

Compatibility

Designed as a general-purpose OEM-style leveling mount for equipment and machinery requiring a 3/8-16 threaded stud and a 1.25-inch base diameter footprint in commercial and light industrial settings.

Installation Notes

Installation is typically performed by licensed mechanical contractors, millwrights, or HVAC technicians. Power down and de-energize all associated equipment before replacing or adjusting leveling mounts. Use appropriate torque practices for the 3/8-16 thread to avoid stripping the stud or mounting plate threads. Verify load distribution across all mounting points before returning equipment to service.
