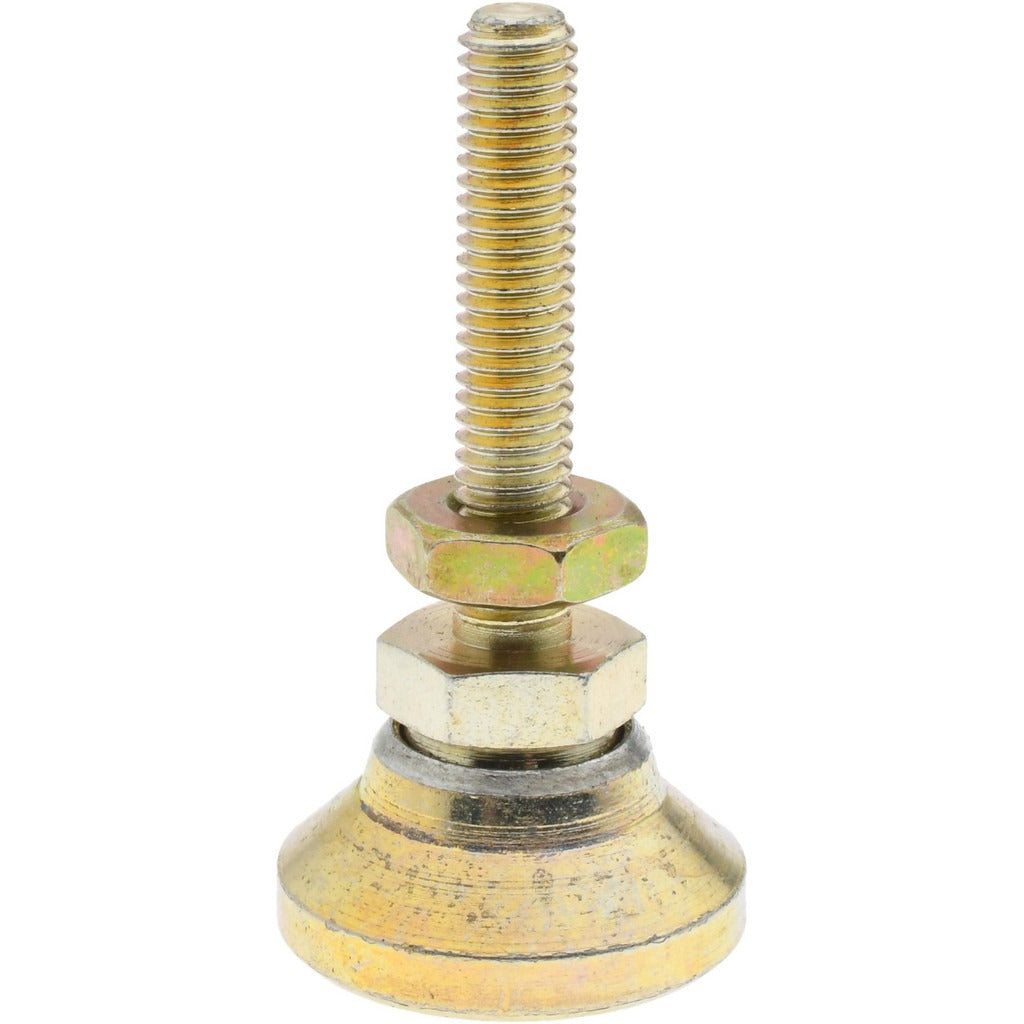

Gibraltar BSW-00Z-G Studded Pivotal Leveling Mount 700 Lb

Product Description

The GIBRALTAR BSW-00Z-G is a studded pivotal leveling mount designed to support and level equipment, machinery, and structural assemblies in industrial and commercial applications. The mount features a steel stud with a 10-32 bolt thread and a steel pad base, allowing for angular adjustment to compensate for uneven mounting surfaces. At 0.75 inches in base diameter and 1.5 inches in length, this is a compact, heavy-duty fastener-style leveling solution. The 700 lb load capacity makes it suitable for demanding load-bearing installations. Technicians in HVAC, mechanical, and general industrial trades install this type of mount during equipment positioning and alignment work.

This leveling mount is used wherever precise equipment leveling is required on uneven or angled surfaces. Typical applications include mounting HVAC equipment bases, machinery feet, control panels, and structural supports that require angular float to achieve a level plane. The pivotal design of the steel pad allows the base to self-align under load, reducing stress on the stud. Its compact form factor makes it suitable for tight mounting locations where larger leveling feet would not fit.

Key Features

• 700 lb load capacity supports demanding industrial and commercial equipment mounting
• Pivotal steel pad base allows angular adjustment for uneven or non-parallel mounting surfaces
• 10-32 bolt thread size for compatibility with standard threaded mounting hardware
• Steel stud and steel pad construction for durability in trade environments
• Compact 0.75 inch base diameter and 1.5 inch length for use in tight installations

Compatibility

Designed as an OEM-style leveling mount for industrial, commercial, and HVAC equipment assemblies that use 10-32 threaded stud leveling hardware with a standard base mounting footprint.

Installation Notes

Installation is performed by HVAC technicians, millwrights, or mechanical tradespeople during equipment setting and alignment procedures. Power down and de-energize all connected equipment before installing or adjusting leveling mounts. Use appropriate thread engagement depth for the 10-32 stud to ensure full load capacity is achieved. Verify final equipment level with a precision level instrument before returning the system to service.
