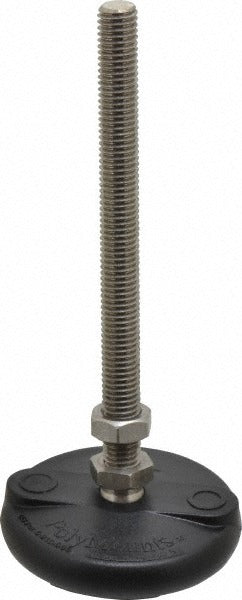

Gibraltar BSNYLB36-G Stud Mount Leveling Pad 5000 Lb

Product Description

The GIBRALTAR BSNYLB36-G is a studded pivotal stud mount leveling pad designed to provide stable, adjustable equipment support in industrial and commercial applications. Rated for a maximum load capacity of 5,000 pounds, this leveling pad features a 1/2-13 bolt thread for secure stud mounting and a 3-inch base diameter for a solid footprint. At 7 inches in length and weighing 0.53 pounds, it offers a compact yet heavy-duty solution. Licensed tradespeople and maintenance technicians rely on this style of mount to level machinery, HVAC equipment, compressors, and other floor-mounted units where precise height adjustment and vibration damping are required.

This leveling pad is suited for use in light manufacturing facilities, mechanical rooms, and commercial equipment installations where floor-mounted units require firm, adjustable support. The pivotal design allows the pad to compensate for minor floor irregularities, keeping equipment level without shimming. It is commonly installed under compressors, air handlers, pumps, and similar stationary mechanical equipment in both new construction and retrofit applications.

Key Features

• 5,000 pound maximum load capacity for heavy-duty equipment support
• 1/2-13 bolt thread for standard stud mount installation
• 3-inch base diameter provides a stable floor contact area
• 7-inch overall length allows for meaningful height adjustment range
• Pivotal design compensates for minor floor irregularities without additional shimming
• Lightweight at 0.53 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation leveling pad for floor-mounted mechanical equipment requiring a 1/2-13 stud mount configuration with up to 5,000 pounds of load capacity per pad.

Installation Notes

Installation is typically performed by maintenance technicians or millwrights following equipment manufacturer specifications. Power down and de-energize all connected equipment before adjusting or replacing leveling pads. Ensure the mounting surface thread engagement is sufficient for the rated load before bringing equipment back to full operation. Verify floor levelness with a precision level after installation to confirm proper equipment alignment.
