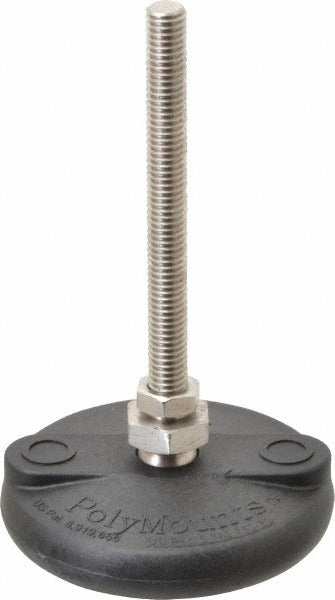

Gibraltar BSNYLA34-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BSNYLA34-EL-G is a studded pivotal leveling mount designed to provide stable, adjustable support for industrial equipment, machinery, and fabricated assemblies. Rated at 5,000 lb load capacity, this mount combines a 3-inch base diameter elastomer pad with a stainless steel stud to isolate vibration and resist corrosion under demanding service conditions. The pivotal design allows angular adjustment so the mount can compensate for uneven or slightly sloped mounting surfaces without compromising load distribution. At 0.28 pounds, it is compact and easy to handle during installation. Maintenance techs, millwrights, and equipment installers working on production floors, mechanical rooms, or outdoor pads will find this mount suited to a wide range of leveling applications.

This leveling mount is used wherever precise equipment leveling and vibration isolation are required. Typical applications include positioning HVAC air handlers, compressors, pumps, and light industrial machinery on concrete pads or structural steel. The elastomer pad absorbs operational vibration to reduce transmission to the mounting surface. The stainless steel stud resists corrosion in wet, chemical, or outdoor environments. The 5-inch stud length provides enough adjustment range for leveling across surface irregularities. The 3/8-16 bolt thread is a common industrial thread standard, making hardware sourcing straightforward on most job sites.

Key Features

• 5,000 lb load capacity supports heavy equipment and machinery
• Elastomer pad provides vibration isolation and floor protection
• Stainless steel stud resists corrosion in wet or outdoor environments
• 3-inch base diameter distributes load evenly across the mounting surface
• Pivotal design compensates for uneven or angled mounting surfaces
• 3/8-16 bolt thread size matches common industrial fastener standards

Compatibility

Designed as a standard studded pivotal leveling mount for industrial and commercial equipment requiring a 3/8-16 stud thread, 3-inch base footprint, and up to 5,000 lb load capacity.

Installation Notes

Installation is typically performed by millwrights, mechanical contractors, or equipment technicians. De-energize and lock out all equipment before positioning or adjusting leveling mounts. Ensure the mating surface is clean and free of debris before seating the elastomer pad. Thread engagement and mount torque should follow the equipment manufacturer's specifications and applicable facility codes.
