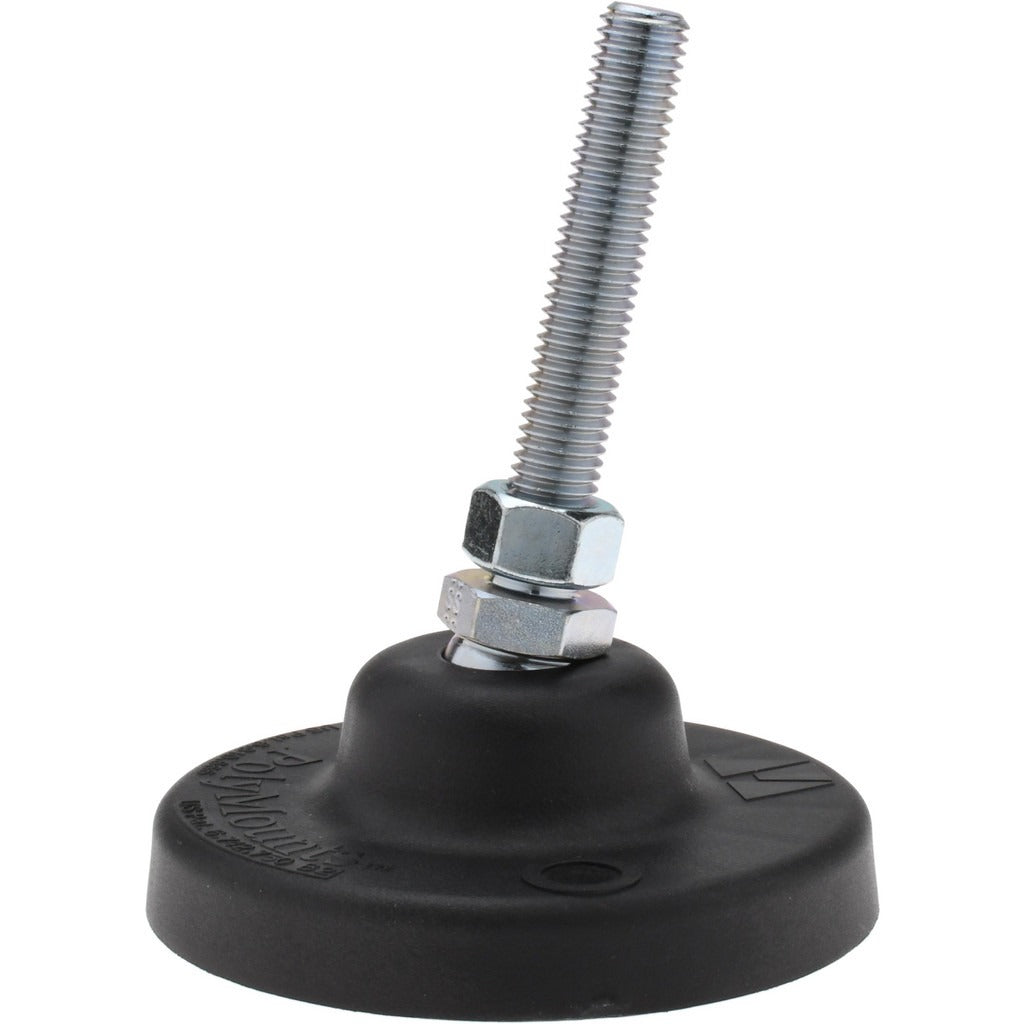

Gibraltar BNYLC54-G Studded Pivotal Leveling Mount 10000 Lb

Product Description

The GIBRALTAR BNYLC54-G is a studded pivotal leveling mount designed for heavy industrial and commercial equipment positioning applications. Featuring a 5-inch steel base pad and a 5/8-11 threaded steel stud, this mount provides firm, adjustable leveling support for machinery, frames, and structural assemblies. With a rated load capacity of 10,000 pounds, it handles demanding static loads found in industrial settings. The pivotal base allows the pad to self-adjust to uneven floor surfaces, maintaining full contact and distributing load evenly. Licensed trades and equipment installation crews rely on this type of mount for precise equipment leveling during installation and commissioning.

This leveling mount is suited for industrial and commercial environments where heavy equipment must be leveled, stabilized, or isolated from floor irregularities. Typical applications include machinery bases, production equipment frames, conveyors, heavy workbenches, and structural supports. The 5/8-11 stud thread size is a common industrial fastener standard, making this mount compatible with a wide range of pre-tapped mounting feet and frame assemblies. It is packaged and sold individually.

Key Features

• 10,000 lb rated load capacity for heavy industrial equipment support
• Pivotal base pad self-adjusts to uneven floor surfaces for full contact load distribution
• 5-inch diameter steel base pad for a stable, broad footprint
• 5/8-11 threaded steel stud — a widely used industrial thread standard
• Overall length of 6.25 inches for installation clearance in standard equipment frames
• Steel construction throughout for durability under sustained static loads

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for heavy industrial and commercial equipment requiring a 5/8-11 studded pivotal foot with a 5-inch base diameter and 10,000 lb load capacity.

Installation Notes

Installation is typically performed by millwrights, mechanical contractors, or equipment installation crews. Before installing or adjusting leveling mounts, ensure the equipment is de-energized, de-pressurized, and safely supported to prevent shifting. Thread the stud into the equipment base to the required engagement depth and adjust height as needed before locking the assembly in place. Consult the equipment manufacturer's specifications for minimum thread engagement and any applicable floor anchoring requirements.
