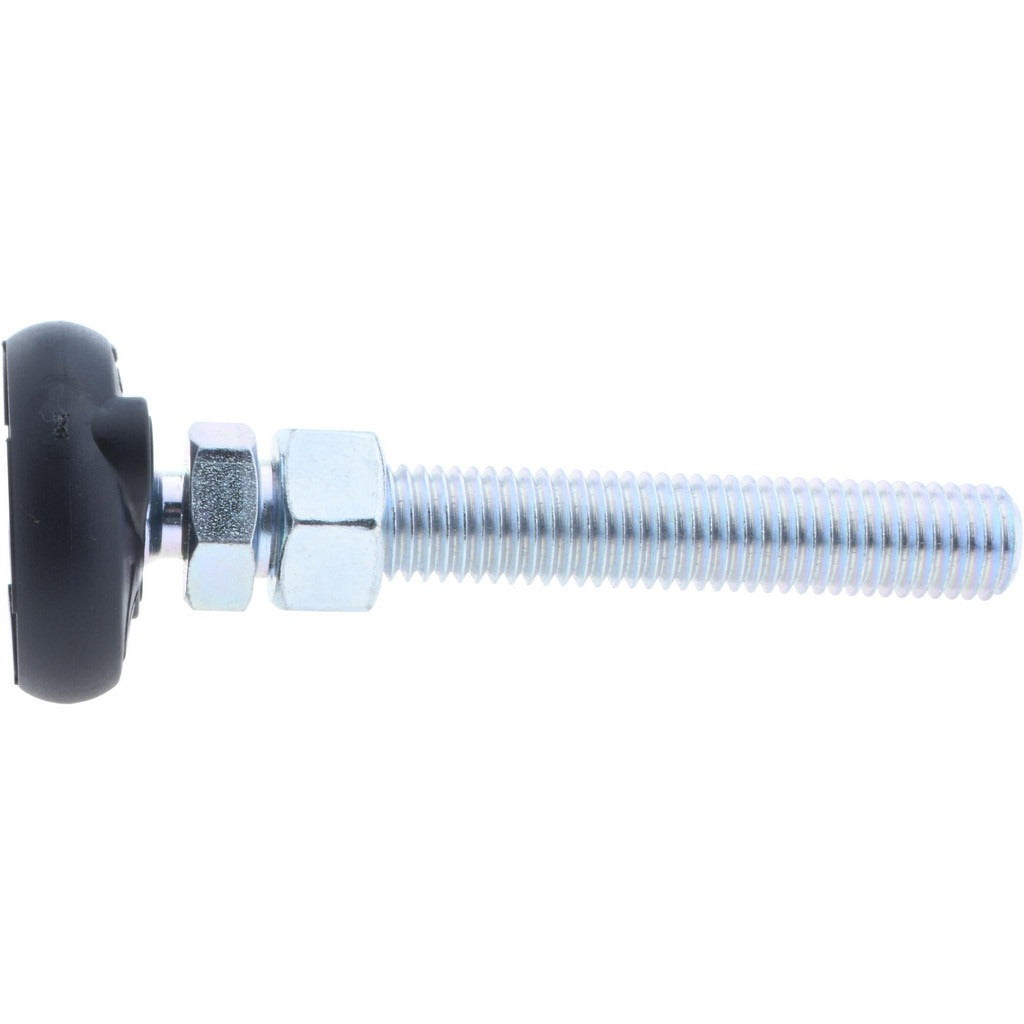

Gibraltar BNYLC24-G Studded Pivotal Leveling Mount 4000 Lb

Product Description

The GIBRALTAR BNYLC24-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. The mount features a steel stud and a steel pad base, with a pivoting action that allows the foot to self-align on uneven surfaces. With a 4,000 lb load capacity, it is built for heavy-duty stationary equipment installations where precise leveling and vibration isolation are required. The 5-inch length and 2-inch base diameter make it suitable for applications where a compact footprint with solid load-bearing capability is needed. Installers in industrial, mechanical, and HVAC equipment settings are the primary users of this type of hardware.

This leveling mount is used in commercial and light industrial environments to support equipment bases, compressor skids, fan frames, pump assemblies, and similar machinery that requires precise leveling after placement. The pivotal pad design accommodates minor floor irregularities without requiring a perfectly flat mounting surface. It is threaded for direct installation into pre-tapped equipment feet or can be used with a matching nut for through-bolt applications. The 5/8-11 bolt thread size is a common industrial fastener standard, making sourcing compatible hardware straightforward in the field.

Key Features

• 4,000 lb rated load capacity for heavy stationary equipment support
• Pivotal pad design self-levels on minor surface irregularities
• Steel stud and steel pad construction for durability in industrial environments
• 5/8-11 bolt thread size matches common industrial fastener standards
• 2-inch base diameter provides a compact footprint with solid contact area
• 5-inch overall length allows for meaningful height adjustment range

Compatibility

Designed as an OEM-style replacement or direct-install leveling foot for industrial and commercial equipment requiring a 5/8-11 threaded stud mount with a 2-inch steel pad base.

Installation Notes

Installation is typically performed by millwrights, mechanical contractors, or HVAC equipment technicians during equipment placement or re-leveling service. Power down and de-energize all connected equipment before adjusting or replacing leveling mounts under load. Use a calibrated level and tighten lock nuts to secure the mount position once the equipment is leveled. Do not exceed the rated 4,000 lb load capacity per mount point.
