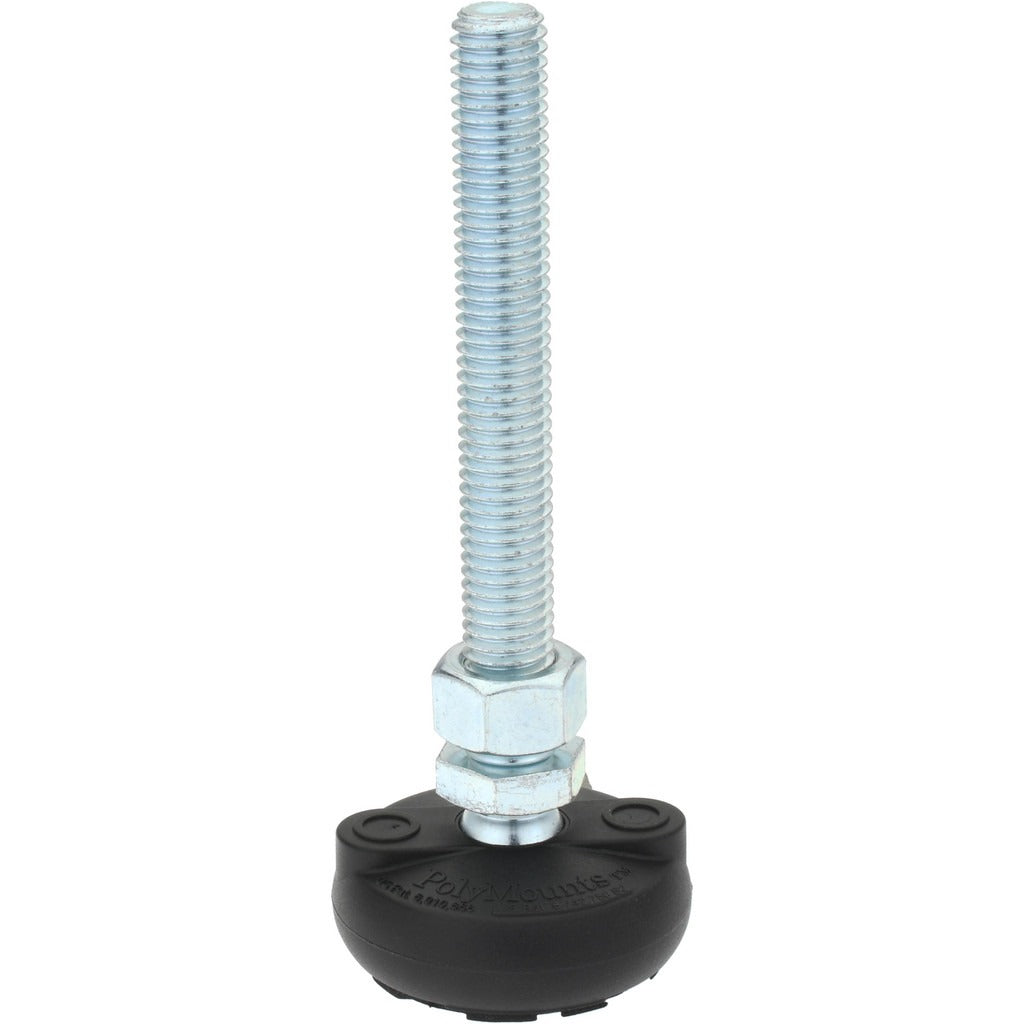

Gibraltar BNYLB24-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BNYLB24-EL-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. The mount features a steel stud with a 1/2-13 bolt thread and a 2-inch base diameter elastomer pad that absorbs vibration while allowing angular pivoting to compensate for uneven floors. Rated at 4,000 lb load capacity, it is suitable for heavy-duty static and light-dynamic loading applications. Installation is typically performed by millwrights, maintenance mechanics, or industrial technicians during equipment leveling and alignment work.

This leveling mount is suited for industrial and commercial environments where equipment must be precisely leveled on concrete or steel flooring. Common applications include machine tool bases, conveyor frames, compressors, and similar stationary equipment that requires periodic height or angle adjustment. The elastomer pad provides a non-marring, vibration-dampening interface between the equipment base and the floor surface. At 5 inches in overall length, the mount offers meaningful height adjustment range for most standard equipment bases.

Key Features

• 4,000 lb load capacity for heavy-duty equipment support
• Elastomer pad absorbs vibration and protects floor surfaces
• Pivotal design compensates for angular misalignment on uneven floors
• Steel stud construction for structural rigidity under load
• 1/2-13 bolt thread for compatibility with standard hardware
• 2-inch base diameter provides a stable footprint

Compatibility

Designed as an OEM-style leveling mount for machinery, equipment frames, and industrial bases requiring a 1/2-13 studded mount with a 2-inch elastomer base pad.

Installation Notes

Installation is performed by threading the steel stud into the equipment base and adjusting height until the load is evenly distributed across all mount points. De-energize and lock out all power sources before positioning or adjusting equipment. Verify that all mount points reach the rated load capacity and that the elastomer pad makes full contact with the floor surface. Follow applicable OSHA machine guarding and lockout/tagout procedures during installation.
