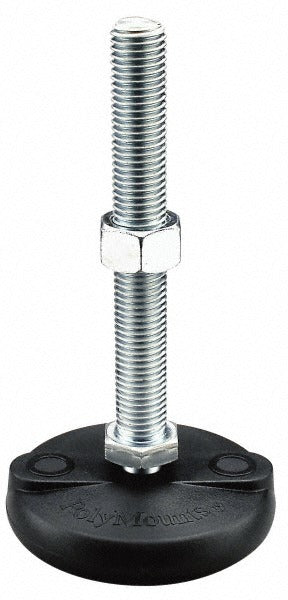

Gibraltar BNYLA36-EL-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR BNYLA36-EL-G is a studded pivotal leveling mount designed to support and level heavy industrial equipment. The mount features a steel stud with a 3/8-16 bolt thread size and a 3-inch diameter base fitted with an elastomer pad that absorbs vibration and protects flooring surfaces. With a rated load capacity of 5,000 lb, this leveling mount is suited for stationary machinery, fabrication equipment, compressors, and similar trade or industrial applications. The overall length is 7 inches, and the unit weighs approximately 0.34 pounds. It is typically installed by millwrights, mechanical contractors, or equipment technicians during machine setup or relocation.

This leveling mount is appropriate for use in commercial and industrial settings where precise equipment leveling is required on hard floor surfaces such as concrete or steel. The pivotal base design allows the foot to self-adjust to minor floor irregularities, maintaining even load distribution. Applications include HVAC equipment bases, compressor skids, manufacturing machinery, and other stationary mechanical systems requiring stable, adjustable footing.

Key Features

• 5,000 lb rated load capacity for heavy equipment support
• 3-inch base diameter with elastomer pad for vibration dampening and floor protection
• Steel stud construction for durability in industrial environments
• 3/8-16 bolt thread size for standard hardware compatibility
• Pivotal base self-adjusts to uneven floor surfaces
• 7-inch overall length provides adjustable leveling range

Compatibility

Designed as a direct-fit leveling mount for stationary industrial and commercial equipment requiring a 3/8-16 threaded stud mount with a 3-inch base footprint.

Installation Notes

Installation is performed by threading the steel stud into the pre-tapped equipment base or mounting frame. Always de-energize and lock out equipment before repositioning or adjusting leveling mounts. Use a wrench on the stud flats to set the desired height, then secure with a jam nut if provided by the equipment manufacturer. Verify load distribution across all mounting points before returning equipment to service.
