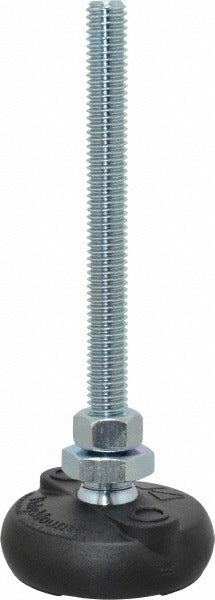

Gibraltar BNYLA24-G Pivotal Leveling Mount 4000 Lb

Product Description

The GIBRALTAR BNYLA24-G is a studded pivotal leveling mount designed to support and level heavy equipment in industrial and commercial applications. The mount features a steel pad and steel stud construction, offering a static load capacity of 4,000 pounds. The pivoting pad allows for angle adjustment to accommodate uneven floors or machine bases, reducing stress on the mounting point. At 5 inches in length with a 2-inch base diameter, this compact mount fits into tight footprints without sacrificing load-bearing performance. It is installed by millwrights, maintenance technicians, and mechanical contractors during equipment placement and alignment tasks.

This leveling mount is suited for use in manufacturing facilities, warehouses, and mechanical rooms where heavy machinery, frames, or enclosures require stable, adjustable floor support. The 3/8-16 bolt thread is a common standard thread size, making it compatible with a wide range of threaded holes in equipment bases and mounting plates. It is appropriate for both new equipment installation and retrofit leveling applications on existing machinery.

Key Features

• 4,000 lb static load capacity for heavy equipment support
• Pivoting pad design accommodates angular misalignment and uneven surfaces
• Steel pad and steel stud construction for industrial durability
• 3/8-16 bolt thread for compatibility with standard threaded equipment bases
• 2-inch base diameter in a compact 5-inch overall length

Compatibility

Designed as an OEM-style replacement or direct-installation leveling mount for equipment bases and machinery frames requiring a 3/8-16 threaded stud mount with a 4,000 lb load rating.

Installation Notes

Installation is typically performed by millwrights or mechanical technicians during equipment setup or realignment. De-energize and lock out all associated equipment before adjusting or replacing leveling mounts under load. Use appropriate thread-locking practices on the stud to prevent loosening from vibration. Verify that the floor surface and equipment base can support the rated load prior to final positioning.
