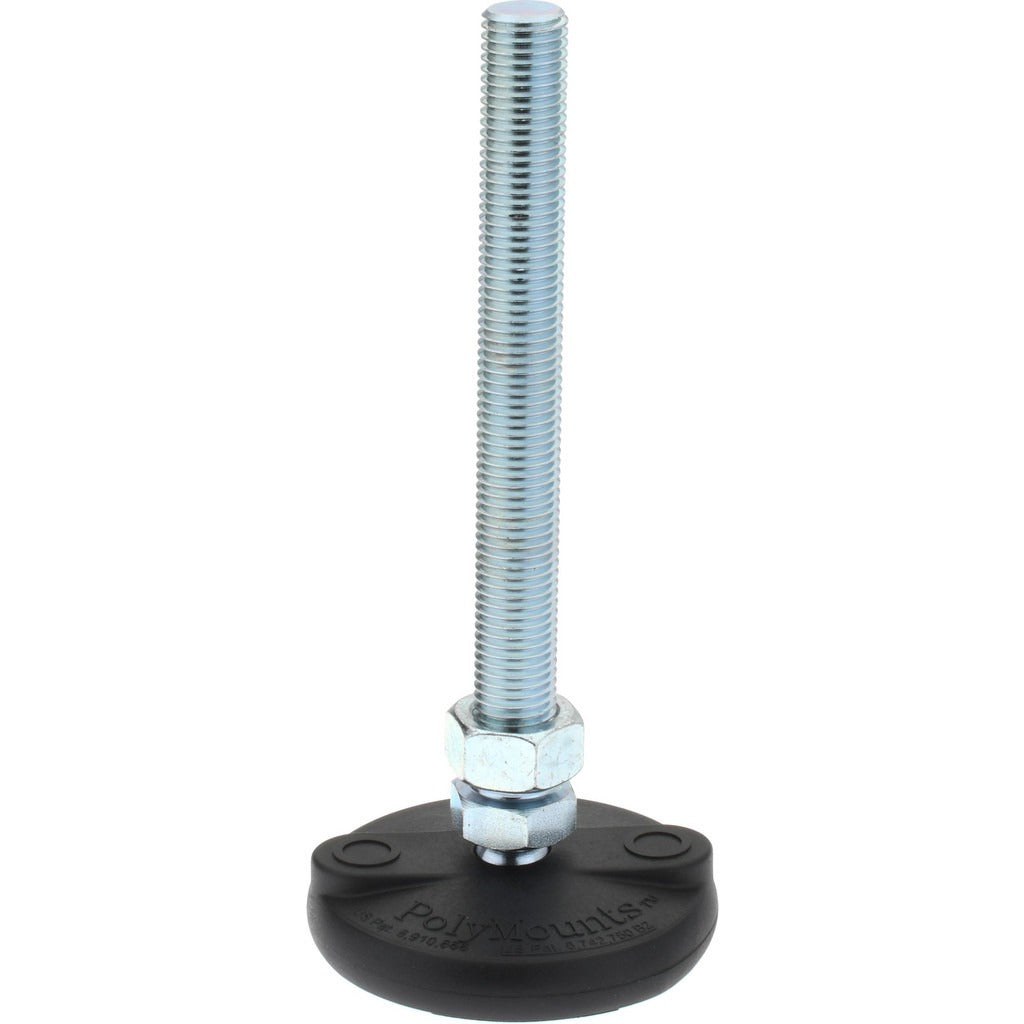

Gibraltar BMNYLC36-G Studded Pivotal Leveling Mount M16

Product Description

The GIBRALTAR BMNYLC36-G is a studded pivotal leveling mount designed to support heavy industrial equipment while allowing precise height and angle adjustment. Built with a steel pad base and a steel stud, this mount delivers a rated load capacity of 2,270 kilograms. The base diameter measures 76 millimeters, and the overall length is 181.0 millimeters (approximately 7.1 inches). The M16 bolt thread stud provides a secure connection point to the equipment frame. This type of mount is commonly installed by millwrights, maintenance mechanics, and industrial technicians during equipment installation or realignment work.

Studded pivotal leveling mounts like the BMNYLC36-G are used in industrial and commercial settings where heavy machinery, frames, or skid-mounted equipment must be precisely leveled on concrete or structural steel floors. The pivoting pad compensates for minor floor irregularities, distributing load evenly across the base. This mount suits applications in manufacturing facilities, processing plants, and mechanical equipment rooms where stable, adjustable equipment support is required.

Key Features

• 2,270 kg load capacity for heavy industrial equipment support
• Pivotal pad design compensates for uneven or out-of-level floor surfaces
• 76 mm steel base pad provides a stable, corrosion-resistant footprint
• M16 steel stud threads securely into equipment frame tapped holes
• 181.0 mm overall length allows for meaningful height adjustment range
• Sold as a single unit for per-mount replacement or new installation

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for industrial equipment frames, machine bases, and skid assemblies with M16 tapped mounting holes.

Installation Notes

Installation is typically performed by millwrights or qualified maintenance technicians. De-energize and lock out the equipment before beginning any leveling or mount adjustment work, per OSHA lockout/tagout procedures. Use an appropriately rated wrench on the M16 stud and jam nut to set and secure the desired height. Verify load distribution across all mount points with a precision level before returning the equipment to service.
