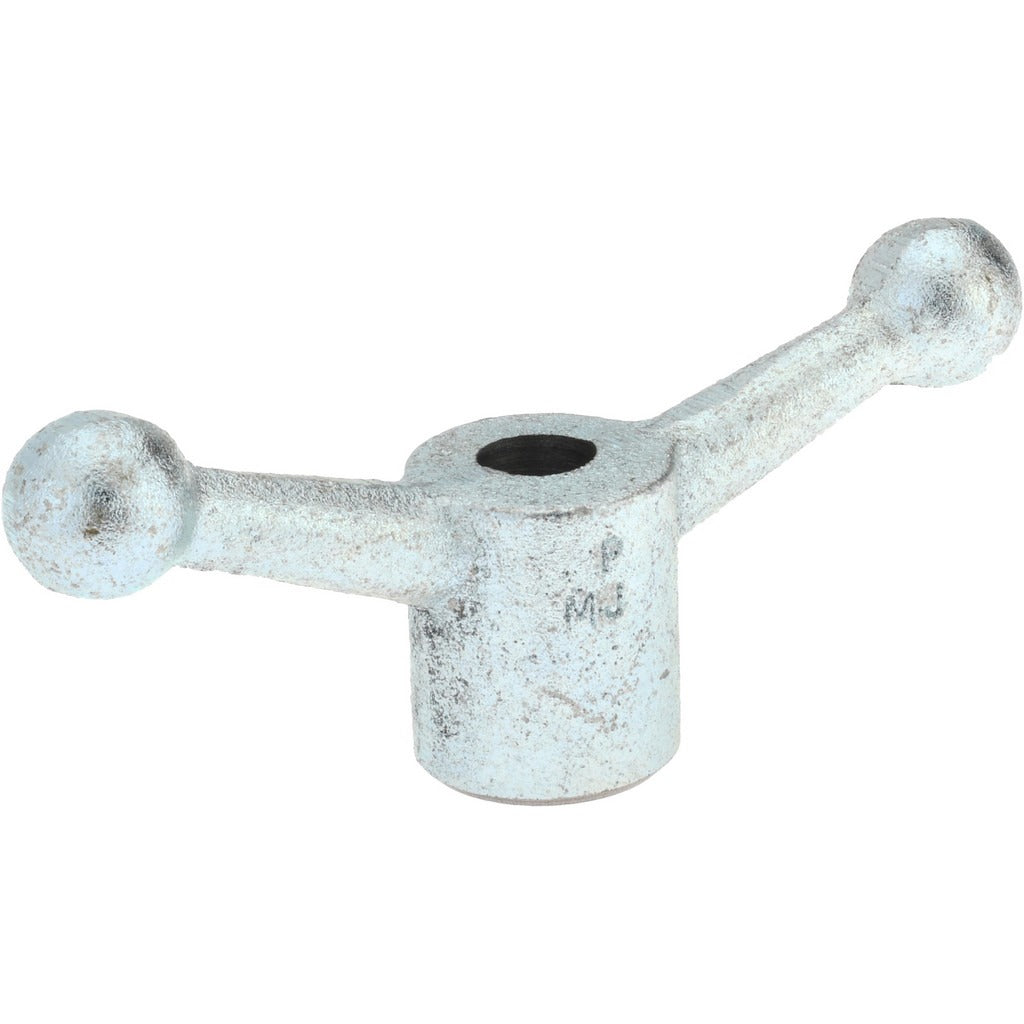

Gibraltar BH101-G Speed Handle 2 Offset Arms Zinc Plated

Product Description

The GIBRALTAR BH101-G is a zinc-plated cast iron speed handle designed for use with machine tools, vises, jigs, and fixture assemblies where quick manual adjustment is required. It features two offset arms and a reamed hole measuring 0.499 inches in diameter, allowing a precise fit onto a mating shaft or stud. The hub diameter is 1.125 inches and the arm diameter is 0.500 inches, giving operators a firm, ergonomic grip during tightening and loosening operations. At 1 pound, this handle is built for repeated use in shop and industrial environments. Machinists, toolmakers, and maintenance technicians are the primary installers of this type of hardware.

The BH101-G is suited for light industrial and machine tool applications where a hand-operated speed handle provides faster operation than a standard wrench or lever. The offset arm configuration improves clearance in tight mounting areas and reduces knuckle interference during rotation. It is a common replacement or upgrade for manual clamping fixtures, drill press tables, milling machine accessories, and similar equipment requiring repeated hand-tightening cycles. The reamed bore ensures consistent fit tolerances for reliable shaft engagement.

Key Features

• Two offset arms for improved clearance and ergonomic rotation in confined spaces
• Reamed hole at 0.499 inches diameter for precise shaft fit
• Cast iron construction provides rigidity and resistance to deformation under repeated use
• Zinc-plated finish offers corrosion resistance for shop and light industrial environments
• 0.750 inch ball diameter for comfortable grip during manual operation
• Compact hub diameter of 1.125 inches suits standard fixture and machine tool mounting points

Compatibility

Designed as an OEM-style replacement or direct-fit speed handle for machine tools, fixtures, and industrial equipment requiring a 0.499 inch reamed bore with a two-arm offset configuration.

Installation Notes

Installation is performed by machinists or maintenance technicians using standard hand tools. Ensure the mating shaft or stud is clean and free of burrs before pressing or sliding the handle onto the shaft. The reamed bore is dimensioned for a close slip fit; do not force the handle onto an oversized shaft. No power source is required for installation or operation.
