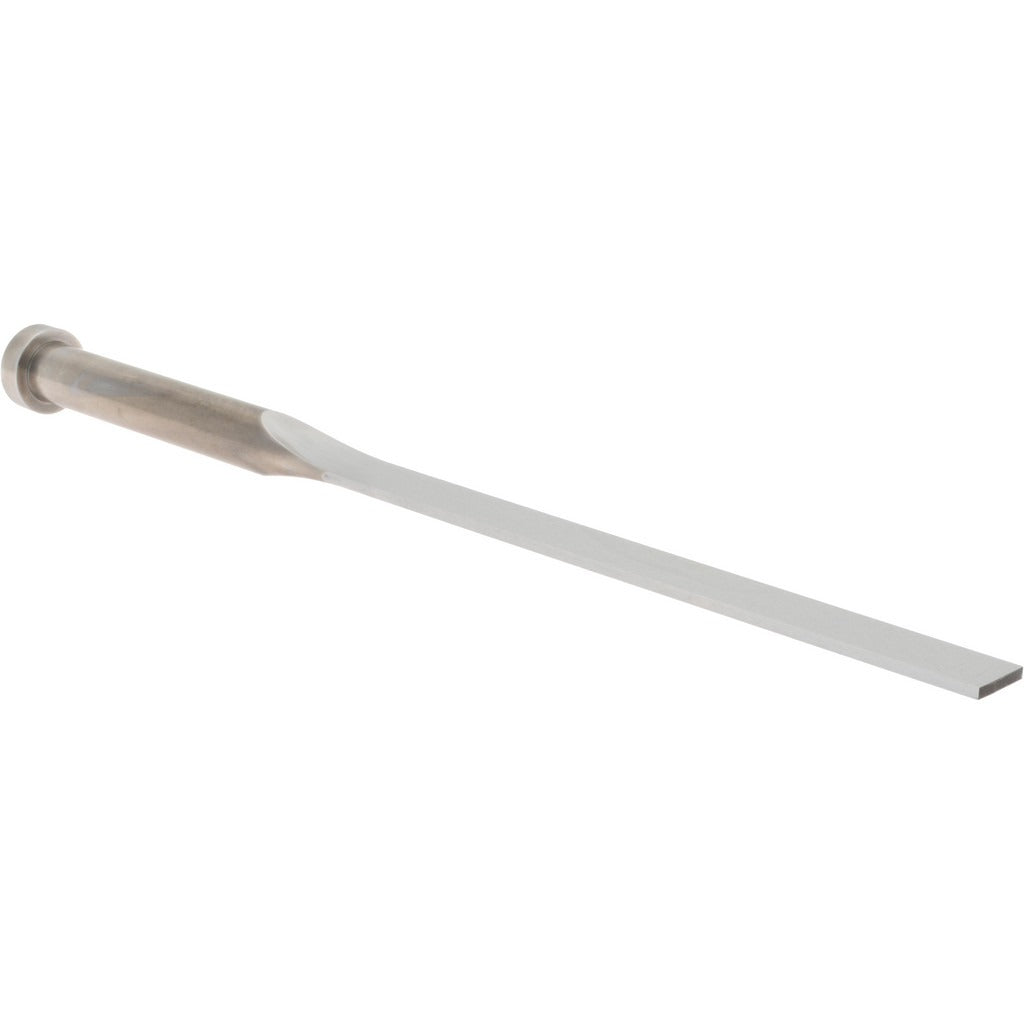

Gibraltar BE-1068 Die Mold Ejector Blade

Product Description

The GIBRALTAR BE-1068 is a die mold ejector blade engineered for use in injection mold tooling and die casting applications. Ejector blades are flat, precision-ground components used to push molded parts out of the mold cavity at the end of each cycle. The BE-1068 measures 0.094 inches thick and 0.547 inches wide, with a total height of 10.5 inches, making it suitable for molds that require a flat ejector profile rather than a round pin. This part is typically installed by tool and die technicians or mold maintenance professionals during scheduled mold servicing or component replacement.

This ejector blade is intended for use in injection molds and die casting tools that require flat blade-style ejection. The flat profile is commonly specified when ejecting thin-walled or ribbed part geometries where a round pin would not provide adequate ejection surface. The BE-1068 is packaged as a single unit, allowing for individual replacement without purchasing in bulk.

Key Features

• Blade thickness of 0.094 inches for precise fit in flat ejector pockets
• Blade width of 0.547 inches to match standard flat ejector slot dimensions
• Overall height of 10.5 inches accommodates a range of mold stack heights
• Single-unit packaging allows targeted replacement of worn or damaged blades
• Designed to GIBRALTAR manufacturing standards for dimensional consistency

Compatibility

Designed as an OEM-style replacement ejector blade for injection mold and die casting tooling that requires a flat blade ejector profile in place of a round ejector pin.

Installation Notes

Ejector blade replacement is performed by qualified tool and die technicians or mold maintenance personnel. The mold must be fully cooled, de-pressurized, and removed from the press before servicing the ejector system. Verify the blade pocket dimensions against the BE-1068 specifications before installation to ensure proper fit and travel clearance. Follow all applicable shop safety procedures when handling precision ground tooling components.
