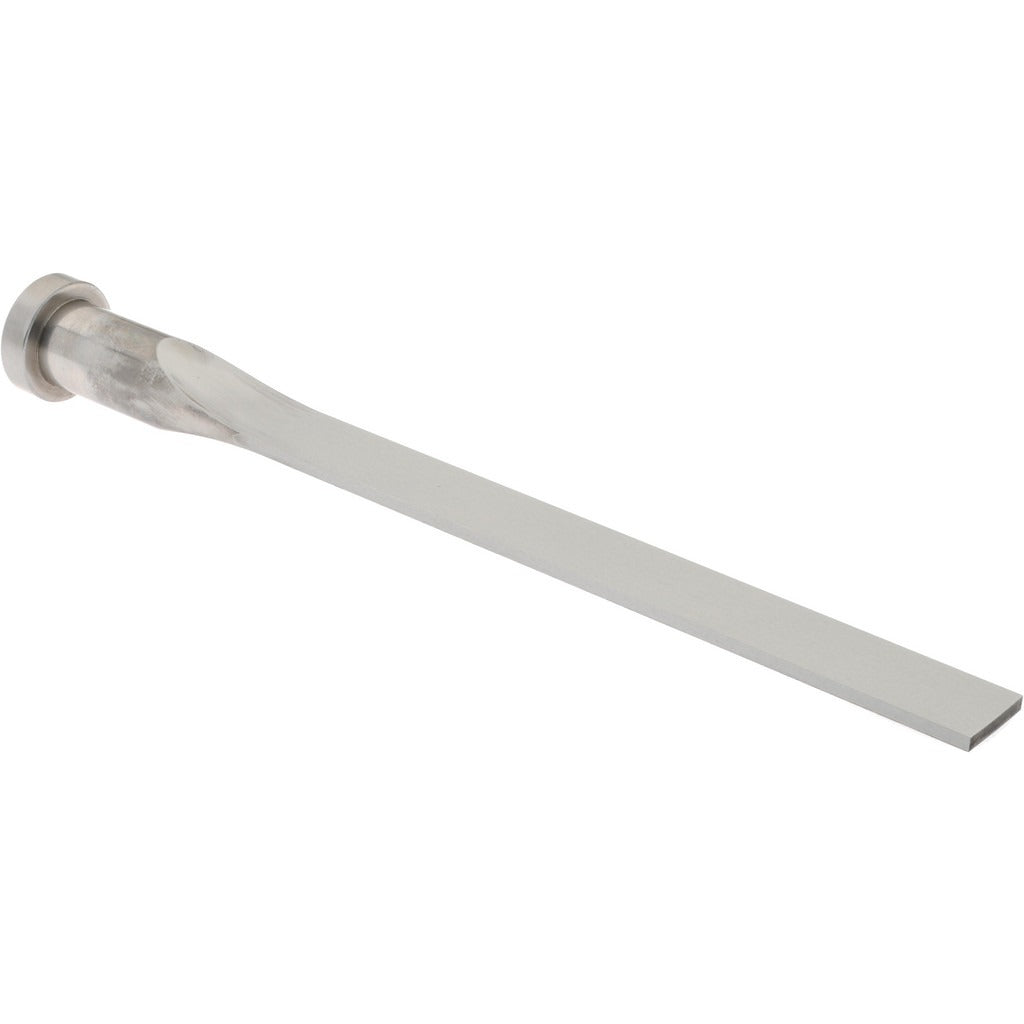

Gibraltar BE-1048 Die Mold Ejector Blade

Product Description

The GIBRALTAR BE-1048 is a die mold ejector blade designed for use in injection mold tooling applications. Ejector blades are precision-ground flat components that push molded parts free from the die cavity at the end of each press cycle. This blade measures 0.094 inches thick and 0.609 inches wide, with an overall height of 7.5 inches, making it suitable for molds requiring a flat ejection profile rather than a round ejector pin. Mold makers, toolroom machinists, and injection molding technicians are the primary installers and end users of this component.

This ejector blade is intended for use in plastic injection molds, die casting tooling, and similar molding equipment where flat ejection geometry is required. The blade profile accommodates long, narrow part geometries or ribbed features that round pins cannot properly eject. It is a direct replacement component for worn or broken ejector blades in production mold bases across a range of industrial and manufacturing settings.

Key Features

• Blade thickness of 0.094 inches for precise fitment in flat ejector blade pockets
• Blade width of 0.609 inches to accommodate flat ejection of narrow or ribbed part features
• Overall height of 7.5 inches providing adequate ejector stroke length for standard mold bases
• Packaged individually for single-piece replacement or toolroom stock
• Manufactured under the GIBRALTAR brand, a recognized name in mold component supply

Compatibility

Designed as an OEM-style replacement ejector blade for plastic injection molds and die casting tooling requiring a flat blade profile with 0.094-inch thickness and 0.609-inch width dimensions.

Installation Notes

Installation is performed by qualified mold makers or toolroom machinists. The mold must be fully de-energized, cooled, and safely secured in a press or on a bench fixture before ejector system components are accessed. Blade pockets should be inspected for wear or damage before installing a replacement blade. Consult the mold design drawings to confirm correct blade dimensions and fit before final assembly.
