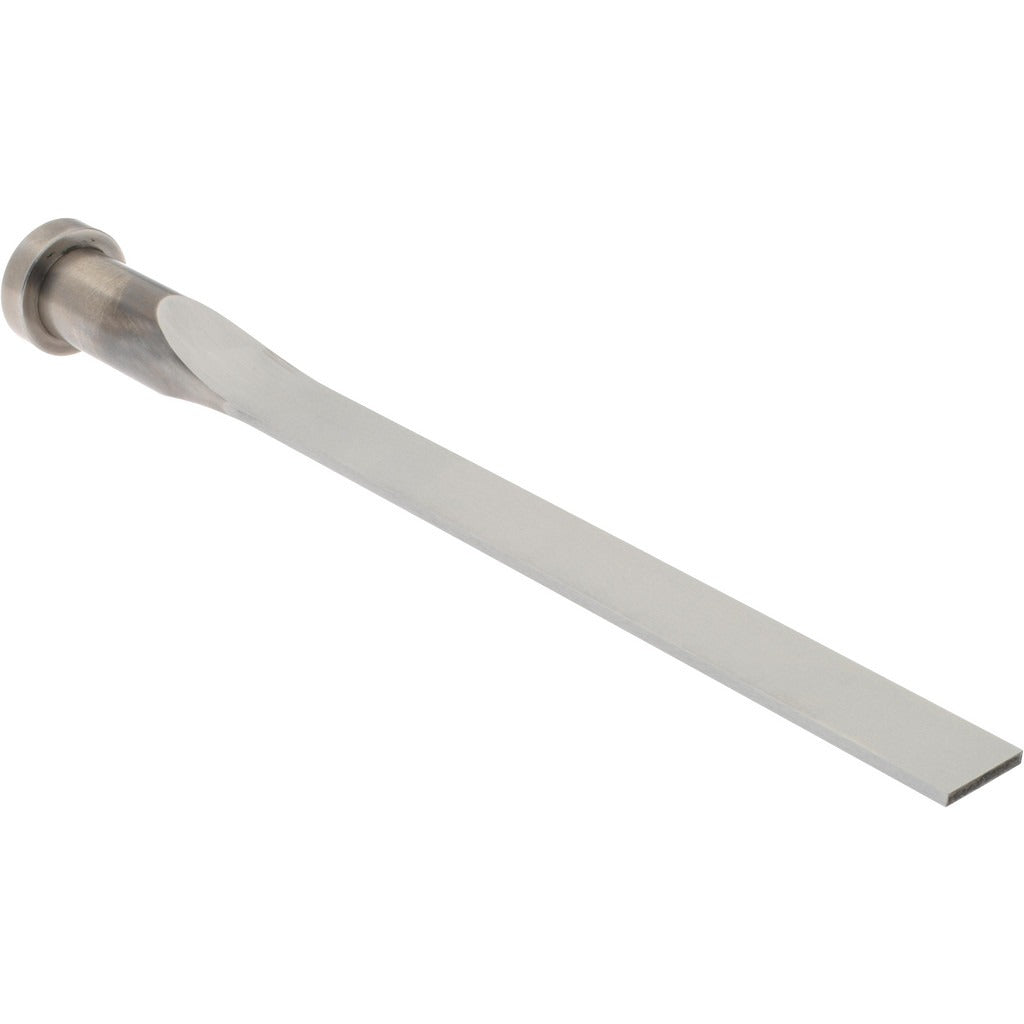

Gibraltar BE-1044 Die Mold Ejector Blade

Product Description

The GIBRALTAR BE-1044 is a die mold ejector blade designed for use in injection mold tooling applications. Ejector blades are precision-ground flat components used to push molded parts out of the mold cavity at the end of each cycle. This blade measures 0.078 inches in thickness and 0.609 inches in width, with an overall height of 7.5 inches. It is manufactured to close dimensional tolerances to ensure consistent fitment and reliable part ejection. Tool and die technicians, moldmakers, and maintenance machinists are the primary installers of this type of component.

This ejector blade is suited for use in injection molding operations where flat or blade-style ejection is required, such as ejecting thin-walled or ribbed parts where round ejector pins would not provide adequate support or contact area. It is a single-piece replacement component sold individually, making it well suited for maintenance and repair of existing mold tooling.

Key Features

• Blade thickness of 0.078 inches for precise dimensional fitment in mold tooling
• Blade width of 0.609 inches provides broad ejection contact area
• Overall height of 7.5 inches accommodates standard ejector plate configurations
• Sold as a single unit for targeted replacement without over-ordering
• Precision flat geometry supports consistent, reliable part ejection

Compatibility

Designed as an OEM-style replacement ejector blade for injection mold tooling requiring a flat blade profile with 0.078-inch thickness and 0.609-inch width.

Installation Notes

Installation of ejector blades should be performed by a qualified moldmaker or tool and die technician. Ensure the mold is fully de-energized, cooled, and removed from the press before accessing the ejector plate assembly. Blade slots in the mold should be measured and verified to match the blade dimensions prior to installation. Never force an oversized blade into a slot, as this can damage the mold steel or crack the blade.
