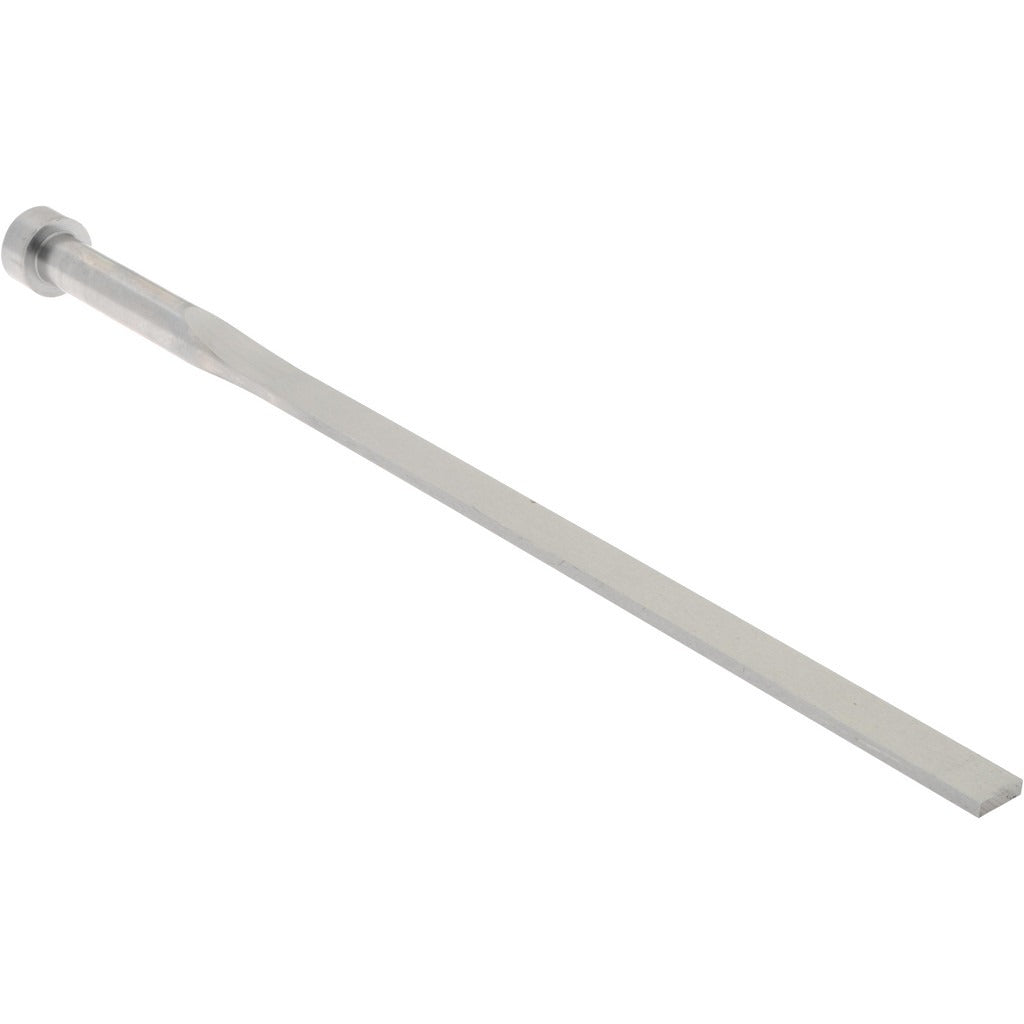

Gibraltar BE-1040 Die Mold Ejector Blade

Product Description

The GIBRALTAR BE-1040 is a die mold ejector blade designed for use in injection mold tooling applications. Ejector blades are precision-ground flat components that push molded parts out of the die cavity at the end of each injection cycle. This blade measures 0.078 inches thick and 0.296 inches wide, with an overall height of 7.5 inches. The tight dimensional tolerances on these blades are critical to consistent part ejection and long tool life. Mold makers, tooling technicians, and die maintenance professionals install and replace these components during scheduled mold maintenance or after wear-related failure.

Ejector blades like the BE-1040 are used in plastic injection molds, die casting tooling, and similar cavity-based manufacturing equipment. They are typically installed in molds producing thin-walled or flat-faced parts where a standard round ejector pin cannot provide adequate contact area for clean part release. This component is suited for shop environments running production molds that require periodic ejector system servicing.

Key Features

• Blade thickness of 0.078 inches for precise fit in mold ejector blade pockets
• Blade width of 0.296 inches provides broad contact area for flat-face part ejection
• Overall height of 7.5 inches accommodates standard mold base ejector plate travel
• Sold individually, allowing single-piece replacement without overstocking
• Package quantity of 1 supports targeted maintenance workflows

Compatibility

Designed as an OEM-style replacement ejector blade for use in injection mold tooling and die casting mold bases requiring a flat ejector component with 0.078-inch thickness and 0.296-inch width.

Installation Notes

Ejector blade replacement is performed by mold makers or tooling technicians with the mold fully removed from the press and all hydraulic or mechanical ejector systems de-energized and locked out. The mold should be cleaned and inspected before installing a new blade to confirm the ejector pocket is free of debris and within dimensional tolerance. Do not force-fit a blade that does not seat freely, as this can crack the blade or damage the mold plate. Follow the mold manufacturer's maintenance documentation for ejector system reassembly and preload specifications.
