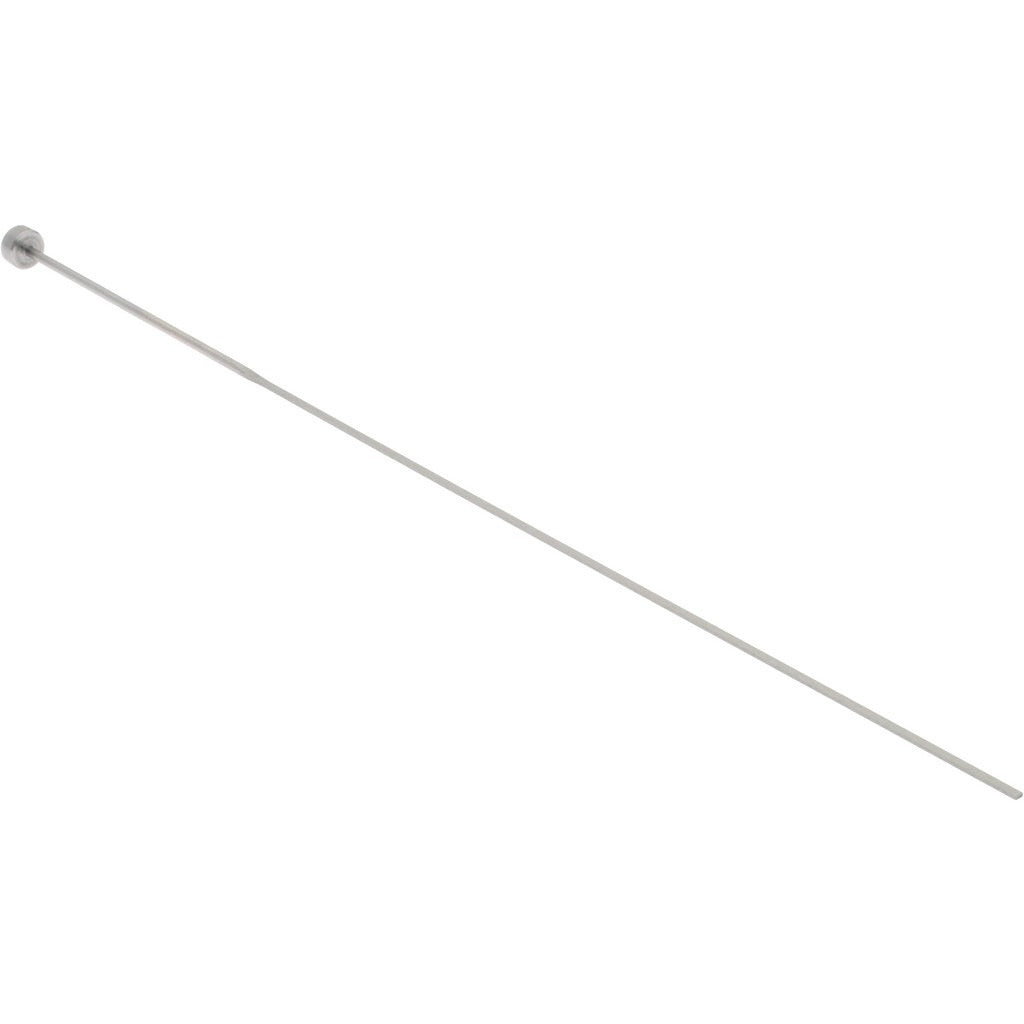

Gibraltar BE-1019 Die Mold Ejector Blade

Product Description

The GIBRALTAR BE-1019 is a die mold ejector blade designed for precision ejection in injection molding tooling applications. With a blade thickness of 0.0200 inches and a blade width of 0.0460 inches, this component provides accurate part ejection in tight-tolerance mold cavities where standard round ejector pins cannot reach. The slim blade profile is suited for ejecting flat, thin-walled, or recessed features that require a low-profile contact surface. Mold makers and tooling technicians typically source this part as a direct replacement or spare in production tooling setups.

This ejector blade is used in plastic injection mold tooling across residential and industrial manufacturing environments. It fits into ejector plate assemblies where flat blade geometry is required rather than a cylindrical pin. Applications include molds producing flat ribs, thin walls, and detail features in thermoplastic parts. The 7.5-inch height accommodates standard mold base ejector stroke requirements, and the blade is packaged individually, making it practical for single-blade replacement without excess inventory.

Key Features

• Blade thickness of 0.0200 inches for tight-slot ejection in precision mold tooling
• Blade width of 0.0460 inches enables access to narrow cavity features where round pins are not suitable
• 7.5-inch blade height fits standard ejector plate assemblies
• Single-piece packaging supports one-for-one replacement without over-ordering
• Lightweight at 0.5 pounds, minimizing added mass to ejector plate assemblies

Compatibility

Designed as an OEM-style replacement ejector blade for plastic injection mold tooling that requires flat blade geometry in the ejector system.

Installation Notes

Installation of ejector blades is performed by qualified mold makers or tooling technicians. The mold must be fully de-energized, hydraulic press pressure relieved, and the mold cooled to ambient temperature before disassembly. Blade fit should be verified against the mold base ejector blade pocket dimensions before pressing into place. Do not force-fit a blade into an undersized pocket, as this can damage the blade land or the mold steel.
