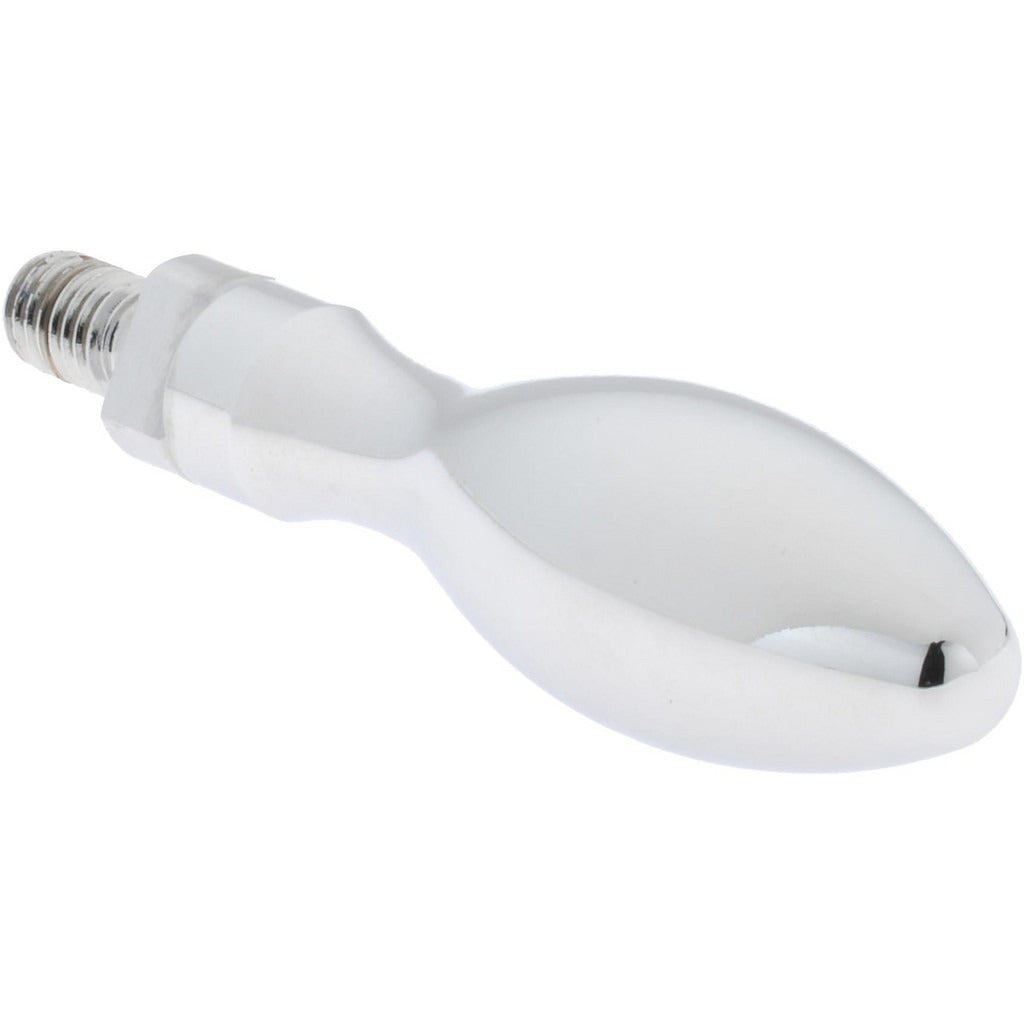

Gibraltar B6-19-G Revolving Handwheel Machine Handle

Product Description

The GIBRALTAR B6-19-G is a revolving handwheel machine handle designed for use on industrial machinery, equipment panels, and mechanical assemblies that require manual adjustment or repositioning. The handle features a bulb-shaped grip that allows smooth, continuous rotation around the stem axis, reducing operator fatigue during repeated adjustments. It mounts via a 10-24 threaded stem that measures 0.375 inches in length. The overall assembly length is 2.25 inches, with a handle length of 1.875 inches. The carbon steel construction provides reliable structural integrity, and the chrome-plated finish resists corrosion in light-duty service environments. This type of handle is typically installed by machine builders, millwrights, or maintenance technicians.

This revolving handwheel handle is suited for use on machine tool panels, jigs, fixtures, conveyor equipment, and general industrial equipment where a compact, hand-operated control point is needed. The 10-24 threaded stem provides a standard fastening interface compatible with common tapped holes found on equipment enclosures and control panels. It is appropriate for both original equipment manufacturing applications and field replacement on existing machinery requiring a compact revolving handle.

Key Features

• Revolving bulb-shape grip for smooth, continuous manual rotation
• 10-24 threaded stem mount for standard tapped-hole installation
• Stem length of 0.375 inches for low-profile mounting applications
• Overall assembly length of 2.25 inches with 1.875-inch handle length
• Carbon steel construction with chrome-plated finish for corrosion resistance

Compatibility

Designed as an OEM-style replacement or new-installation revolving handwheel handle for machinery, equipment panels, and fixtures using a standard 10-24 threaded stem mounting interface.

Installation Notes

Installation is typically performed by a millwright, machine builder, or maintenance technician using standard hand tools. Ensure the receiving tapped hole is clean and free of debris before threading in the stem. De-energize and lock out any equipment per applicable OSHA lockout/tagout procedures before replacing or installing handles on active machinery. Do not overtighten the stem, as carbon steel threads can be damaged if excessive torque is applied without a specified fastening value.
