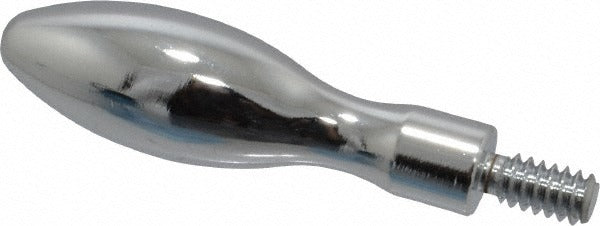

Gibraltar B5-19-G Fixed Handwheel Machine Handle

Product Description

The GIBRALTAR B5-19-G is a fixed handwheel machine handle designed for use with 10-24 threaded stem applications. Built with a carbon steel bulb-shaped handle and a carbon steel stem measuring 3/8 inches in length, this handle provides a secure, ergonomic grip for manual equipment adjustments. The overall assembly length is 2-1/16 inches, with a handle length of 1-11/16 inches. A chrome-plated finish adds corrosion resistance and a clean appearance. This type of handle is commonly installed by machinists, maintenance technicians, and industrial equipment assemblers working on jigs, fixtures, valves, or control mechanisms.

The B5-19-G is suited for light industrial and commercial equipment applications where a compact, fixed handwheel grip is needed on threaded fastener points. Its 10-24 thread specification makes it compatible with standard machine screw sizing found across a wide range of equipment panels, enclosures, and adjustment mechanisms. The bulb shape provides positive finger engagement without requiring tools for operation, which is useful in frequent-access or field-adjustable settings.

Key Features

• Fixed handwheel design with bulb-shaped grip for secure manual control
• 10-24 threaded stem mount for standard machine screw compatibility
• Carbon steel construction for durability in industrial environments
• Chrome-plated finish for corrosion resistance and clean appearance
• Compact overall length of 2-1/16 inches suits tight installation spaces
• No tools required for operation once installed

Compatibility

Designed as an OEM-style replacement or direct-fit handle for equipment using 10-24 threaded stem mounting points in light industrial and commercial applications.

Installation Notes

Installation is performed by threading the stem directly into a 10-24 tapped hole on the target equipment. Ensure the mating thread is clean and free of debris before installation. Hand-tighten to seat the handle securely without over-torquing the carbon steel stem. No special tools are required for standard installation.
