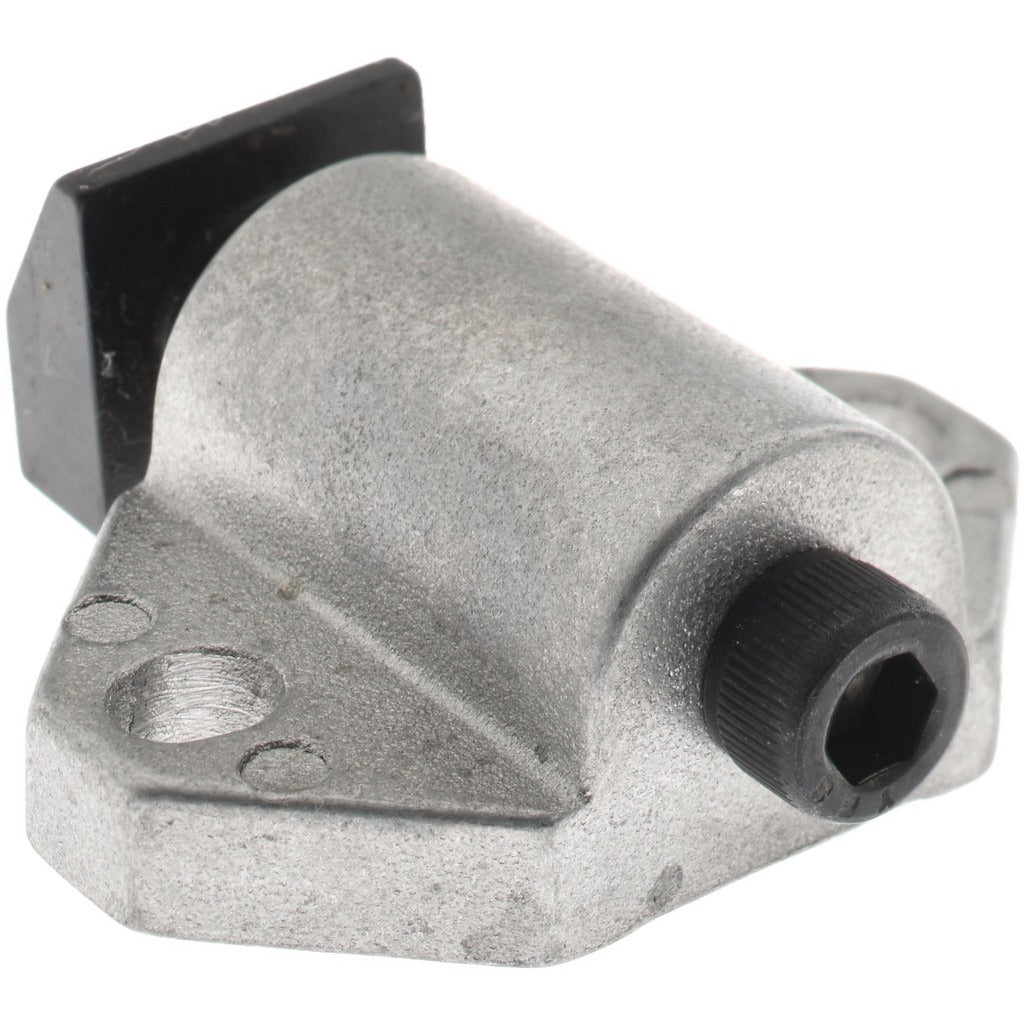

Gibraltar 855060-G Tangless Square Spring Locating Stop

Product Description

The GIBRALTAR 855060-G is a tangless square spring locating stop designed for precision positioning applications in industrial and mechanical assemblies. With a 1.5-inch body width and a 1-inch body length, this aluminum-bodied stop provides a compact footprint for installations where space is limited. The 3/16-inch stroke length and 14-pound middle end force make it suitable for light-duty spring-loaded positioning and retention tasks. The tangless design eliminates the protruding tang common on traditional locating stops, reducing interference risk during installation and operation. Machinists, toolmakers, and mechanical assembly technicians are the primary installers of this component.

This locating stop is used in jigs, fixtures, machine tool setups, and mechanical assemblies requiring repeatable part positioning. The square stop head measures 5/8 inch wide by 5/8 inch high, providing a defined contact surface for workpieces or components. The 1-1/8-inch center-to-center mounting hole spacing and 7/8-inch hole-to-edge distance allow for straightforward bolt-down installation into prepared mounting surfaces. The unit is sold individually and is appropriate for both OEM assembly and maintenance replacement applications.

Key Features

• Tangless profile eliminates tang interference during assembly and removal
• Aluminum body construction offers corrosion resistance and light weight
• 14-pound middle end force provides consistent spring-loaded positioning pressure
• Square stop head at 0.625 inches wide by 0.625 inches high for defined contact area
• Mounting slot dimensions of 0.193 inches wide by 0.193 inches long for standard fastener sizing
• Compact 1.5-inch body width and 1-inch body length suit tight fixture layouts

Compatibility

Designed as a direct-fit replacement or OEM-style locating stop for spring locating stop applications requiring a tangless square-head profile with 1-1/8-inch mounting hole center spacing.

Installation Notes

Installation is typically performed by machinists or mechanical assembly technicians using standard hand tools. Ensure the mounting surface is clean and flat before securing the stop to prevent misalignment. Power down and de-energize any associated machinery before installing or replacing locating stops in active fixtures or tooling. Verify mounting slot clearance and fastener torque against the equipment manufacturer's fixture specifications.
