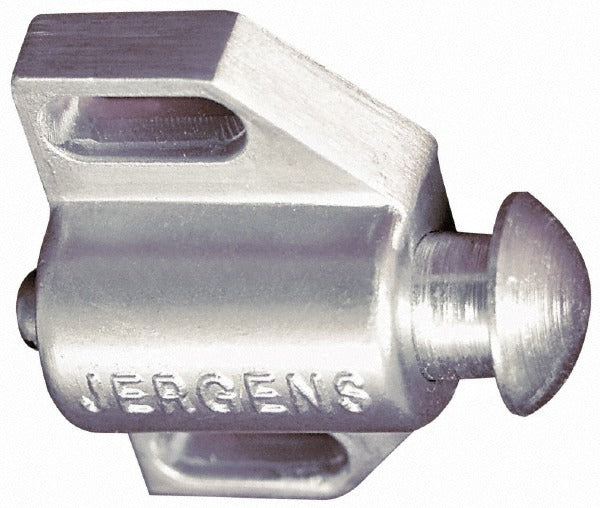

Gibraltar 855015-G Round Spring Locating Stop

Product Description

The GIBRALTAR 855015-G is a round spring locating stop designed to position and retain components accurately in industrial and mechanical assembly applications. Built with an aluminum body, this stop features a 3/16-inch stroke length and a 9/16-inch stop head outside diameter, delivering 14 pounds of mid-end force for reliable, repeatable positioning. The flat button design with a 5/8-inch inside diameter engages workpieces smoothly, while the 1/4-inch base thickness provides a stable mounting platform. Licensed trades and assembly technicians install this type of hardware in fixtures, jigs, tooling plates, and machine frames where controlled part location is required.

This spring locating stop suits precision fixturing and industrial tooling applications where a compact, low-profile stop is needed. The 1-1/2-inch base width and 1-1/8-inch center-to-center mounting hole spacing allow straightforward bolt-down installation in standard tooling setups. The 5/8-inch overall height keeps the profile low, making it appropriate for applications with space constraints. It is sold individually and is intended for use by machinists, tool builders, and maintenance technicians working with production fixtures or assembly jigs.

Key Features

• Aluminum body construction for lightweight, corrosion-resistant performance
• 3/16-inch stroke length with 14-pound mid-end force for controlled, repeatable positioning
• 9/16-inch stop head outside diameter with 5/8-inch flat button inside diameter
• 1-1/8-inch center-to-center mounting hole spacing for standard fixture plate compatibility
• Low-profile 5/8-inch overall height suits space-constrained tooling layouts
• 1/4-inch base thickness provides a stable, rigid mounting surface

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixturing, jig plates, and tooling assemblies requiring a compact round spring locating stop with standard bolt-down mounting geometry.

Installation Notes

Installation is typically performed by machinists or tool builders using standard hand tools and a drill press or CNC machine for mounting hole preparation. Power down and de-energize any associated machinery before installing or replacing locating stops in active fixtures. Ensure mounting surfaces are clean and flat to prevent rocking that could affect positioning accuracy. Follow the equipment manufacturer's fastener torque guidelines for the specific tooling plate material being used.
