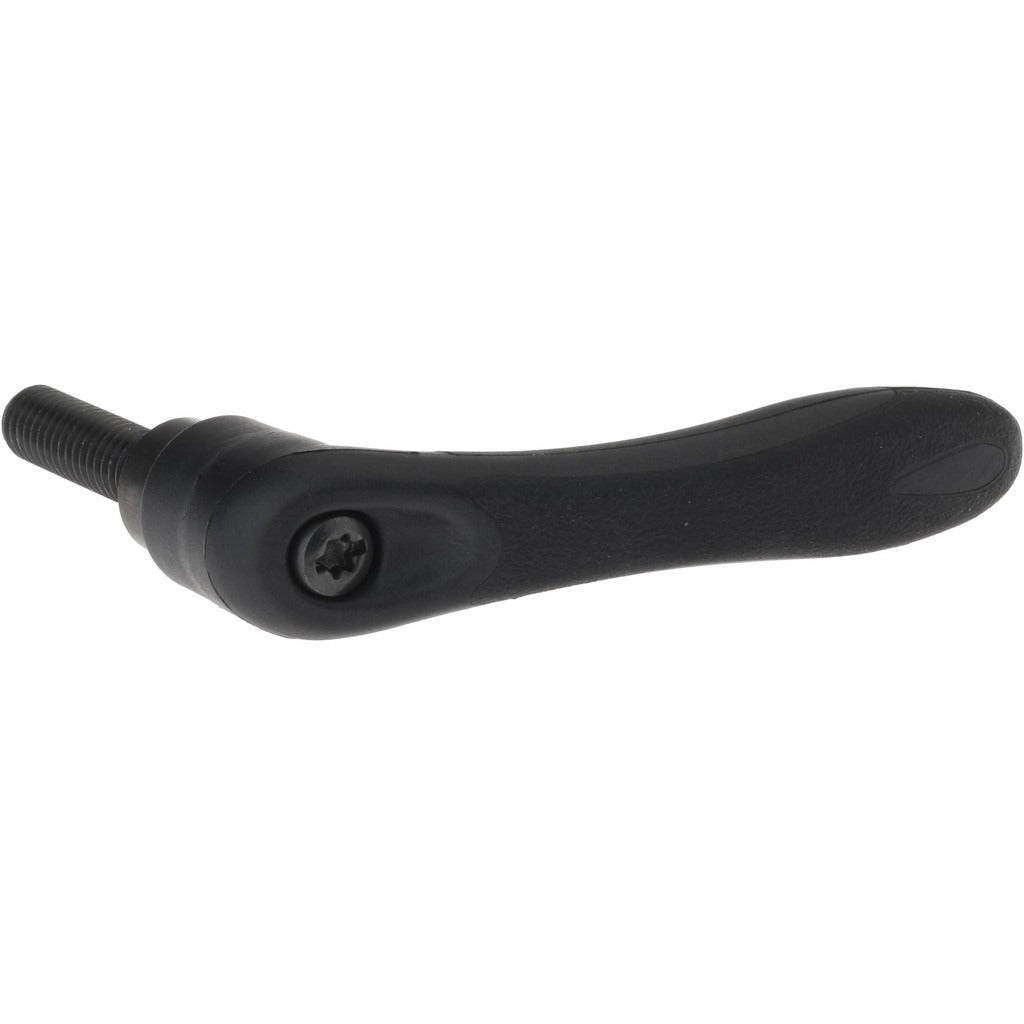

Gibraltar 7C65KQ7DAAN001G Adjustable Clamping Handle

Product Description

The GIBRALTAR 7C65KQ7DAAN001G is an adjustable clamping handle designed for tool-free tightening and loosening on threaded stud mounts. It features a 5/16-18 thread size and a thermoplastic elastomer (TPE) grip body in black. The hub diameter measures 0.53 inches with a hub height of 0.28 inches. The actual handle height is 1.12 inches and the stud length is 1.18 inches. This type of handle is commonly installed by machine operators, maintenance technicians, and equipment assemblers who need a reliable, hand-operable fastening solution on jigs, fixtures, enclosures, and industrial equipment.

This adjustable clamping handle is suited for light industrial and general-purpose mechanical applications where repeated manual adjustments are needed without tools. Typical use cases include machine tool fixtures, panel mounting, enclosure latching, and positioning devices in both shop and field environments. The threaded stud mount style allows direct installation into tapped holes or onto threaded inserts in metal, plastic, or composite assemblies.

Key Features

• 5/16-18 threaded stud mount for direct installation into standard tapped holes
• Thermoplastic elastomer handle body provides a firm, comfortable grip
• Compact profile with 1.12 inch actual handle height and 2.91 inch actual handle length
• 0.53 inch hub diameter with 0.28 inch hub height for low-profile clearance
• Black finish for a clean, professional appearance on finished assemblies
• Lightweight construction at 0.1 pounds

Compatibility

Designed as a threaded stud clamping handle for use in applications with 5/16-18 tapped holes or threaded inserts on industrial fixtures, jigs, enclosures, and positioning equipment.

Installation Notes

Installation requires a properly tapped 5/16-18 hole or threaded insert in the mating component. Hand-thread the stud into place and tighten by gripping the handle body. Ensure the mating material thread depth is sufficient to fully engage the stud length before applying clamping load. No special tools are required for standard installation.
