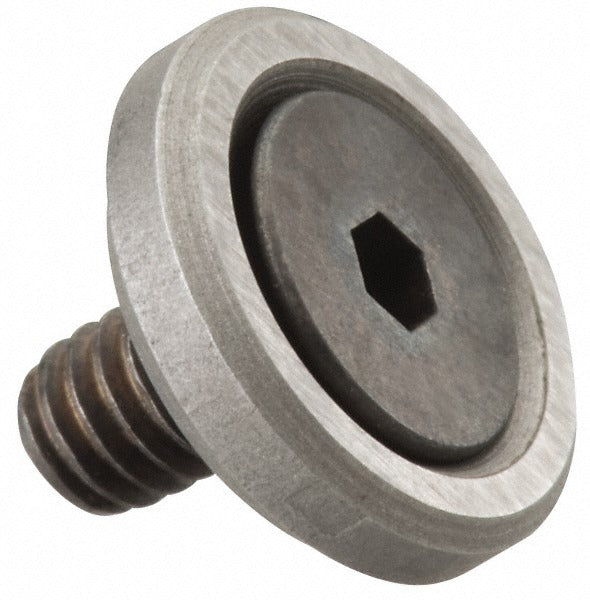

Gibraltar 75548594 Flat Foot Leveling Pad 3/8-16 Thread

Product Description

The GIBRALTAR 75548594 is a flat foot leveling pad designed for use with 3/8-16 threaded leveling feet and machine mounts. It features a 1.625-inch outside diameter and stands 0.375 inches high, providing a stable, low-profile base surface for equipment legs. Constructed from steel lead alloy, it distributes load evenly across the contact surface and resists deformation under sustained static loads. A cap screw is included. This type of leveling pad is installed by maintenance technicians, millwrights, and equipment installers working on machinery, workbenches, industrial frames, and fabricated steel assemblies.

This leveling pad is suited for light to medium-duty industrial and commercial applications where equipment leveling, vibration isolation, or floor protection is required. The flat foot profile is appropriate for installations on hard, flat floor surfaces such as concrete, tile, or steel. It threads onto standard 3/8-16 leveling bolts or adjustable equipment feet, making it a common component in machinery installations, tool stands, shelving units, and similar assemblies.

Key Features

• Flat foot profile provides stable, full-contact bearing surface on hard floors
• 3/8-16 thread size compatible with standard leveling screws and adjustable feet
• 1.625-inch outside diameter spreads load across a wider contact area
• Low-profile 0.375-inch height minimizes clearance requirements
• Steel lead alloy construction for durability under static load
• Includes cap screw for complete installation

Compatibility

Designed as a replacement or add-on leveling pad for equipment and machinery fitted with 3/8-16 threaded leveling feet. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation is performed by threading the pad onto a 3/8-16 leveling bolt or adjustable foot using the included cap screw. No special tools are required beyond a standard wrench or socket set. Ensure the floor surface is clean and flat before seating the pad to achieve proper load distribution. Confirm equipment is de-energized or safely supported before adjusting leveling hardware.
