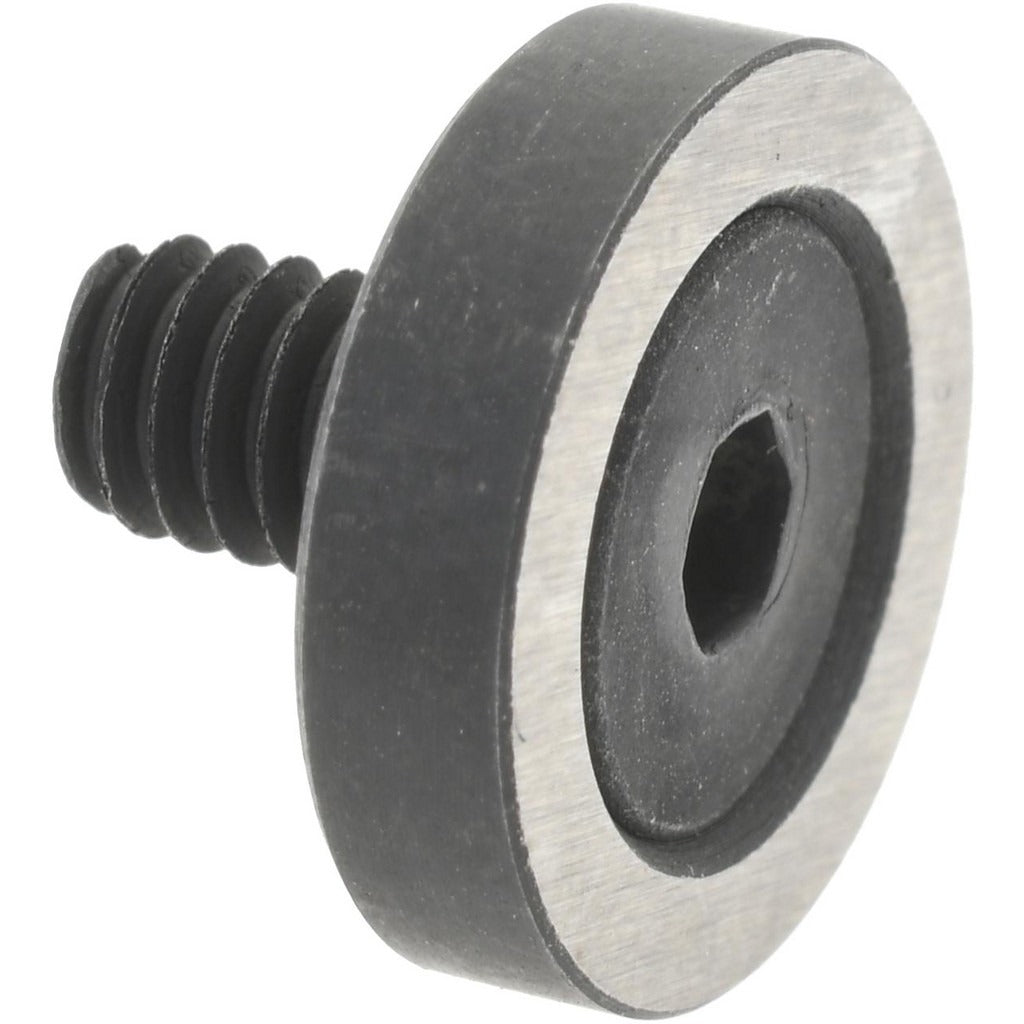

Gibraltar 75548537 Flat Foot Leveling Mount 8-32 Thread

Product Description

The GIBRALTAR 75548537 is a flat foot leveling mount designed for use in light machine, fixture, and equipment leveling applications. This compact foot features an 8-32 thread size, a 0.5 inch outer diameter, and a 0.125 inch standing height. Constructed from steel lead alloy, it provides durable load-bearing contact on flat surfaces. The part includes a cap screw for secure fastening. At 0.01 pounds, it is lightweight and suited for precision positioning tasks where consistent, low-profile support is needed. Machinists, maintenance technicians, and equipment installers are the primary users.

This leveling mount is used in benchtop equipment, instrument housings, light industrial machinery, and fixture assemblies where a flat, stable foot contact point is required. Its low-profile 0.125 inch height makes it a practical choice for tight clearance applications. The 8-32 thread is a standard machine screw size, making this foot compatible with a wide range of threaded inserts and base configurations found in general manufacturing and maintenance environments.

Key Features

• Flat foot design provides stable, level surface contact
• 8-32 thread size matches standard machine screw configurations
• 0.5 inch outer diameter in a compact, low-profile 0.125 inch height
• Steel lead alloy construction for reliable durability
• Includes cap screw for complete installation
• Lightweight at 0.01 pounds — minimal added mass to the assembly

Compatibility

Designed as an OEM-style replacement or standard leveling foot for light industrial equipment, fixtures, and machinery using 8-32 threaded mounting points.

Installation Notes

Installation is performed by maintenance technicians or machinists using standard hand tools appropriate for 8-32 machine screws. Power down and de-energize any equipment before servicing mounting feet or base hardware. Thread the foot into the prepared 8-32 hole and use the included cap screw to secure it to the desired position. Verify level and torque to the equipment manufacturer's specification before returning the unit to service.
