Gibraltar 75283366 Jig Foot 3/8-16 Thread 1-1/4 in Od

Product Description

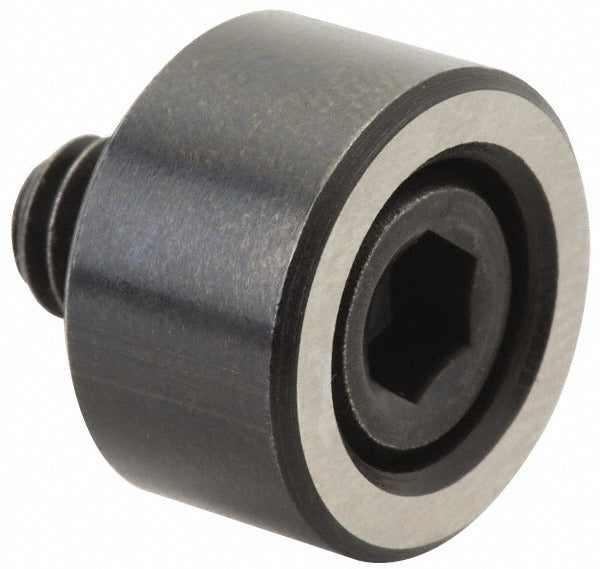

The GIBRALTAR 75283366 is a jig foot designed for use in workholding and fixturing applications. It features a 3/8-16 threaded stem, a 1.25-inch outside diameter base, and a 2-inch installed height. Constructed from low carbon steel with a black oxide finish, it provides corrosion resistance and a stable, non-marring base point for jig and fixture assemblies. A cap screw is included. Licensed trades and skilled fabricators working in machine shops, welding setups, and manufacturing environments install this component to support and level precision fixtures during production operations.

This jig foot is suited for use in industrial and manufacturing environments where repeatable workpiece positioning is required. It is commonly installed in welding jigs, machining fixtures, and assembly tooling where a threaded adjustable foot provides controlled height and firm contact with the work surface. The black oxide finish helps reduce light reflection in precision work environments and adds a measure of surface protection during regular handling.

Key Features

• 3/8-16 threaded stem for secure engagement with standard fixture plates and jig bodies
• 1.25-inch outside diameter base provides stable contact footprint
• 2-inch height suits standard fixture clearance requirements
• Low carbon steel construction offers durability under repeated clamping and handling loads
• Black oxide finish reduces reflectivity and provides mild corrosion resistance
• Cap screw included for complete installation without additional hardware

Compatibility

Designed as an OEM-style replacement or new-build component for jig and fixture assemblies requiring a 3/8-16 threaded foot with a 1.25-inch OD base.

Installation Notes

Installation is typically performed by machinists, toolmakers, or fixture builders using standard hand tools. Thread the jig foot into the fixture plate to the desired height and secure with the included cap screw to lock position. Ensure mating threads in the fixture body are clean and free of debris before installation. Follow applicable shop safety procedures and de-energize or secure any associated machinery before adjusting or replacing fixture components.
