Gibraltar 75283325 Jig Foot 3/8-16 Thread Black Oxide

Product Description

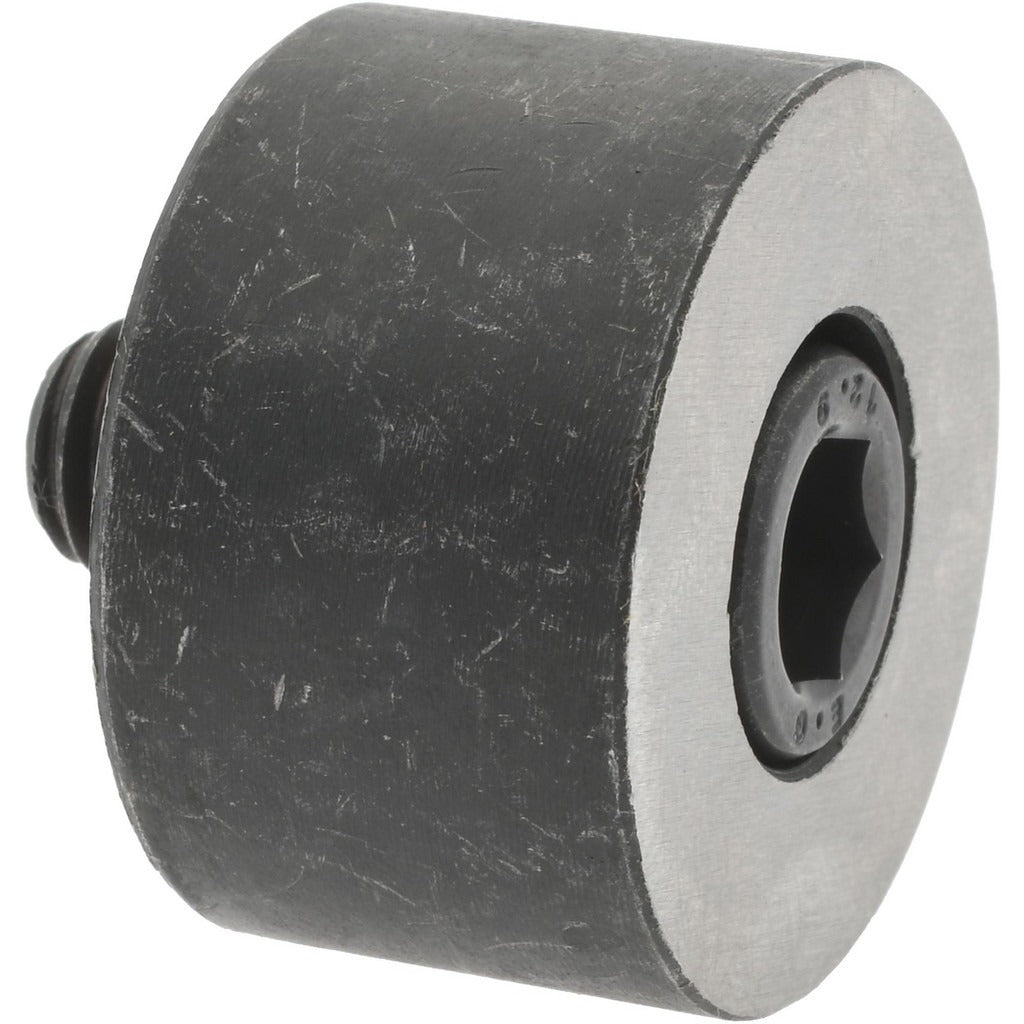

The GIBRALTAR 75283325 is a jig foot designed for use in fixturing, workholding, and precision positioning applications. It features a 3/8-16 threaded shank, an outer diameter of 1.25 inches, and a height of 0.75 inches. Constructed from low carbon steel with a black oxide finish, this jig foot provides reliable contact points on jigs and fixtures where repeatable positioning is required. A cap screw is included. This part is handled by machinists, toolmakers, and fixture builders working in manufacturing and fabrication environments.

The GIBRALTAR 75283325 jig foot is suited for use on machining fixtures, welding jigs, assembly fixtures, and inspection setups where a stable, repeatable support point is needed. The black oxide finish offers mild corrosion resistance in shop environments. The 3/8-16 thread allows compatibility with standard threaded fixture plates and modular fixturing systems. It is sold individually and is appropriate for both new fixture builds and replacement applications.

Key Features

• 3/8-16 threaded shank for use with standard fixturing hardware
• 1.25 inch outer diameter provides a stable contact footprint
• 0.75 inch height suits low-profile fixture configurations
• Low carbon steel construction for durability in shop use
• Black oxide finish for mild corrosion resistance
• Cap screw included for secure mounting

Compatibility

Designed as an OEM-style replacement or new-build component for jigs and fixtures using standard 3/8-16 threaded inserts and fixturing plates.

Installation Notes

Installation is performed by toolmakers or fixture technicians using standard hand tools. Ensure the mating threaded hole is clean and free of debris before threading in the jig foot. Secure with the included cap screw to prevent movement during fixturing operations. Verify thread engagement depth meets the requirements of the fixture design before placing the assembly into service.
