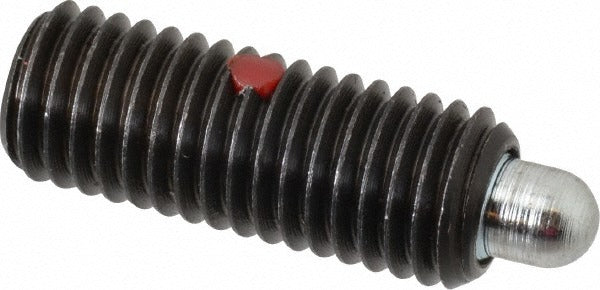

Gibraltar 67014G Threaded Spring Plunger M12 X 1.75

Product Description

The GIBRALTAR 67014G is a threaded spring plunger designed for indexing, positioning, and light-duty locking applications in mechanical assemblies. It features an M12 x 1.75 thread with a 32 mm (approximately 1.26 inches) thread length and a 6.3 mm (approximately 0.25 inches) maximum plunger diameter. The plunger projects 6 mm (approximately 0.24 inches) and delivers an initial end force of 2.7 pounds and a final end force of 9.24 pounds. Both the nose and body are steel with a black finish. This part is installed by machinists, maintenance technicians, and mechanical assemblers working on jigs, fixtures, tooling, and production equipment.

The 67014G is suited for use in machine tool fixtures, assembly jigs, enclosures, and any application requiring repeatable spring-loaded positioning or detent action. The steel body and nose provide durability in industrial environments. No locking element is included, making this a standard spring plunger without anti-rotation features. It is appropriate for both light manufacturing and maintenance-repair-operations contexts where a compact M12-threaded plunger is required.

Key Features

• M12 x 1.75 thread with 32 mm thread length for standard metric fastening compatibility
• 6.3 mm maximum plunger diameter with 6 mm projection for precise detent positioning
• Initial end force of 2.7 pounds and final end force of 9.24 pounds for reliable spring tension
• Steel body and steel nose construction with black finish for industrial durability
• 6 mm hex size allows installation and removal with standard hex key tooling
• No locking element — straightforward spring plunger design for clean installation

Compatibility

Designed as an OEM-style replacement or standard-service spring plunger for mechanical fixtures and assemblies requiring an M12 x 1.75 threaded spring plunger with a steel body.

Installation Notes

Installation is typically performed by a machinist or maintenance technician using a 6 mm hex key. De-energize or lock out any powered equipment before accessing the assembly. Thread the plunger into a properly tapped M12 x 1.75 hole and tighten to the assembler's specified torque for the application. Ensure the plunger bore is clear of debris before seating to avoid binding the spring mechanism.
