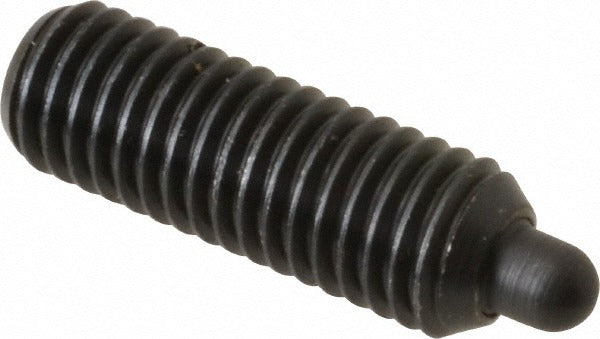

Gibraltar 67005G Threaded Spring Plunger M10 X 1.5 Steel

Product Description

The GIBRALTAR 67005G is a threaded spring plunger designed for indexing, positioning, and light-duty holding applications in mechanical assemblies. The plunger features an M10 x 1.5 thread with a 29 mm thread length and a maximum plunger diameter of 4.72 mm. The 5 mm projection delivers an initial end force of 5.47 pounds and a final end force of 14.4 pounds, providing consistent spring tension across its travel range. The steel body and steel nose construction give this plunger durability in industrial and fabrication environments. A black finish is applied to the exterior. This plunger ships individually and is installed by machinists, maintenance technicians, and mechanical assemblers.

The 67005G is suited for use in jigs, fixtures, tooling plates, and general mechanical assemblies where repeatable part positioning or light detent action is needed. The M10 x 1.5 thread size fits standard metric threaded holes, making it compatible with a wide range of machined components and fabricated assemblies in manufacturing and industrial settings. No locking element is included on this model, which allows for straightforward installation and removal without thread-locking inserts.

Key Features

• M10 x 1.5 thread with 29 mm thread length for secure engagement in metric-threaded bores
• 5 mm plunger projection with 5.47 lb initial end force and 14.4 lb final end force
• Steel body and steel nose for durability in industrial and tooling applications
• Black finish applied to body exterior
• No locking element — straightforward installation and removal
• Sold individually, minimum order quantity of 1

Compatibility

Designed for use in standard M10 x 1.5 metric threaded holes in jigs, fixtures, tooling plates, and mechanical assemblies requiring spring-loaded indexing or detent positioning.

Installation Notes

Installation is performed by hand or with a hex wrench using the 5 mm hex size on the body. Ensure the receiving threaded hole is clean and free of debris before threading in the plunger. Verify that the assembly is de-energized or at rest before servicing any spring plunger in a live fixture or automated tooling application. Do not overtighten, as this may compress the internal spring beyond its rated travel range.
