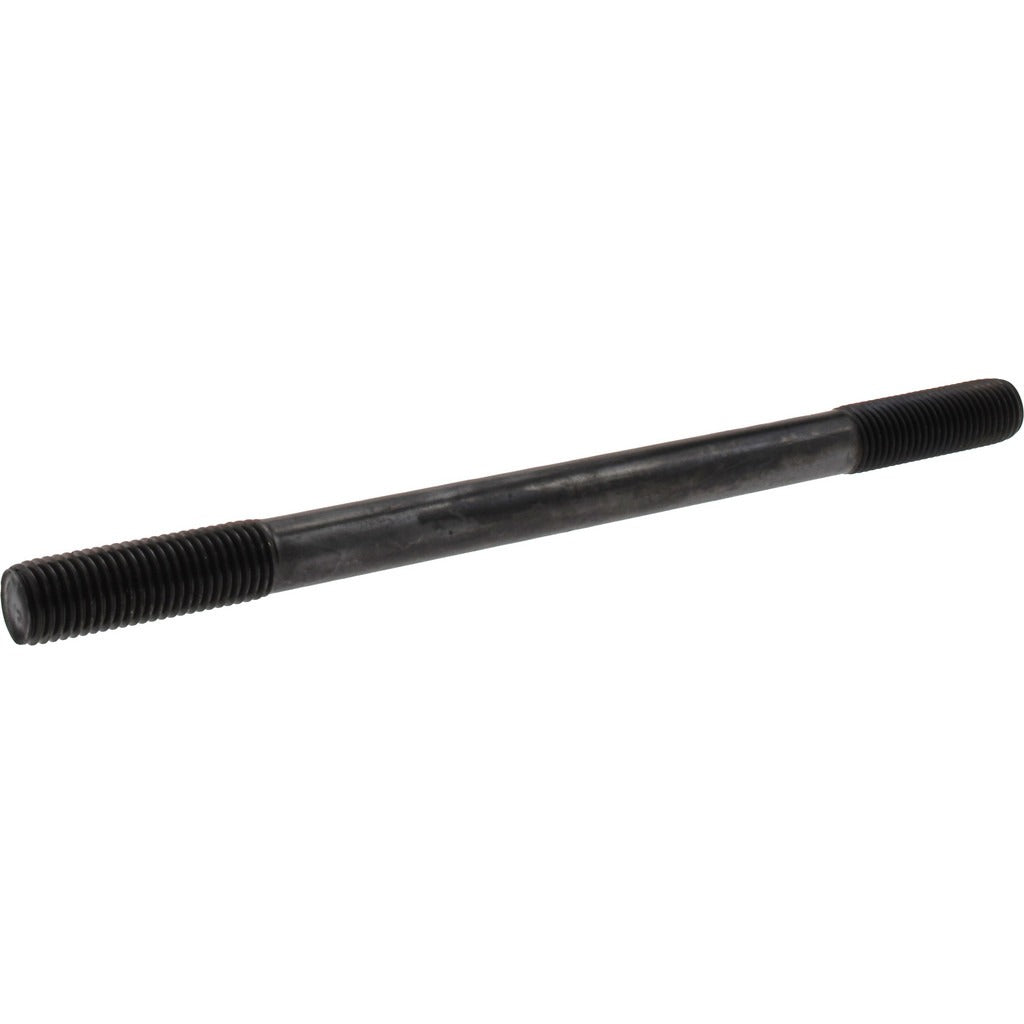

Gibraltar 60615G Equal Double Threaded Stud M16 X 2

Product Description

The GIBRALTAR 60615G is an equal double threaded stud with M16 x 2 thread on both ends and an overall length of 250 mm. Machined from alloy steel at material grade 5, this stud carries a black oxide finish that provides a baseline level of corrosion resistance in moderate service environments. The equal configuration means both threaded ends share the same pitch and diameter, making it straightforward to source mating hardware. This fastener is installed by machinists, millwrights, fabricators, and maintenance technicians wherever a stud-based connection is needed in metalworking, machine assembly, or structural fastening applications.

This double threaded stud is suited for general industrial and manufacturing assembly applications requiring a metric M16 x 2 thread form. The 250 mm overall length accommodates thicker assemblies or standoff-style connections where a bolt-through approach is not practical. Thread fit is Class 50, indicating a standard metric tolerance class appropriate for general-purpose industrial use. The black oxide alloy steel construction handles typical shop and light mechanical environments without issue.

Key Features

• Equal double threaded configuration — same M16 x 2 thread on both ends for simplified hardware matching
• Alloy steel construction at material grade 5 for reliable mechanical strength
• Black oxide finish provides mild surface protection and reduces light reflection
• Thread fit Class 50 — standard metric tolerance for general industrial assembly
• 250 mm overall length suits thicker flange and standoff fastening scenarios

Compatibility

Designed as a general-purpose metric double threaded stud compatible with any M16 x 2 threaded application calling for an equal-end stud at 250 mm overall length.

Installation Notes

Installation is performed by qualified machinists or maintenance technicians using standard metric tooling. Thread the stud into the tapped hole by hand first to confirm proper engagement before applying torque with a stud driver or double-nut method. Inspect both thread ends for damage before installation and verify mating threads are clean and free of debris. Always follow applicable equipment manufacturer specifications and relevant industry fastener standards for proper preload and assembly torque.
