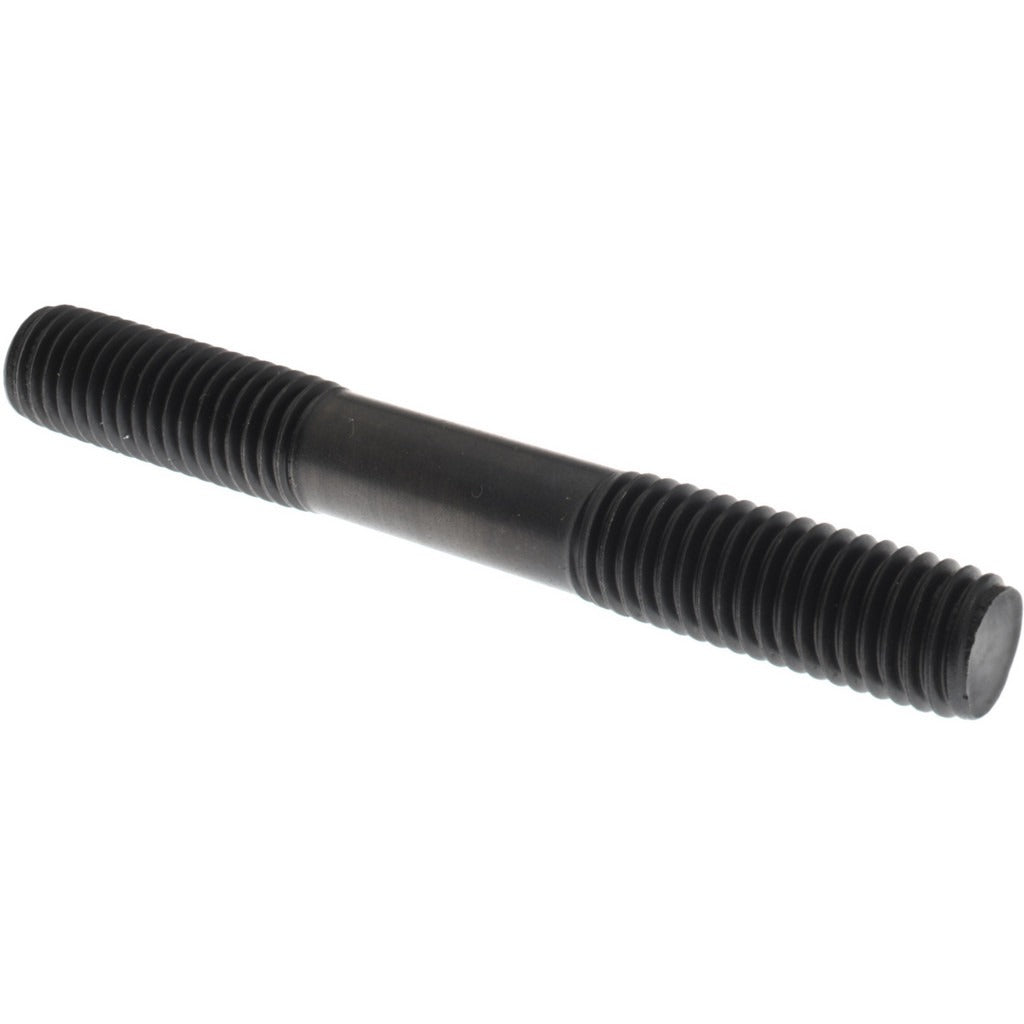

Gibraltar 60504G Equal Double Threaded Stud M12 X 1.75

Product Description

The GIBRALTAR 60504G is an equal double threaded stud in M12 x 1.75 thread size with an overall length of 95 mm. Both threaded ends are the same length and thread specification, making this stud suited for applications where identical engagement depth is required on both sides of a joint. Manufactured from alloy steel with a black oxide finish, the stud is rated Material Grade 5 and Thread Fit Class 50. Black oxide provides mild corrosion resistance and reduces light reflection in service environments. Licensed trade professionals working in mechanical assembly, HVAC equipment mounting, and industrial fabrication commonly install this type of fastener.

Equal double threaded studs are used in a wide range of mechanical and structural assembly applications where a bolt-through approach is not practical and both mating surfaces require threaded engagement. Typical installations include equipment mounting plates, pipe support assemblies, flange connections, and machinery base attachments. The M12 x 1.75 thread pitch is a standard coarse metric thread, commonly encountered in commercial HVAC equipment, pump housings, compressor brackets, and similar trade-work assemblies. This stud is sold individually per package, with a minimum order quantity of 2 units.

Key Features

• Equal thread engagement on both ends — same thread length and pitch at each end for symmetric joint loading
• M12 x 1.75 coarse metric thread — widely used standard pitch in commercial and industrial mechanical assemblies
• Alloy steel construction with Material Grade 5 rating for reliable tensile strength in structural fastening
• Black oxide finish provides mild corrosion resistance and a non-reflective surface
• Thread Fit Class 50 for consistent thread engagement tolerance
• Compact 95 mm overall length suits tight clearance installations

Compatibility

Designed as a standard M12 x 1.75 equal double threaded stud suitable for metric-threaded mechanical assemblies across HVAC, plumbing, and industrial equipment applications requiring Grade 5 alloy steel fasteners with black oxide finish.

Installation Notes

Double threaded studs are typically installed by mechanics, millwrights, or licensed tradespeople using a stud driver or double-nut method to avoid damaging the threads during installation. De-energize and isolate any equipment before fastener replacement or assembly work. Use calibrated torque tools appropriate to the joint specification — do not over-torque metric studs, as thread strip-out in softer base materials is a common failure mode. Follow applicable mechanical codes and the equipment manufacturer's assembly guidelines for proper joint preload.
