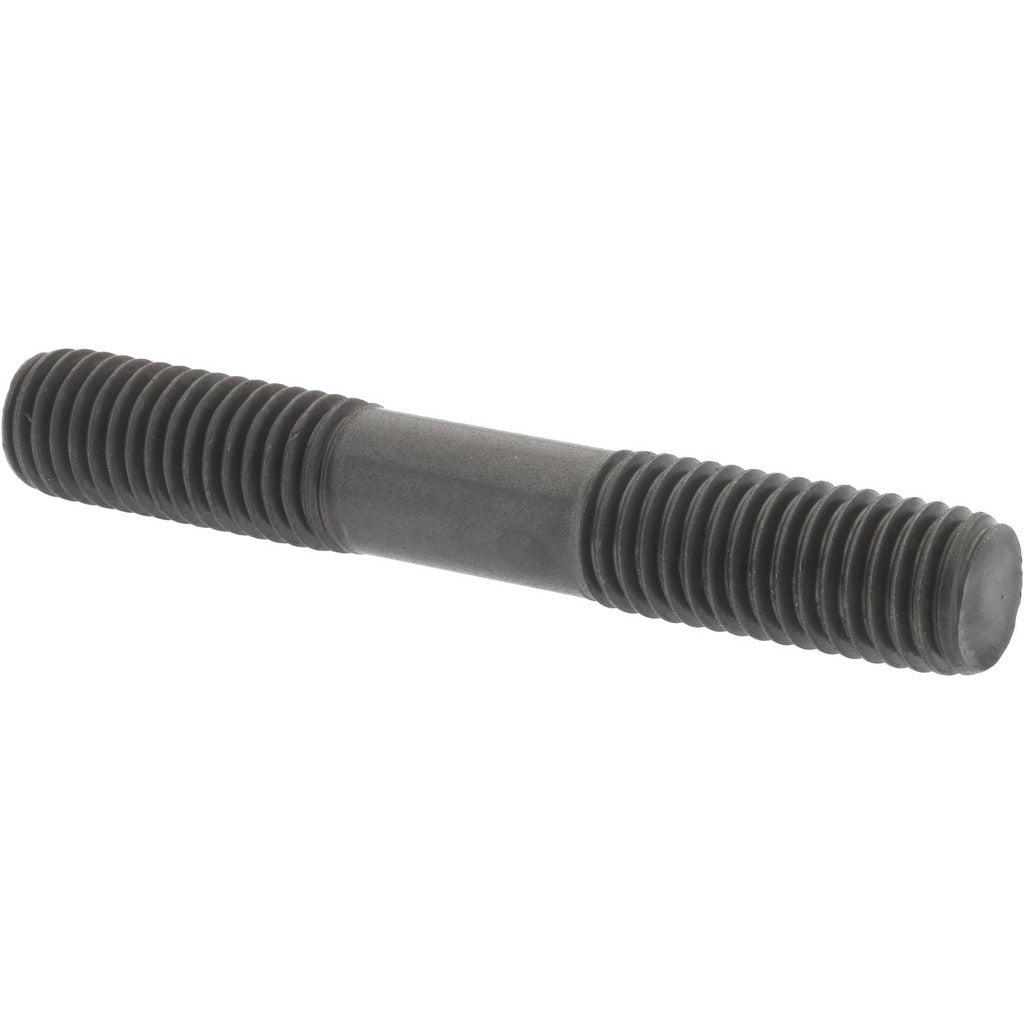

Gibraltar 60503G Equal Double Threaded Stud M12 X 1.75

Product Description

The GIBRALTAR 60503G is an equal double threaded stud with M12 x 1.75 thread sizing and an overall length of 80 mm. This fastener features full threading on both ends with equal thread engagement lengths, making it suitable for applications that require a secure threaded connection from both sides of an assembly. Manufactured from alloy steel with a black oxide finish, the 60503G carries a Class 50 thread fit and Material Grade 5, providing reliable tensile strength for mechanical assemblies in trade and industrial settings. Maintenance technicians, millwrights, and mechanical contractors commonly work with this type of fastener.

This stud is designed for use in mechanical assemblies, equipment mounting, and structural fastening applications where a double-ended threaded connection is required. The equal thread design means both ends share the same M12 x 1.75 thread profile, simplifying parts management when consistent thread engagement is needed on both sides of a component. Typical install scenarios include pump mounting, bracket assemblies, and equipment bases in industrial or commercial maintenance environments.

Key Features

• Equal double threaded ends, both M12 x 1.75 thread profile
• 80 mm overall length for consistent bilateral thread engagement
• Alloy steel construction with black oxide finish for corrosion resistance
• Class 50 thread fit for reliable mating with standard M12 x 1.75 fastener hardware
• Material Grade 5 designation for mechanical strength requirements
• UNSPSC Code 31161618 for procurement and catalog integration

Compatibility

Designed for use with standard M12 x 1.75 threaded hardware including nuts, threaded inserts, and tapped mechanical assemblies requiring an equal double-end stud fastener.

Installation Notes

Installation is typically performed by millwrights, maintenance mechanics, or mechanical contractors familiar with metric fastener systems. Before installing or removing studs from any assembly, ensure the equipment is de-energized and depressurized as applicable. Use calibrated torque tools appropriate for Grade 5 alloy steel fasteners and follow the torque specifications provided by the equipment manufacturer. Avoid cross-threading during installation by starting threads by hand before applying torque.
