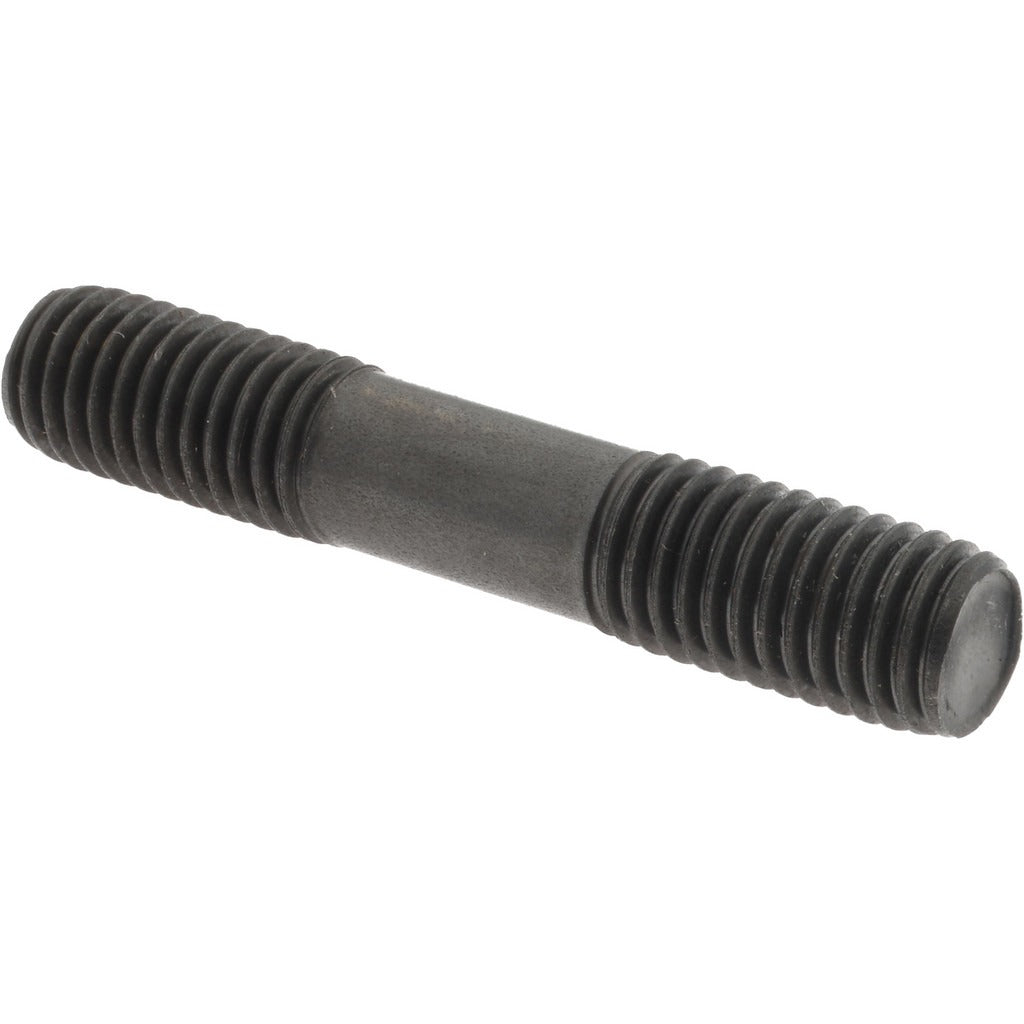

Gibraltar 60502G Double Threaded Stud M12x1.75 65mm

Product Description

The GIBRALTAR 60502G is an equal double threaded stud designed for fastening applications that require threaded engagement on both ends. Manufactured from alloy steel with a black oxide finish, this stud measures M12 x 1.75 thread pitch and 65 mm overall length. The Class 50 thread fit and Material Grade 5 construction provide reliable clamping strength in mechanical assemblies. The black oxide finish offers mild corrosion resistance and reduces light reflection, making it suitable for both functional and low-visibility installations. This type of fastener is typically installed by mechanical technicians, millwrights, or maintenance professionals working on equipment assemblies.

Equal double threaded studs are used in applications where a bolt or cap screw cannot be accessed from one end, such as mounting flanges, machinery bases, engine components, and structural assemblies. The M12 x 1.75 thread size is a standard metric coarse thread commonly found in industrial equipment across light manufacturing, HVAC mechanical rooms, and general maintenance environments. This stud seats permanently into one component while a nut threads onto the exposed end for clamping.

Key Features

• Equal double threaded design provides identical thread engagement on both ends
• M12 x 1.75 metric coarse thread pitch for standard industrial fitment
• 65 mm overall length suits medium-depth fastening applications
• Alloy steel construction with Material Grade 5 for dependable tensile strength
• Black oxide finish provides mild corrosion resistance and low-glare appearance
• Class 50 thread fit ensures controlled tolerances for consistent assembly

Compatibility

Designed as a standard M12 x 1.75 metric coarse thread double-end stud for use in industrial and mechanical assemblies requiring equal engagement depth on both threaded ends.

Installation Notes

Mechanical technicians and millwrights typically install double threaded studs using a stud driver or double-nut method. Always ensure the receiving tapped hole is clean, properly sized, and free of debris before installation. De-energize and lock out any equipment before servicing fasteners on live machinery per applicable safety procedures. Do not over-torque during installation, as doing so can damage the threads in the mating component.
