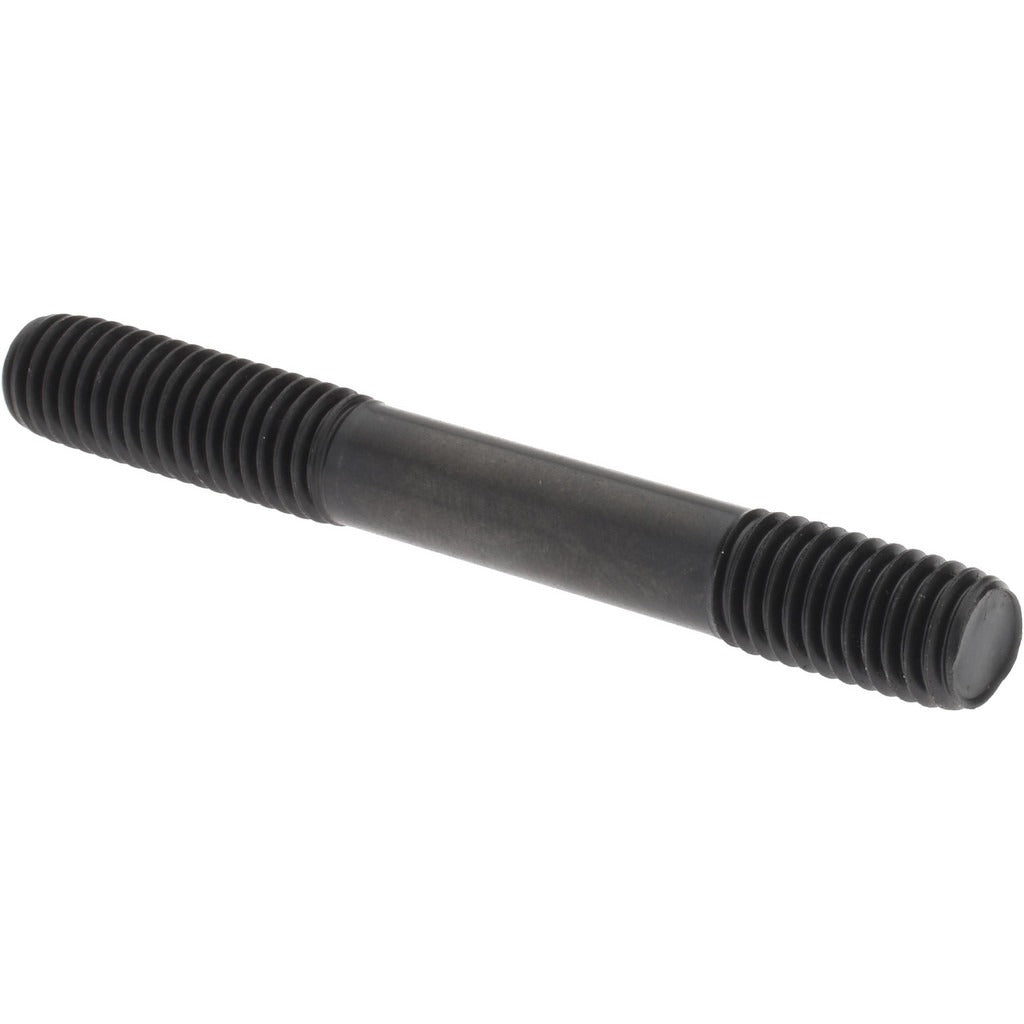

Gibraltar 60453G Unequal Double Threaded Stud M10x1.5 80mm

Product Description

The GIBRALTAR 60453G is an unequal double threaded stud designed for fastening applications that require different thread engagement lengths on each end. Manufactured from carbon steel with a black oxide finish, this stud features an M10 x 1.5 thread size and an overall length of 80 mm. The long thread end measures 27 mm and the short thread end measures 16 mm, making it suitable for applications where stud-to-component engagement depths differ. Material Grade 5 construction provides reliable tensile strength for general mechanical and structural fastening tasks performed by machinists, maintenance technicians, and assembly professionals.

This threaded stud is used in mechanical assemblies, equipment mounting, and structural connections where a permanently or semi-permanently installed stud is required on one end and a removable nut connection on the other. The unequal thread configuration is common in engine components, pump housings, gearboxes, and industrial machinery. The black oxide finish provides mild corrosion resistance and reduces light reflection in service environments. Typical applications include OEM equipment assembly and MRO replacement in both light industrial and commercial maintenance settings.

Key Features

• Unequal thread design with 27 mm long thread end and 16 mm short thread end
• M10 x 1.5 thread size with Thread Fit Class 50 for consistent engagement
• Carbon steel construction at Material Grade 5 for dependable strength
• Black oxide finish for mild corrosion resistance and surface protection
• 80 mm overall length suits a range of standard fastening depths
• No flat machined on body, maintaining full cylindrical shank profile

Compatibility

Designed as a standard M10 x 1.5 unequal double threaded stud for general mechanical and industrial fastening applications requiring Grade 5 carbon steel studs of this thread size and overall length.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a stud driver or double-nut method to torque the stud into the tapped base material without damaging threads. Ensure the tapped receiving hole is clean and free of debris before installation. Power down and de-energize any associated equipment before servicing fasteners on live assemblies. Do not overtighten the nut end beyond the rated capacity of the thread engagement length.
