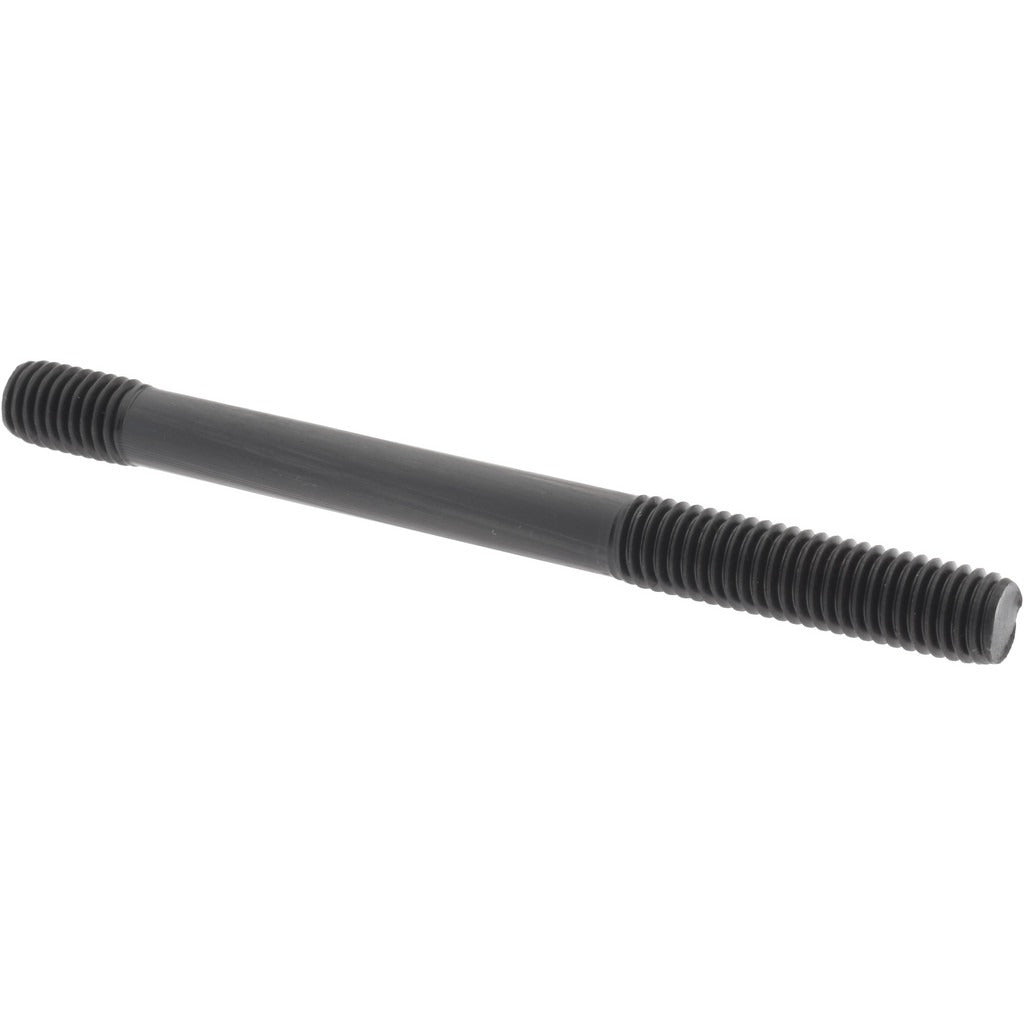

Gibraltar 60354G Unequal Double Threaded Stud M8 X 1.25

Product Description

The GIBRALTAR 60354G is an unequal double threaded stud designed for fastening applications where two different thread engagement lengths are required on a single fastener. Made from carbon steel with a black oxide finish, this stud delivers corrosion resistance and a clean appearance suitable for industrial and mechanical assembly work. The overall length is 95 mm with a long thread length of 31 mm and a short thread length of 12 mm, both cut to M8 x 1.25 thread size. Material Grade 5 construction provides reliable tensile strength for general-purpose threaded connections.

Unequal double threaded studs like the 60354G are used in manufacturing, maintenance, and mechanical repair applications where a component must be threaded onto a fixed structure at one end while a nut or mating part is secured at the other. The differing thread lengths allow one end to be permanently set into a tapped hole while the longer end accepts a removable fastener. This configuration is common in equipment assembly, pump housings, engine mounts, and structural brackets across light industrial and trade settings.

Key Features

• Unequal thread lengths: 31 mm long thread and 12 mm short thread for versatile fastening configurations
• M8 x 1.25 thread size with Thread Fit Class 50 for precise thread engagement
• Carbon steel construction, Material Grade 5 for dependable strength
• Black oxide finish provides mild corrosion resistance and reduces light reflection
• No flat ground on stud body, maintaining full cylindrical shank between threads

Compatibility

Designed as a standard replacement or assembly fastener for applications requiring an M8 x 1.25 unequal double threaded stud with a 95 mm overall length.

Installation Notes

Installation should be performed by a qualified mechanic or millwright familiar with threaded fastener practices. Ensure the tapped hole is clean and free of debris before threading the short end into the fixed component. Use an appropriate thread locking compound or torque specification from the equipment manufacturer when setting the stud. Always verify thread class compatibility with the mating component before assembly.
