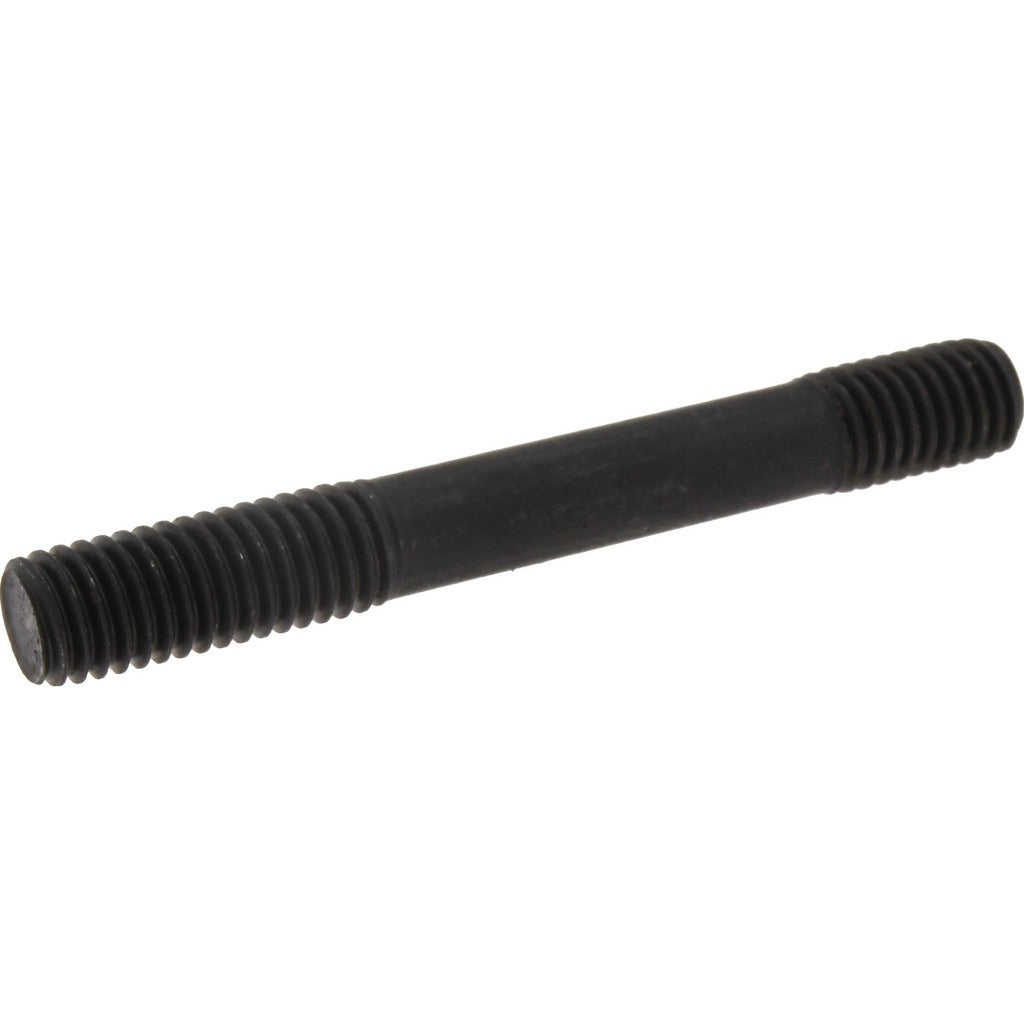

Gibraltar 60352G Unequal Double Threaded Stud M8 X 1.25

Product Description

The GIBRALTAR 60352G is an unequal double threaded stud designed for applications requiring two different thread engagement lengths on a single fastener. Manufactured from carbon steel with a black oxide finish, this stud provides corrosion resistance and a consistent surface for assembly work. The M8 x 1.25 thread pitch runs on both ends, with the long thread measuring 20 mm and the short thread measuring 12 mm, over a total overall length of 65 mm. It carries a Thread Fit Class 50 rating and a material grade of 5. Licensed tradespeople and maintenance technicians working in mechanical assembly, HVAC equipment mounting, and structural fastening applications rely on this type of stud for secure, removable connections.

This double threaded stud is suited for use in mechanical assemblies where a component must be secured between two threaded engagements of unequal depth. Typical applications include equipment mounting, bracket attachment, and machinery assembly in both light industrial and commercial service environments. The black oxide finish helps reduce surface corrosion in moderate-exposure conditions. The flat-free design and standard M8 x 1.25 thread pattern make this a practical choice for general mechanical fastening work across a range of industries.

Key Features

• Unequal thread lengths: 20 mm long thread and 12 mm short thread for differentiated engagement depth
• M8 x 1.25 thread pitch on both ends for compatibility with standard metric fastening systems
• Carbon steel construction with material grade 5 for reliable mechanical strength
• Black oxide finish for moderate corrosion protection and reduced light reflection
• Thread Fit Class 50 ensures consistent thread engagement and fit tolerance
• 65 mm overall length suits a range of standard assembly stack-up requirements

Compatibility

Designed as a general-purpose metric double threaded stud for mechanical assemblies and equipment applications requiring an M8 x 1.25 thread pattern with unequal engagement lengths.

Installation Notes

Installation should be performed by a qualified mechanic or maintenance technician familiar with metric fastener standards. Before installation, ensure mating threaded components are clean and free of debris to protect thread integrity. Use an appropriate thread engagement tool or stud driver sized for M8 fasteners. Do not exceed the rated material grade loading for the stud or apply impact force that may damage the thread form.
