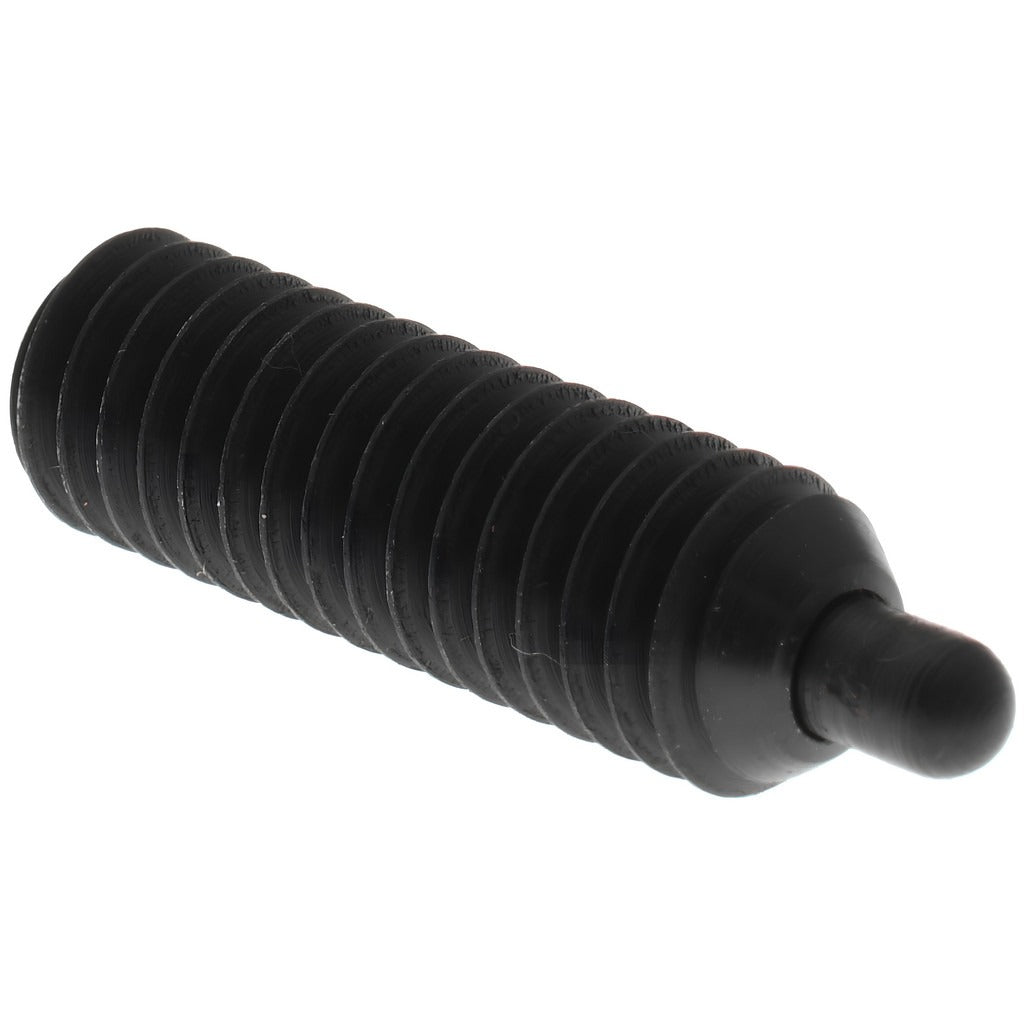

Gibraltar 57008XG Threaded Spring Plunger 5/16-18 Steel

Product Description

The GIBRALTAR 57008XG is a standard threaded spring plunger designed to index, locate, or apply repeatable pressure in mechanical assemblies. The plunger threads into a tapped hole using a 5/16-18 thread and delivers controlled end force through a spring-loaded steel nose. Initial end force is 3 pounds and final end force reaches 15 pounds, making it suitable for light-to-medium positioning and detent applications. The steel body and steel nose provide durability in industrial and machine-tool environments. Machinists, toolmakers, and mechanical assemblers install this type of component in fixtures, jigs, and production equipment.

This plunger is used in precision fixturing, workholding, and assembly tooling where repeatable positioning or spring-loaded retention is required. Its 1 inch thread length allows full engagement in standard-depth tapped holes. The 3/16 inch plunger projection provides the working stroke needed for most indexing and detent setups. No locking element is present, so the plunger can be threaded in and adjusted to depth using a 3/32 inch hex wrench before final positioning in the host component.

Key Features

• 5/16-18 thread for direct installation into standard tapped holes
• 3 pounds initial end force and 15 pounds final end force for reliable detent and positioning action
• Steel body and steel nose for durability in industrial tooling environments
• 3/16 inch plunger projection provides consistent working stroke
• Adjustable install depth via 3/32 inch hex drive - no locking element
• Standard plunger length type for common fixturing and jig applications

Compatibility

Designed as an OEM-style replacement or direct-install component for mechanical fixtures, jigs, workholding devices, and production tooling that accept a 5/16-18 threaded spring plunger with a 1 inch thread length.

Installation Notes
