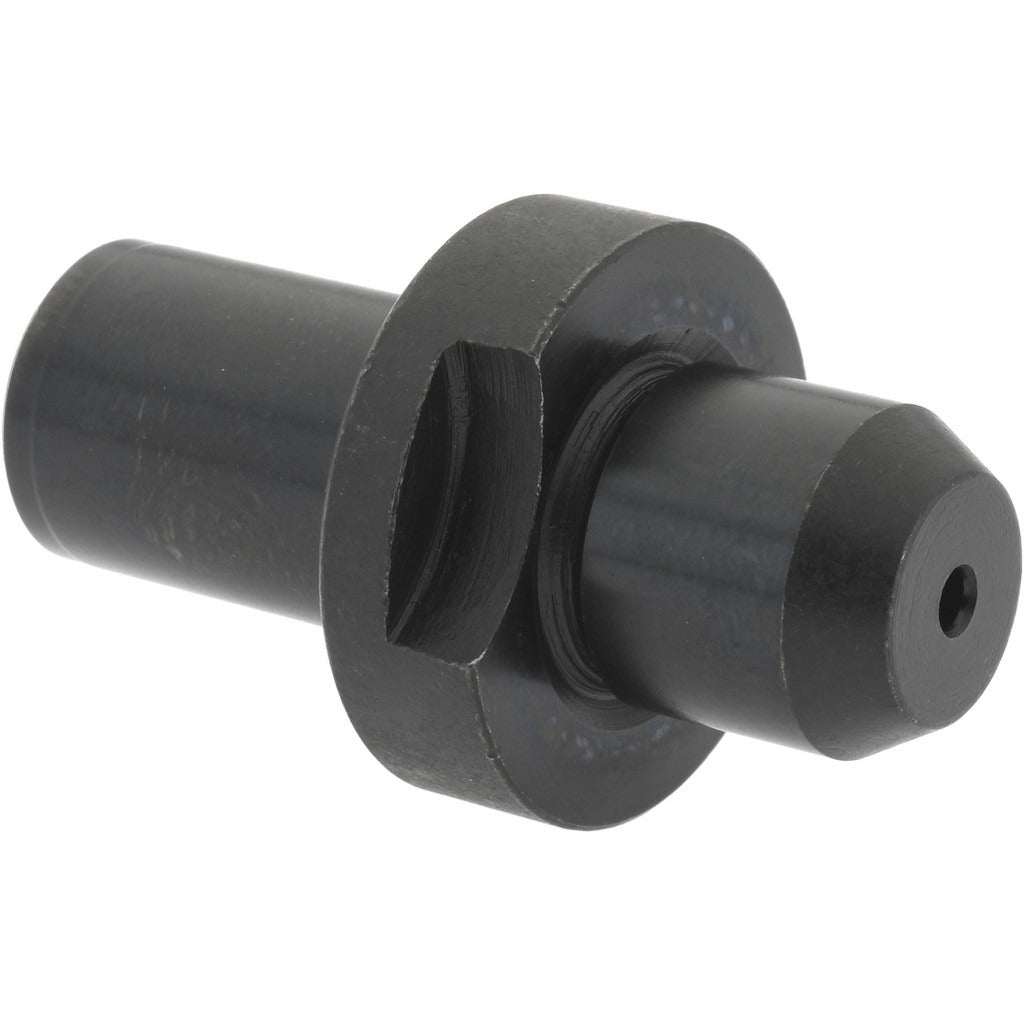

Gibraltar 49126G Slip Fit Round Straight Locating Pin

Product Description

The GIBRALTAR 49126G is a slip fit round straight locating pin machined from low carbon steel. It is designed to register, align, and secure workpieces or fixtures in machining, stamping, and assembly operations. The pin features a 0.499 inch nose diameter and a 0.5 inch nose length, with a 0.875 inch collar diameter providing a positive shoulder stop. Overall length is 1.5 inches. The tail diameter is 0.5 inches, and the chamfer length is 0.125 inches. Tolerance is held at plus 0.0000 inches for precise slip fit engagement. Machinists and toolmakers install this pin in jig plates, fixture bases, and die sets.

This locating pin is suited for use in production tooling, inspection fixtures, and machining jigs found in both job shop and high-volume manufacturing environments. It is a direct drop-in component for applications requiring consistent workpiece registration without press fit interference. The slip fit nose allows easy manual insertion and removal during part changeovers, making it well suited to repetitive fixture loading cycles.

Key Features

• 0.499 inch nose diameter with slip fit tolerance for easy insertion and removal
• Low carbon steel construction provides adequate hardness and machinability for general tooling use
• 0.875 inch collar diameter acts as a positive shoulder stop to control pin seating depth
• 0.125 inch chamfer length on nose aids alignment during insertion
• Compact 1.5 inch overall length fits standard jig plate thicknesses
• Non-relieved body design for full shank contact in the mounting bore

Compatibility

Designed as a standard slip fit locating pin for use in machining fixtures, stamping dies, and assembly jigs where a 0.499 inch nose diameter and 0.5 inch tail diameter are required.

Installation Notes

A licensed machinist or toolmaker should verify bore diameter and fit class before installation. Ensure the fixture plate or die block is fully de-energized and secured before inserting or removing the pin. The slip fit design does not require pressing; forcing the pin with a mallet may indicate a misaligned or undersized bore. Follow applicable shop standards and fixture design specifications for pin retention method.
