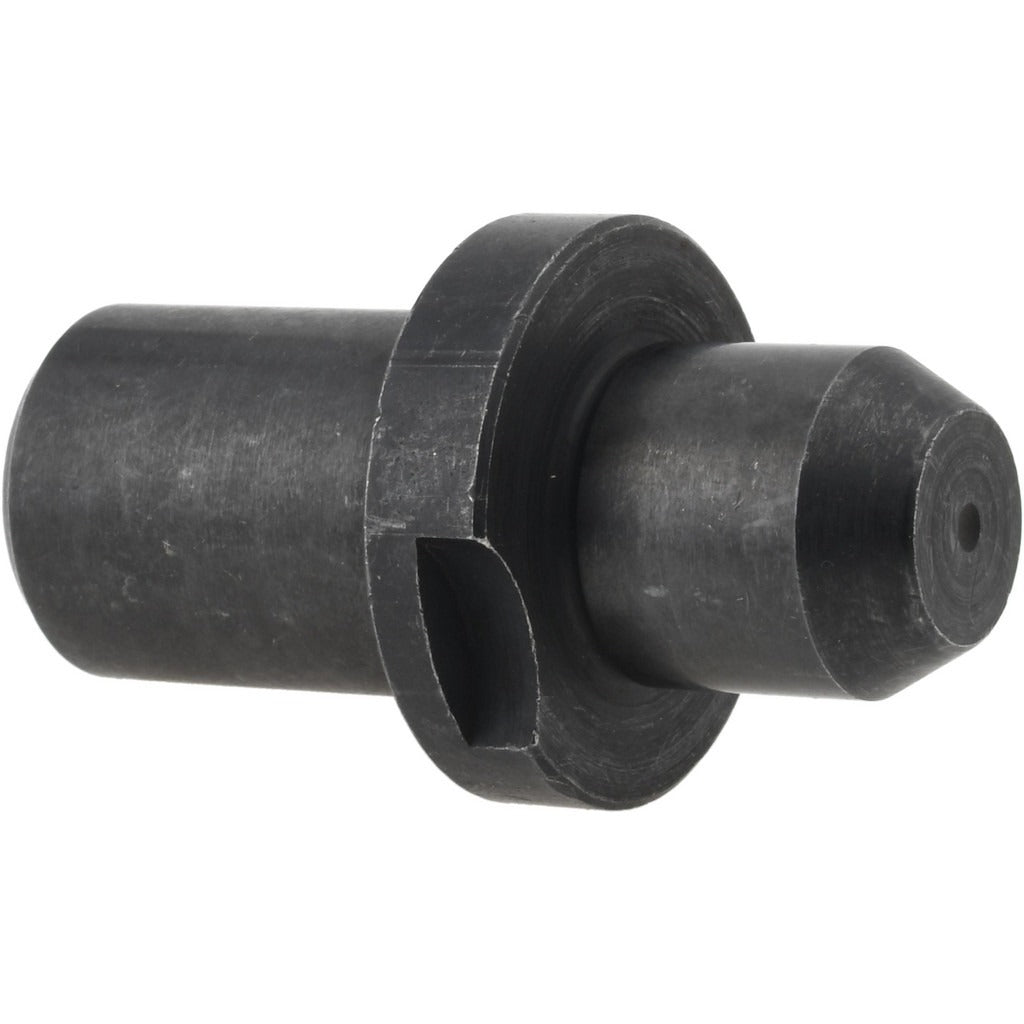

Gibraltar 49121G Slip Fit Round Straight Locating Pin

Product Description

The GIBRALTAR 49121G is a slip fit round straight locating pin used to precisely position and align workpieces in fixtures, jigs, and tooling setups. Machined from low-carbon steel, it features a 0.4209 inch nose diameter with a slip fit tolerance, allowing controlled insertion and removal without binding. The pin measures 1.5 inches overall length with a 0.5 inch nose length and a 0.5 inch tail diameter. Machinists, toolmakers, and fixture builders rely on this type of pin to maintain repeatable part location during machining, assembly, or inspection operations.

This locating pin is suited for use in precision workholding fixtures in metalworking, fabrication, and manufacturing environments. It is designed for setups where a slip fit is required for easy pin removal between cycles. The 0.875 inch collar diameter provides a positive seating surface against the fixture body, keeping the pin stable under lateral load. A 0.125 inch chamfer length on the nose aids entry into the mating locating hole.

Key Features

• Slip fit round nose profile for controlled, repeatable workpiece location
• Low-carbon steel construction provides adequate strength for typical fixture applications
• 0.4209 inch nose diameter with zero-plus tolerance for precise fit
• 0.875 inch collar diameter seats flush against fixture body
• 0.125 inch chamfer length on nose eases hole entry and reduces wear
• 1.5 inch overall length suits a wide range of fixture plate thicknesses

Compatibility

Designed as a standard-style slip fit locating pin for use in machining fixtures, assembly jigs, and inspection tooling where a 0.4209 inch nominal locating hole diameter is specified.

Installation Notes

Installation is typically performed by toolmakers or machinist-level trades during fixture build or maintenance. Ensure the mating locating hole is clean and free of burrs before inserting the pin. Press or hand-seat the pin to the collar face against the fixture body. Verify alignment and slip fit function before placing the fixture into production service.
