Gibraltar 40106MG Steel Step Block 2 Piece

Product Description

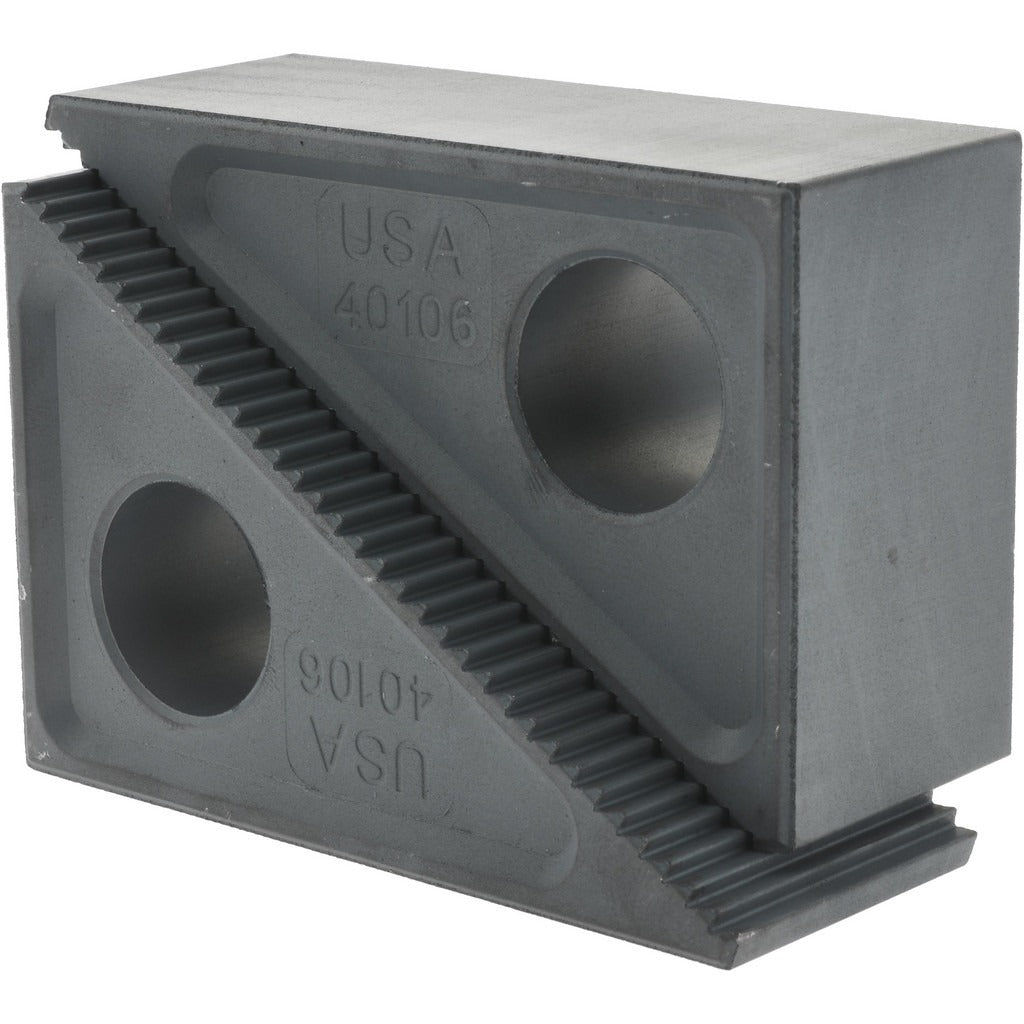

The GIBRALTAR 40106MG is a 2-piece steel step block designed for workholding and fixturing applications in machining and manufacturing environments. It provides a height adjustment range of 64 to 152 millimeters, giving machinists and tooling technicians a versatile solution for supporting workpieces at varying elevations on milling tables, drill presses, and similar setups. The block is constructed from steel for rigidity and durability under clamping loads. With a base depth of 3-3/4 inches and an overall width of 38 millimeters, it offers a stable footprint. The step depth measures 1/16 inches and step elevation is 1/8 inches per step, providing incremental positioning control.

This step block is suited for use in machine shops, tool rooms, and production environments where workpieces must be elevated and supported during milling, drilling, or boring operations. It is typically used in conjunction with T-slot clamps, strap clamps, and step bolts to secure parts to machine tables. The 2-piece configuration allows the block halves to be separated or stacked to achieve the needed support height within the 64 to 152 millimeter range.

Key Features

• Height adjustment range of 64 to 152 millimeters for versatile workpiece support
• 2-piece steel construction provides rigidity under clamping loads
• Base depth of 3-3/4 inches for stable footing on machine tables
• Overall width of 38 millimeters suits standard T-slot table setups
• 1/16 inch step depth and 1/8 inch step elevation for incremental height positioning

Compatibility

Designed as a standard workholding step block for use with T-slot clamping systems on milling machines, drill presses, and similar machine tool tables.

Installation Notes

Installation is performed by machinists or tooling technicians during workpiece setup. Always power down and lock out the machine before adjusting or repositioning the step block and clamping hardware. Ensure the block is fully seated on the machine table and that the mating step surfaces are engaged evenly before applying clamping force. Do not exceed the rated clamping load for the fastener and strap clamp combination in use.
