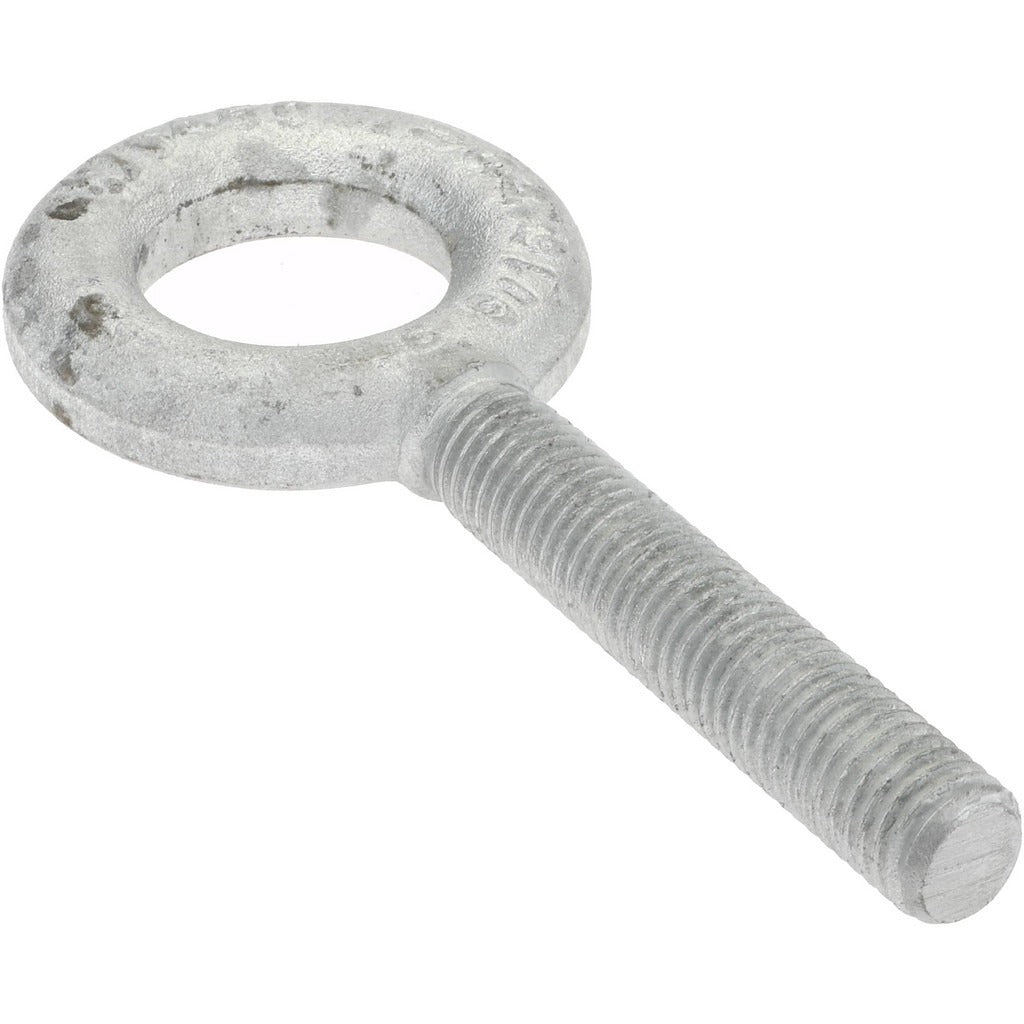

Gibraltar 26945 2 Fixed Lifting Eye Bolt 3200 Lb 9/16-12

Product Description

The GIBRALTAR 26945 2 is a fixed lifting eye bolt designed for overhead and rigging applications requiring a reliable, fully threaded fastener with no shoulder. Rated at 3,200 lb lifting capacity, it is machined from C-1035 grade steel and finished with a hot dipped galvanized coating for corrosion resistance. The 9/16-12 thread size and 3-inch fully threaded shank provide solid engagement in tapped holes or with a nut and washer setup. This hardware is installed by rigging professionals, millwrights, and industrial maintenance crews wherever a fixed-axis vertical lift point is needed.

This eye bolt is suited for use in industrial, commercial, and heavy-duty construction environments where a non-shouldered, fixed lifting point is appropriate. The fully threaded 3-inch shank allows maximum thread engagement depending on material thickness. It is commonly used in steel fabrication, equipment rigging, and structural lifting setups. Because this is a fixed-type eye bolt without a shoulder, it is intended for in-line vertical loading only and should not be used for angular or side-pull rigging configurations.

Key Features

• 3,200 lb rated lifting capacity for vertical in-line loads
• Fully threaded 3-inch shank for maximum thread engagement flexibility
• 9/16-12 UNC thread size for compatibility with standard tapped holes and hardware
• C-1035 grade steel construction for strength and durability
• Hot dipped galvanized finish for corrosion resistance in outdoor or damp environments
• Without-shoulder design for applications where a flush or minimal-profile base is required

Compatibility

Designed as an OEM-style fixed lifting eye bolt for use with standard 9/16-12 UNC tapped holes or with matching nuts and washers in industrial rigging and lifting assemblies.

Installation Notes

Installation should be performed by a qualified rigger or maintenance professional familiar with applicable ASME B30 rigging standards. Ensure the tapped hole provides sufficient thread engagement for the full load rating before use. This fixed eye bolt is rated for vertical in-line loads only — do not use for angled, angular, or side-pull loading, which requires a shouldered swivel eye bolt. Inspect threads and the eye for deformation or corrosion before each use.
