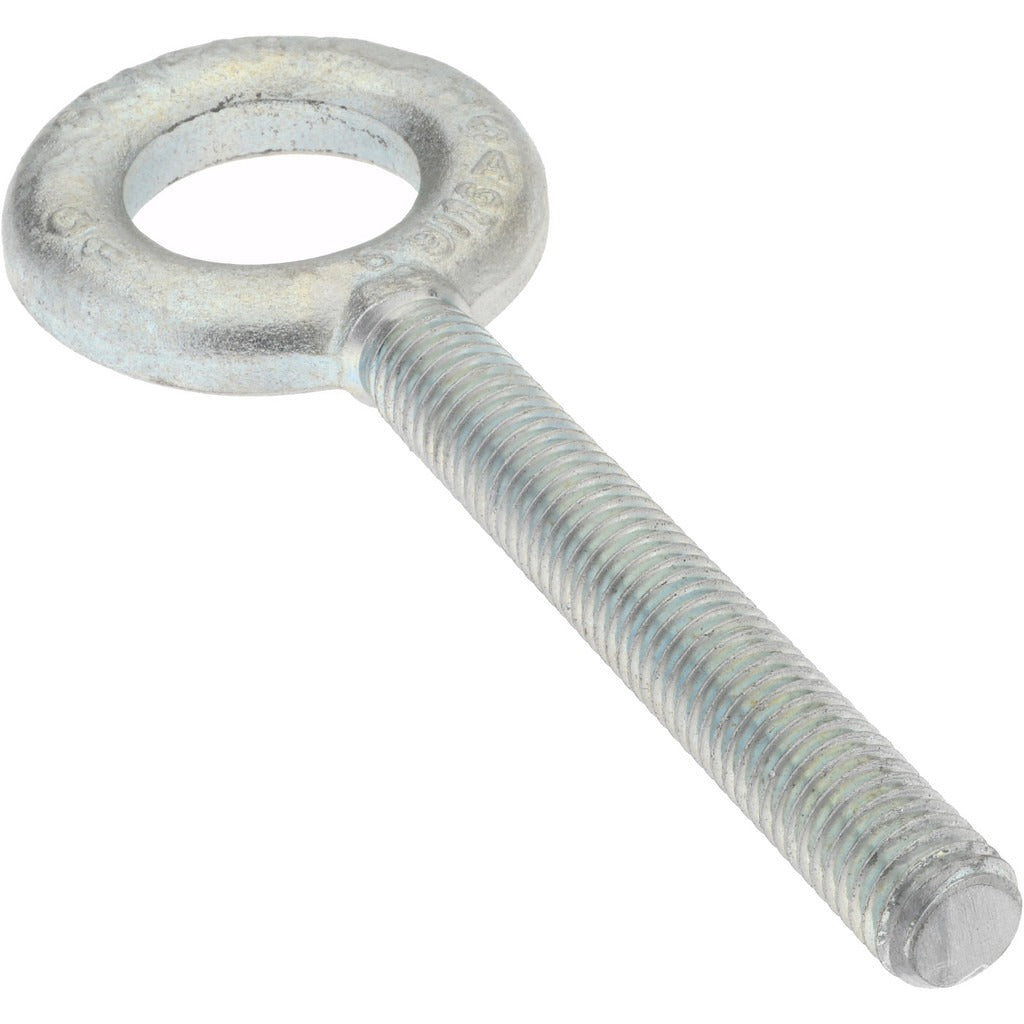

Gibraltar 26781 6 Fixed Lifting Eye Bolt 3200 Lb

Product Description

The GIBRALTAR 26781 6 is a fixed lifting eye bolt designed for overhead lifting and rigging applications in industrial and construction environments. Manufactured from C-1035 grade steel with a zinc-plated finish, it carries a rated lifting capacity of 3,200 lb. The shank is fully threaded at a 9/16-12 thread size over a 4-inch length, providing secure engagement across a range of structural thicknesses. This bolt is a shoulderless design, intended for in-line vertical loads only. Installation is performed by maintenance mechanics, riggers, and millwrights working within rated load guidelines.

This eye bolt is suited for use in manufacturing facilities, warehouses, machinery moving, and structural rigging where a fixed anchor point is required. The 9/16-12 thread size fits standard tapped holes in steel plate, beams, and heavy equipment frames. The zinc-plated finish provides basic corrosion resistance for indoor and sheltered outdoor environments. It is sold individually and is appropriate wherever a compact, fully threaded fixed eye bolt is required for vertical load attachment points.

Key Features

• 3,200 lb rated lifting capacity for vertical in-line loads
• Fully threaded 4-inch shank with 9/16-12 thread size
• C-1035 grade steel construction for strength and durability
• Zinc-plated finish for basic corrosion resistance
• Shoulderless design — rated for vertical loads only, not angular loading
• Eye inside diameter of 1-9/32 inches accommodates standard hooks and shackles

Compatibility

Designed for use in standard tapped 9/16-12 threaded holes in steel structures, machinery frames, and load-bearing assemblies requiring a fixed vertical rigging point.

Installation Notes

Installation should be performed by qualified riggers or maintenance mechanics following applicable ASME B30.26 rigging hardware standards. Thread the bolt fully into a properly tapped hole and ensure the eye is fully seated and torqued before applying any load. Because this is a shoulderless eye bolt, it must be used for straight vertical pulls only — angular loading is not rated and creates a risk of failure. Always inspect threads and the eye for deformation or damage before each use.
