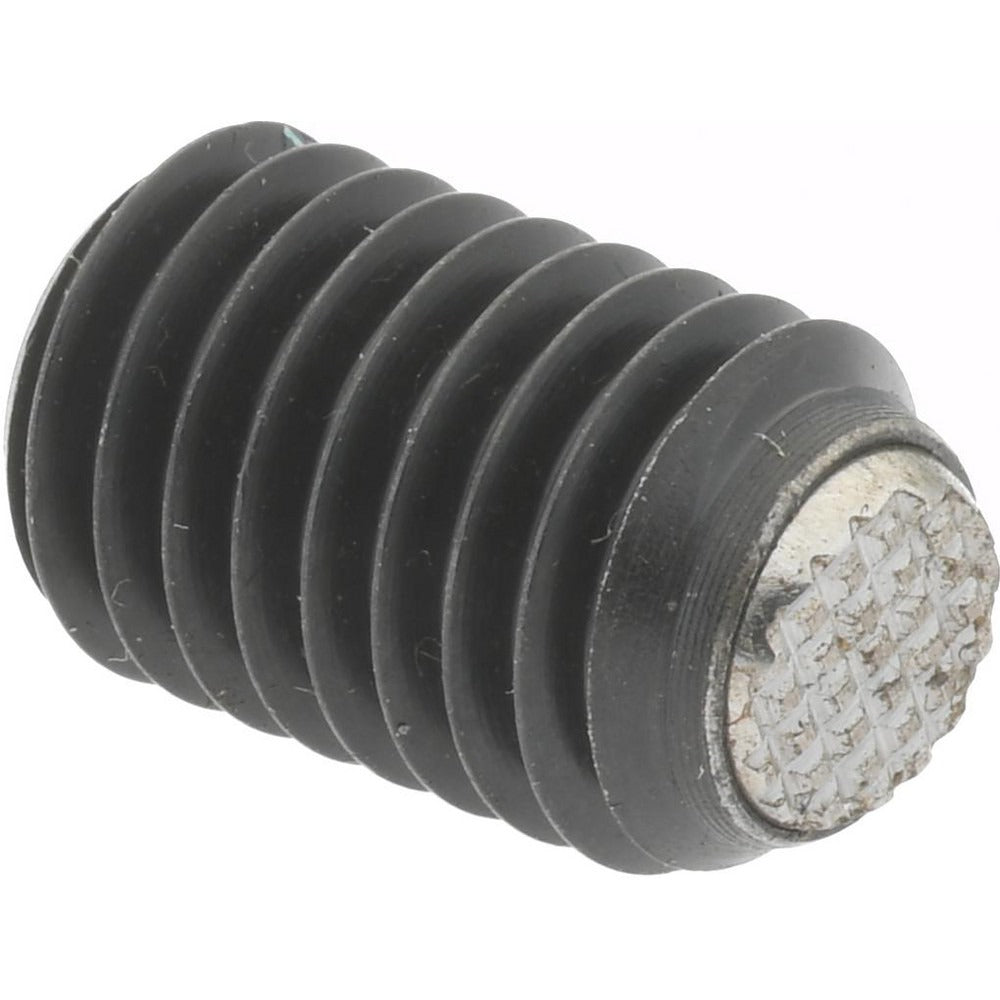

Gibraltar 22720.0902 Ball End Clamping Screw M10

Product Description

The GIBRALTAR 22720.0902 is a headless, ridged flat face ball end clamping screw used to apply precise clamping force in workholding fixtures, jigs, and tooling setups. Manufactured from steel throughout, this screw features a 7mm ball diameter and an overall length of 16mm, with an M10 thread size. It is driven by a 5mm hex key and is rated for a maximum load capacity of 4,496 pounds. Licensed HVAC and machine-tool technicians, fixture builders, and toolroom machinists select this style of clamping screw when a headless, low-profile fastener with positive ball contact is required in tight or recessed clamping locations.

This clamping screw is suited for use in precision workholding applications including modular fixturing systems, vise jaws, tombstone fixtures, and custom tooling plates. The ridged flat face ball end design provides consistent contact and resists rotation during tightening, making it appropriate for both production and prototype machining environments. It is sold individually, making it a practical replacement or addition to existing fixture hardware.

Key Features

• Headless design allows flush or below-surface installation in recessed fixture bodies
• Ridged flat face ball end resists rotation and maintains consistent contact during clamping
• M10 thread size with 5mm hex key drive for precise torque application
• 4,496 lb maximum load capacity for demanding workholding applications
• Full steel construction on both screw body and ball end for durability in shop environments
• Compact 16mm overall length suits tight fixture geometries

Compatibility

Designed as a direct-fit replacement or supplemental component for M10-threaded workholding fixtures, modular fixturing systems, and tooling plates requiring a headless ridged flat face ball end clamping screw.

Installation Notes

Installation is performed by toolroom machinists or fixture builders using a 5mm hex key. Ensure the mating threaded bore is clean and free of debris before threading the screw in. Do not exceed the rated maximum load capacity of 4,496 lb. Follow applicable shop safety procedures and fixture design guidelines when integrating clamping hardware into production fixturing.
