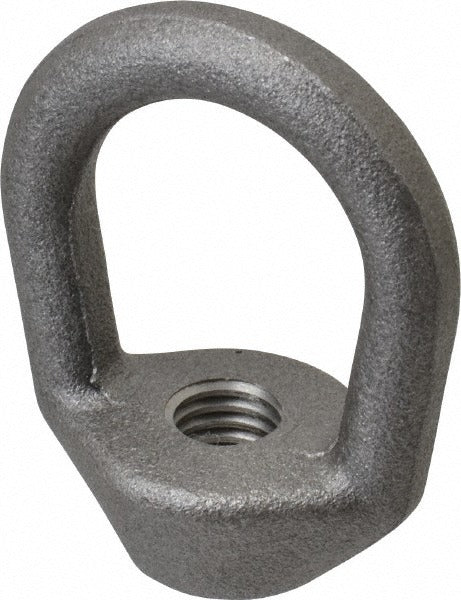

Gibraltar 16275 3 Lifting Eye Nut 2240 Lb 1/2-13 Carbon Steel

Product Description

The GIBRALTAR 16275 3 is a regular-duty carbon steel lifting eye nut designed for rigging, hoisting, and load-securing applications. Rated at 2,240 pounds capacity, it features a 1/2-13 threaded base that accepts standard bolts and threaded rod. The eye provides an anchor point for hooks, shackles, and lifting slings. Finished in a self-colored surface treatment, this Grade C-1030 carbon steel nut is suited for industrial, mechanical, and construction environments where a reliable, bolt-on lift point is required. Installation is straightforward and does not require special tooling beyond standard wrenches.

This lifting eye nut fits applications where a threaded fastener lift point is needed on structural assemblies, machinery, or equipment frames. The 1/2-13 thread size is common across industrial hardware, making this nut compatible with widely available fastener stock. At 2,240 pounds working load capacity, it is appropriate for regular-duty lifts in shop, warehouse, and field environments. It is typically installed by millwrights, rigging crews, maintenance mechanics, or general contractors handling equipment positioning and machinery relocation tasks.

Key Features

• 2,240 lb rated lifting capacity for regular-duty hoisting applications
• 1/2-13 thread size fits standard bolts and threaded rod
• Grade C-1030 carbon steel construction for strength and durability
• Self-colored finish suitable for industrial environments
• 2 inch outside eye diameter accommodates standard hooks and shackles
• 2 inch bell/base width provides stable seating on mating surfaces

Compatibility

Designed as an OEM-style replacement or direct-install lifting eye nut for applications using 1/2-13 threaded fasteners in regular-duty rigging and equipment-handling setups.

Installation Notes

Installation should be performed by qualified rigging or maintenance personnel familiar with applicable ASME B30 or OSHA rigging standards. Thread the eye nut fully onto a properly rated 1/2-13 bolt or stud and torque to the fastener manufacturer's specification for the thread class in use. Never side-load the eye beyond its rated angle without a de-rated capacity calculation. Inspect the eye nut for cracks, deformation, or thread damage before each use and remove from service if any defect is found.
