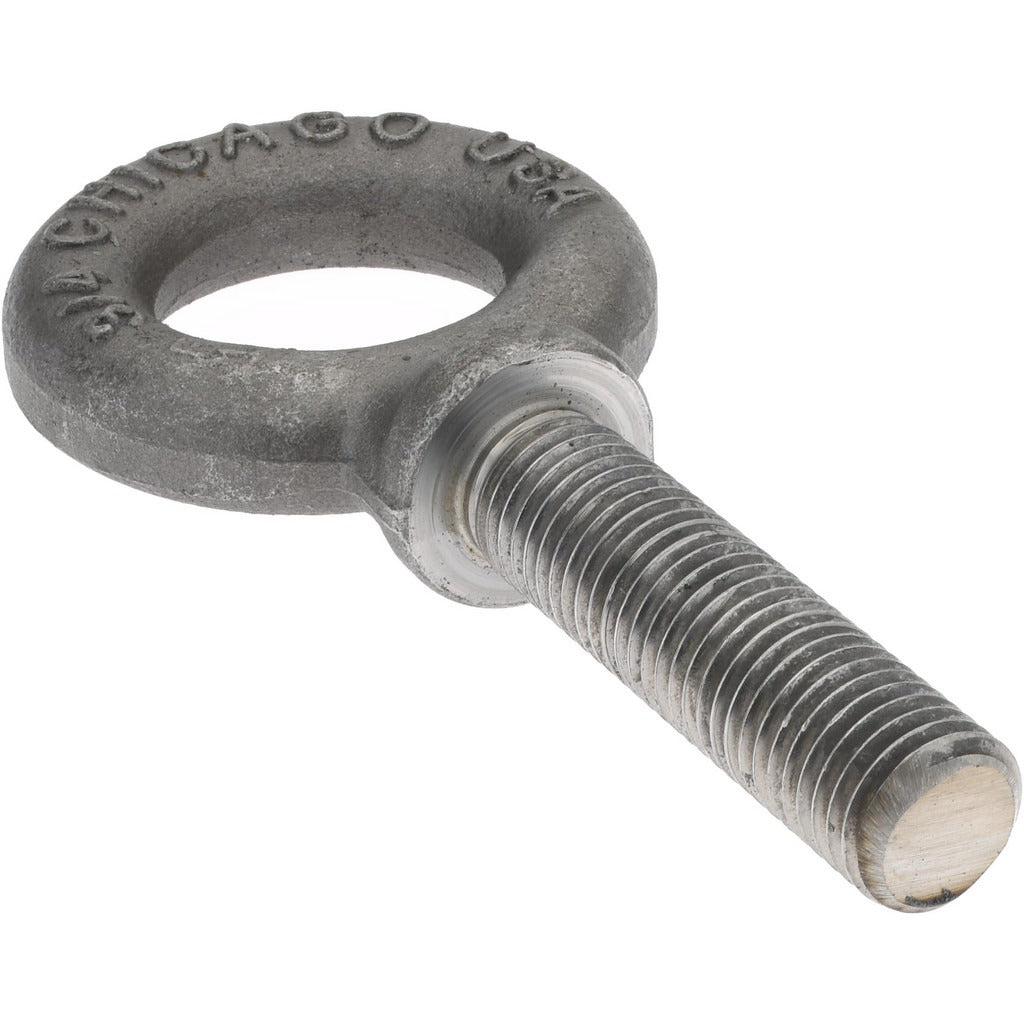

Gibraltar 12951 0 Fixed Shoulder Eye Bolt 6000 Lb

Product Description

The GIBRALTAR 12951 0 is a fixed lifting eye bolt with shoulder, designed for overhead lifting applications in industrial, construction, and rigging environments. Manufactured from grade C-1035 forged steel, this eye bolt delivers a rated lifting capacity of 6,000 pounds on a 3/4-10 thread. The shouldered base provides a firm, flush bearing surface against the workpiece, which is required for angular load applications. The shank is fully threaded at 3 inches, allowing secure engagement through a range of material thicknesses. Licensed riggers, millwrights, and maintenance technicians typically install this hardware as part of a rated lifting assembly.

This eye bolt is suited for use in structural steel, heavy equipment, precast concrete, and machinery rigging scenarios where a permanent or semi-permanent lift point is needed. The fixed design — as opposed to a swivel eye bolt — is intended for straight vertical pulls. Angular loading must be de-rated per applicable rigging standards. The 1-1/2 inch inside eye diameter accommodates standard shackles and hooks used in most commercial rigging setups.

Key Features

• 6,000 lb rated lifting capacity for straight vertical pulls
• Shoulder design provides flush bearing surface and supports angular load de-rating per rigging standards
• Grade C-1035 forged steel construction for strength and toughness
• Fully threaded 3-inch shank on a 3/4-10 thread for secure engagement
• 1-1/2 inch inside eye diameter fits standard rigging hooks and shackles
• Inch measurement system; sold individually

Compatibility

Designed as a standard shouldered fixed eye bolt for use with 3/4-10 threaded holes or fastener assemblies in industrial lifting and rigging applications requiring a rated lift point.

Installation Notes

Installation should be performed by a qualified rigger or maintenance technician following applicable ASME B30.26 and OSHA rigging standards. Torque the eye bolt fully so the shoulder seats flush and square against the bearing surface before any load is applied — a gap between the shoulder and the surface reduces rated capacity. For straight vertical lifts only; angular loads require capacity de-rating per the manufacturer rigging chart. Inspect the eye bolt for cracks, deformation, or thread damage before each use and remove from service if any defects are found.
