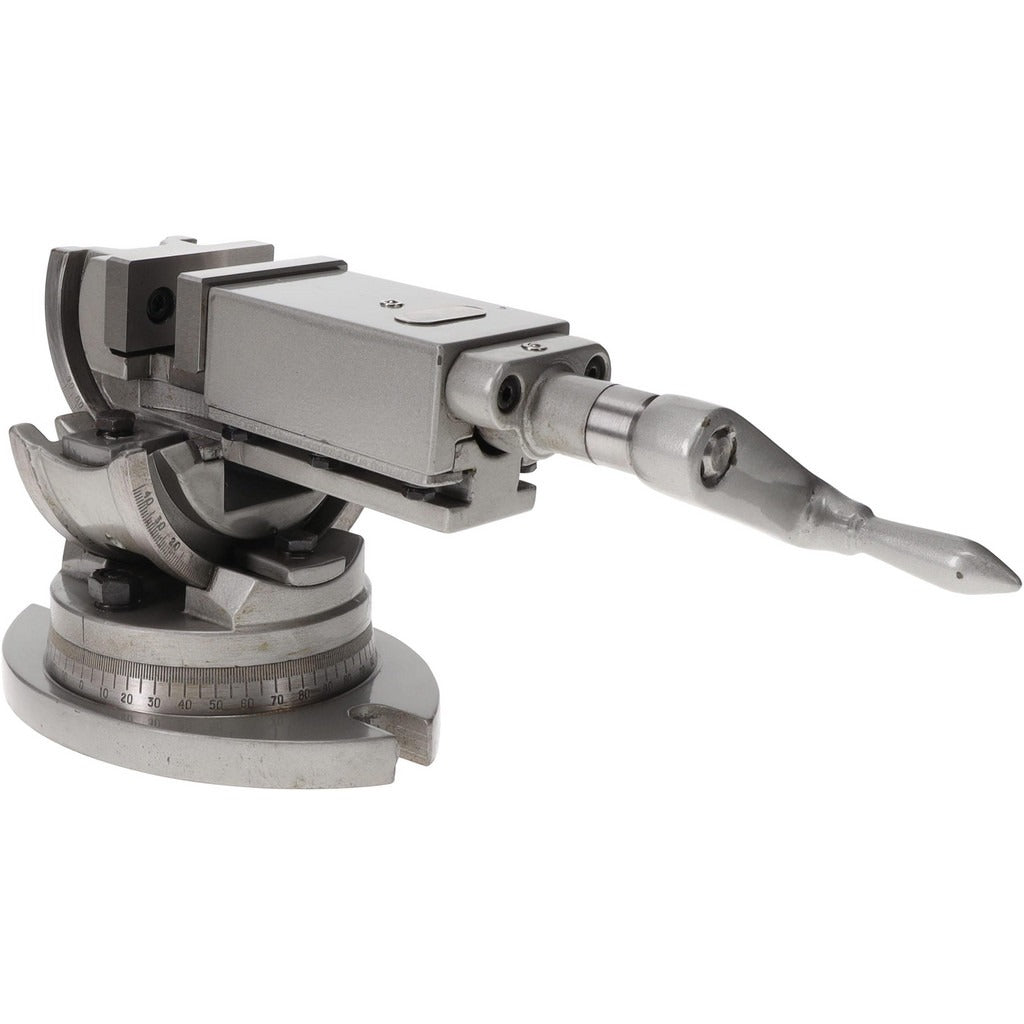

Gibraltar 110050 Machine Vise 2 Inch 3-way Angle Swivel Base

Product Description

The GIBRALTAR 110050 is a manual machine vise designed for use on milling machines, drill presses, and similar machining equipment. It features a 2-inch jaw width with a 2-inch jaw opening and a 3-way angle orientation, allowing the workpiece to be positioned at multiple angles for complex machining operations. The swivel base adds rotational flexibility at the workstation. The vise body is constructed from cast iron with steel jaws, delivering the rigidity and mass needed to hold workpieces firmly under cutting loads. This is a single-station vise intended for precision work in machine shops, maintenance facilities, and toolroom environments.

The 110050 is suited for light to medium-duty machining tasks where accurate workpiece positioning is critical. The 3-way angle capability makes it particularly useful for angular drilling, milling, and finishing operations where a fixed-angle vise would require repeated repositioning. The swivel base allows the operator to rotate the vise on the machine table without unclamping and re-indicating the setup. With a throat depth of 1 inch and an overall length of 8 inches, it fits standard benchtop milling and drilling setups in both production and job-shop environments.

Key Features

• 2-inch jaw width and 2-inch jaw opening for compact, precise workholding
• 3-way angle orientation enables angular setups without repositioning the machine table
• Swivel base allows full rotational adjustment on the machine table
• Cast iron vise body provides rigidity and vibration damping under machining loads
• Steel jaws offer durability and resistance to wear during repeated clamping cycles
• Precision-grade construction suitable for accurate machining applications

Compatibility

Designed as an OEM-style replacement or direct-fit workholding vise for standard benchtop milling machines and drill presses requiring a 2-inch jaw, 3-way angle swivel vise.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. Before mounting, ensure the machine table T-slots are clean and free of chips. Secure the vise to the machine table using appropriate T-bolts and nuts rated for the table slot size. Verify the vise is properly indicated and trammed before beginning any machining operation to ensure workpiece accuracy and operator safety.
