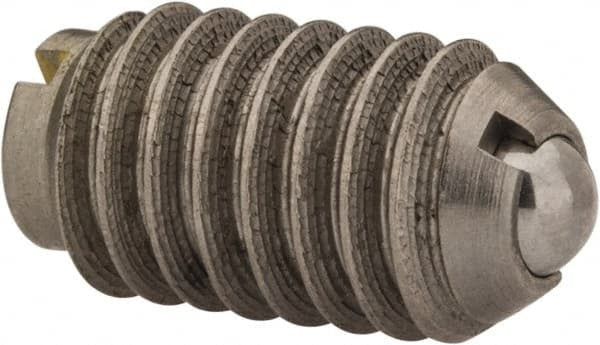

Gibraltar 10109-G Threaded Ball Plunger (5/16-18 Thread)

Product Description

The Gibraltar 10109-G is a threaded ball plunger with a stainless steel body and stainless steel ball, featuring a 5/16-18 thread, 0.1560 in ball diameter, and a 0.5781 in body length. It provides a 6 lb initial end force and 17 lb final end force, with a maximum ball reach of 0.0400 in and includes a locking element for secure positioning. It is used for locating and positioning applications as a spring-loaded device.

• Stainless steel body and ball; thread size 5/16-18; ball diameter 0.1560 in; body length 37/64 in (0.5781 in).
• Initial end force 6 lb and final end force 17 lb; maximum ball reach 0.0400 in.

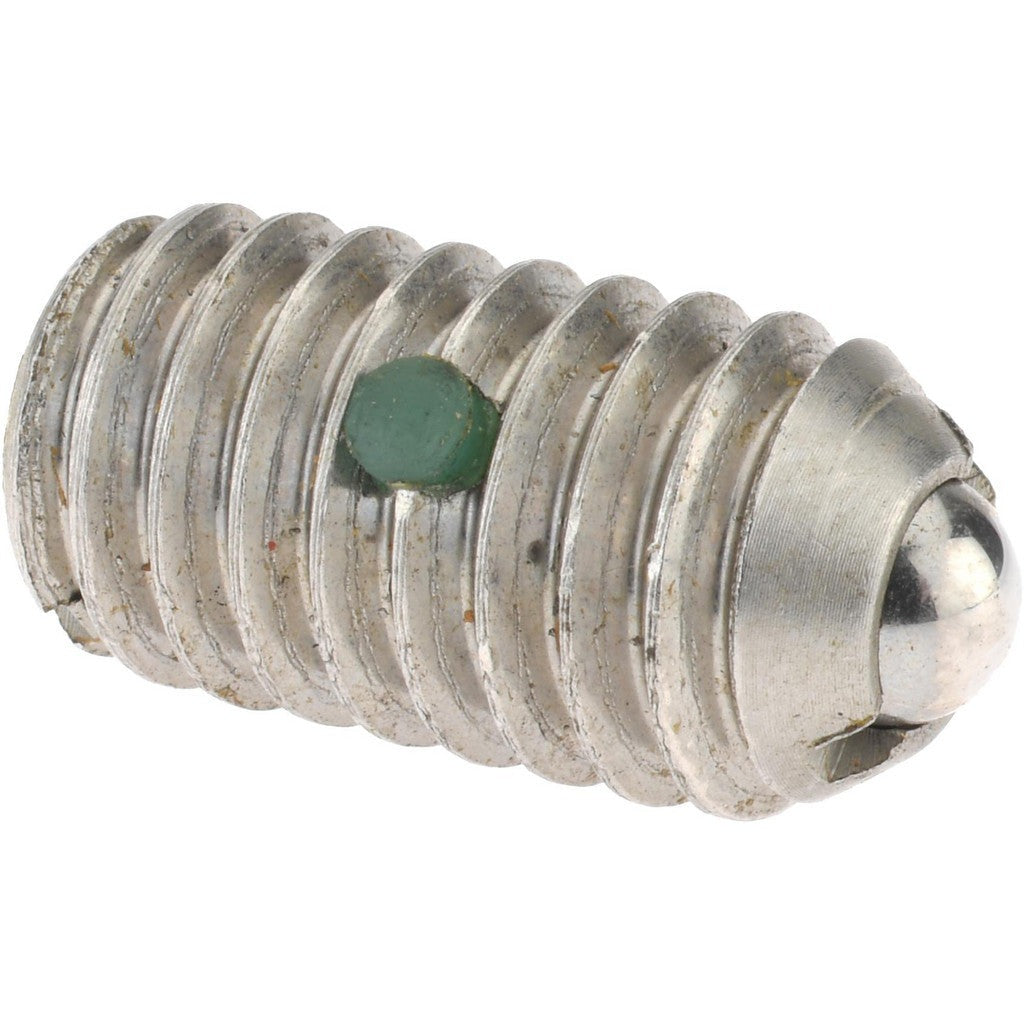

• Includes locking element; intended for locating and positioning as a spring-loaded device.

Product Highlights

Stainless steel threaded ball plunger, 5/16-18 thread, 0.1560 in ball, 6 lb initial / 17 lb final end force, 0.0400 in max reach, locking element

Product Information

Standard Information

• Brand: GIBRALTAR
• Manufacturer Part Number: 10109-G
• Country of Origin: United States
