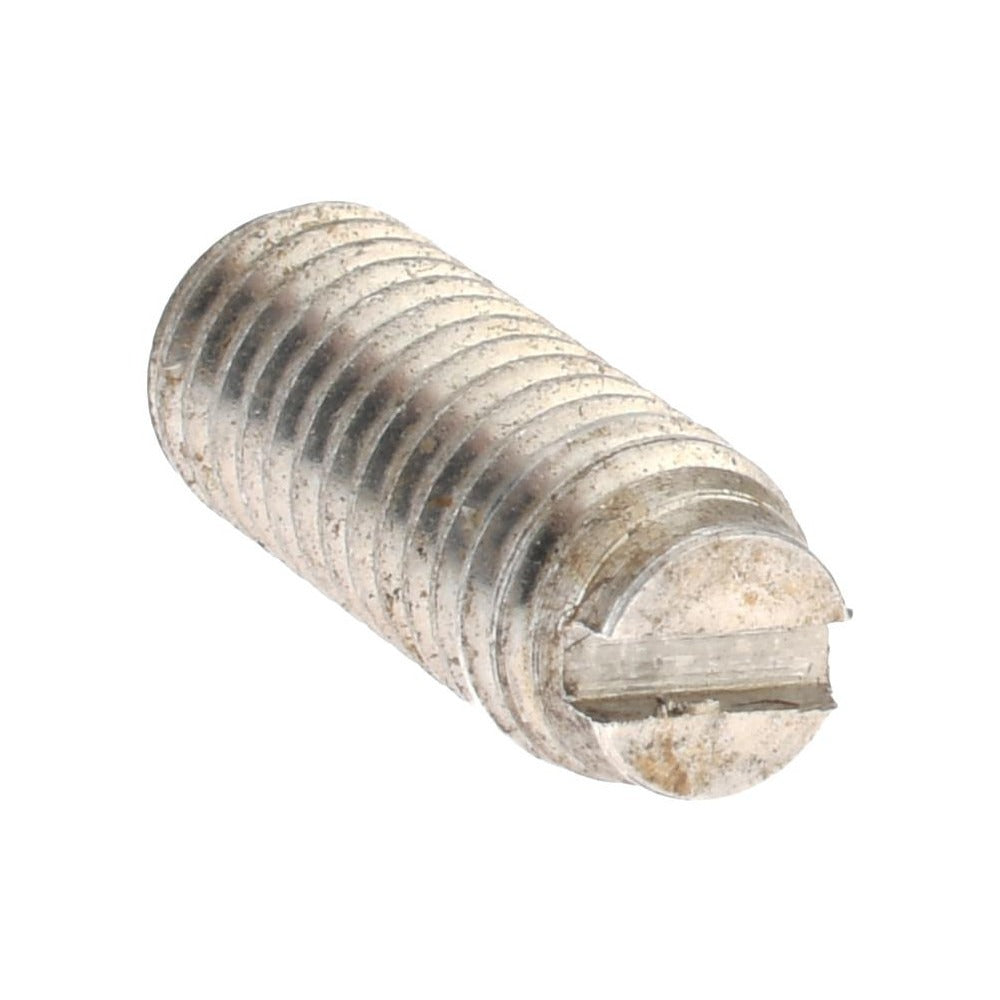

Gibraltar 10103P-G Threaded Ball Plunger 10-32 Stainless Steel

Product Description

The GIBRALTAR 10103P-G is a threaded ball plunger designed for indexing, positioning, and light-duty detent applications in mechanical assemblies. It features a 10-32 threaded body machined from stainless steel, with a stainless steel ball measuring 0.093 inches in diameter. The ball extends a maximum of 0.025 inches beyond the body face, delivering 2 pounds of initial end force and 5 pounds of final end force. The body length is 0.5156 inches (33/64 inches). This part is installed by machinists, maintenance technicians, and mechanical assemblers working on precision components and fixtures.

This ball plunger is suited for applications requiring repeatable positioning, soft-stop detent action, or spring-loaded contact points in jigs, fixtures, sliding mechanisms, and tooling assemblies. The 10-32 thread allows direct installation into tapped holes in metal or plastic housings. The stainless steel construction makes it appropriate for environments where corrosion resistance or cleanliness is a consideration, such as food-grade equipment, wet environments, or light industrial machinery.

Key Features

• 10-32 threaded body for direct installation into standard tapped holes
• Stainless steel body and ball for corrosion resistance
• 0.093 inch ball diameter with 0.025 inch maximum ball reach
• 2 pound initial end force and 5 pound final end force for controlled detent action
• Compact body length of 0.5156 inches suits tight-clearance assemblies
• No locking element — allows for straightforward installation and removal

Compatibility

Designed as a standard threaded ball plunger for use in any application requiring a 10-32 tapped hole and a spring-loaded stainless steel ball detent.

Installation Notes

Installation requires a properly tapped 10-32 hole in the mating component. Use an appropriate driver or hex key as needed for the body style and torque to the assembly requirement without over-tightening, which can deform the plunger body. Ensure the ball travel path is clear of debris before final assembly. No power shutoff is required, but follow standard lockout procedures if installing in powered machinery.
