Gibraltar 10101-G Threaded Ball Plunger 10-32 Stainless Steel

Product Description

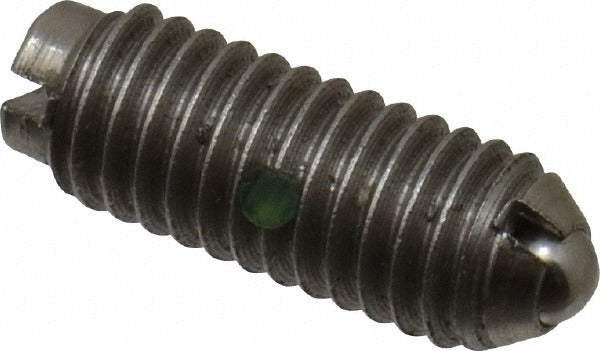

The GIBRALTAR 10101-G is a threaded ball plunger designed for indexing, positioning, and light detent applications in mechanical assemblies. It features a 10-32 threaded body machined from stainless steel, with a stainless steel ball measuring 0.093 inches in diameter. The ball extends a maximum of 0.025 inches beyond the body face. Initial end force is 0.5 pounds and final end force is 1.5 pounds. A locking element is integrated into the body to secure the plunger in the threaded hole after installation. The body length is 0.516 inches. This component is installed by machinists, maintenance technicians, and mechanical assemblers working on fixtures, jigs, and precision equipment.

The GIBRALTAR 10101-G suits applications where a small, spring-loaded detent is needed to hold a sliding or rotating component in a defined position. The stainless steel construction makes it appropriate for use in corrosive or wash-down environments. The 10-32 thread size fits standard tapped holes in aluminum, steel, and plastic panels. The purple color code provides quick visual identification during assembly. Typical install scenarios include tool fixtures, slide mechanisms, and equipment enclosures requiring repeatable positional feedback.

Key Features

• 10-32 threaded body for installation into standard tapped holes
• Stainless steel body and ball for corrosion resistance
• 0.093 inch ball diameter with 0.025 inch maximum ball reach
• 0.5 pound initial end force and 1.5 pound final end force for light detent duty
• Integrated locking element secures plunger position after installation
• Purple color code for fast visual identification during assembly

Compatibility

Designed as a standard 10-32 threaded ball plunger suitable for tapped holes in metal, plastic, or composite assemblies requiring a spring-loaded detent or indexing point.

Installation Notes

Installation requires a properly tapped 10-32 hole and a hex key or screwdriver appropriate to the drive type. Engage the locking element by tightening to manufacturer specification after positioning the plunger at the desired depth. Avoid over-torquing, which can distort the locking element or damage the threaded bore. De-energize or immobilize any moving assembly before servicing or replacing the plunger.
